2024 Kawasaki KLX230R S Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2024 Kawasaki KLX230R S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

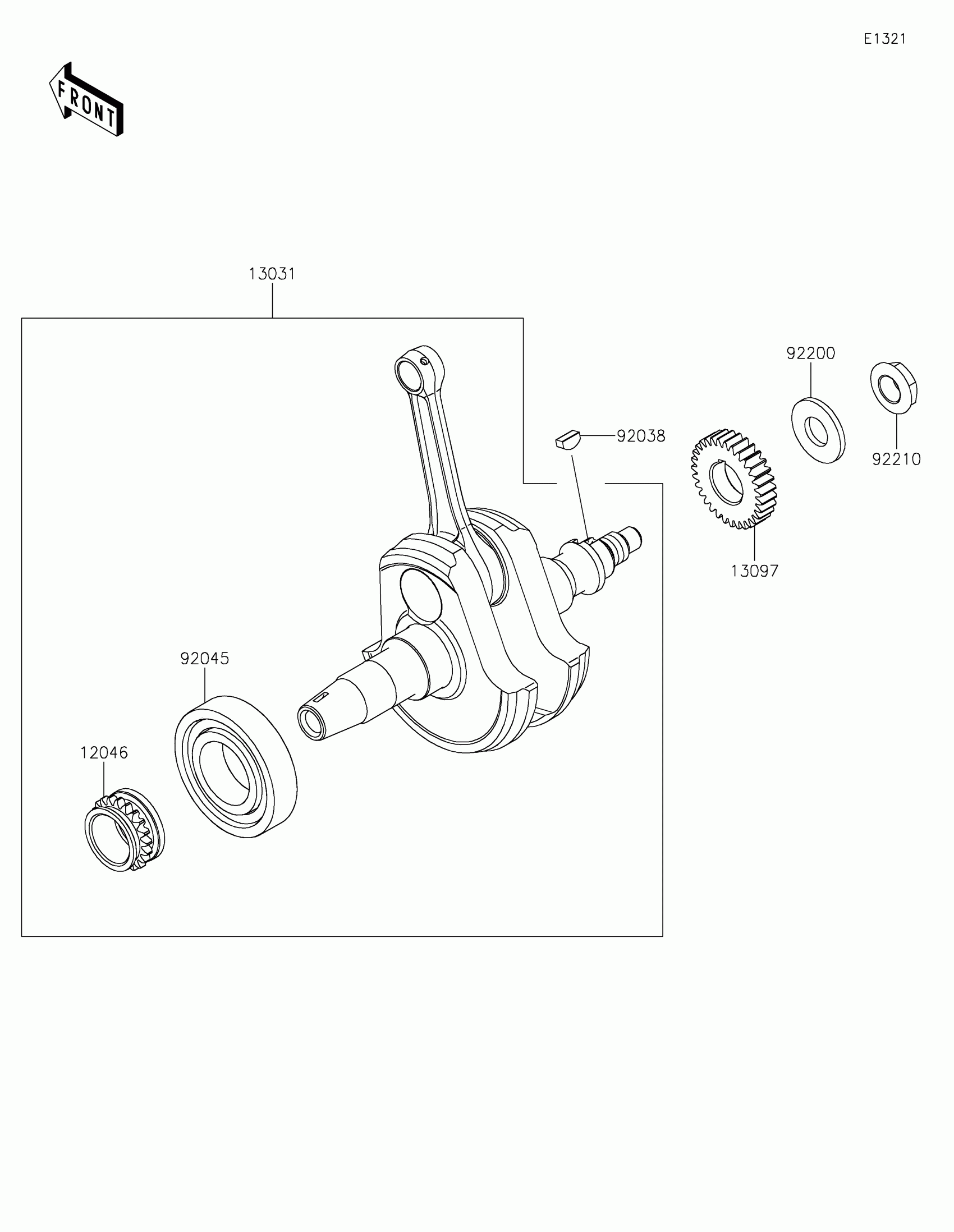

2024 Kawasaki KLX230R S Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,21T

12046-0613

1
Out of stock

13031

CRANKSHAFT-COMP

13031-0909

1
Out of stock

13097

GEAR-PRIMARY SPUR,31T

13097-0603

1
Out of stock

92038

KEY

92038-1057

1
Out of stock

92045

BEARING-BALL,6207CS17

92045-0906

1
Out of stock

92200

WASHER,16.3X35X3.2

92200-0119

1
Out of stock

92210

NUT,16MM

92210-1538

1
Out of stock
