Description

Price

39137A

STAY-COMP,RH,P.SILVER

39137-0706-458

$112.62

39137B

STAY-COMP,LH,P.SILVER

39137-0732-458

$94.72

49089

SHROUD-ENGINE,LH,L.GREEN

49089-0957-290

$57.34

49089A

SHROUD-ENGINE,LH,B.GRAY

49089-0957-67A

$53.47

49089B

SHROUD-ENGINE,RH,L.GREEN

49089-0958-290

$57.34

49089C

SHROUD-ENGINE,RH,B.GRAY

49089-0958-67A

$53.47

58029

PLATE-NUMBER,B.WHITE

58029-0005-266

$86.71

58029A

PLATE-NUMBER,L.GREEN

58029-0005-290

$86.71

58029B

PLATE-NUMBER,B.GRAY

58029-0005-67A

$86.71

92153

BOLT,FLANGED,6X12

92153-1283

$2.41

92154

BOLT,FLANGED,6X9

92154-0546

$3.74

92154A

BOLT,FLANGED,6X14

92154-1231

$2.97

92154B

BOLT-FLANGED,6X70

92154-4093

$4.85

92161

DAMPER,8X22X10

92161-1685

$0.88

92161A

DAMPER,70X15X6

92161-1838

$3.21

92210

NUT,6MM

92210-0218

$2.55

92210A

NUT

92210-1771

$21.84

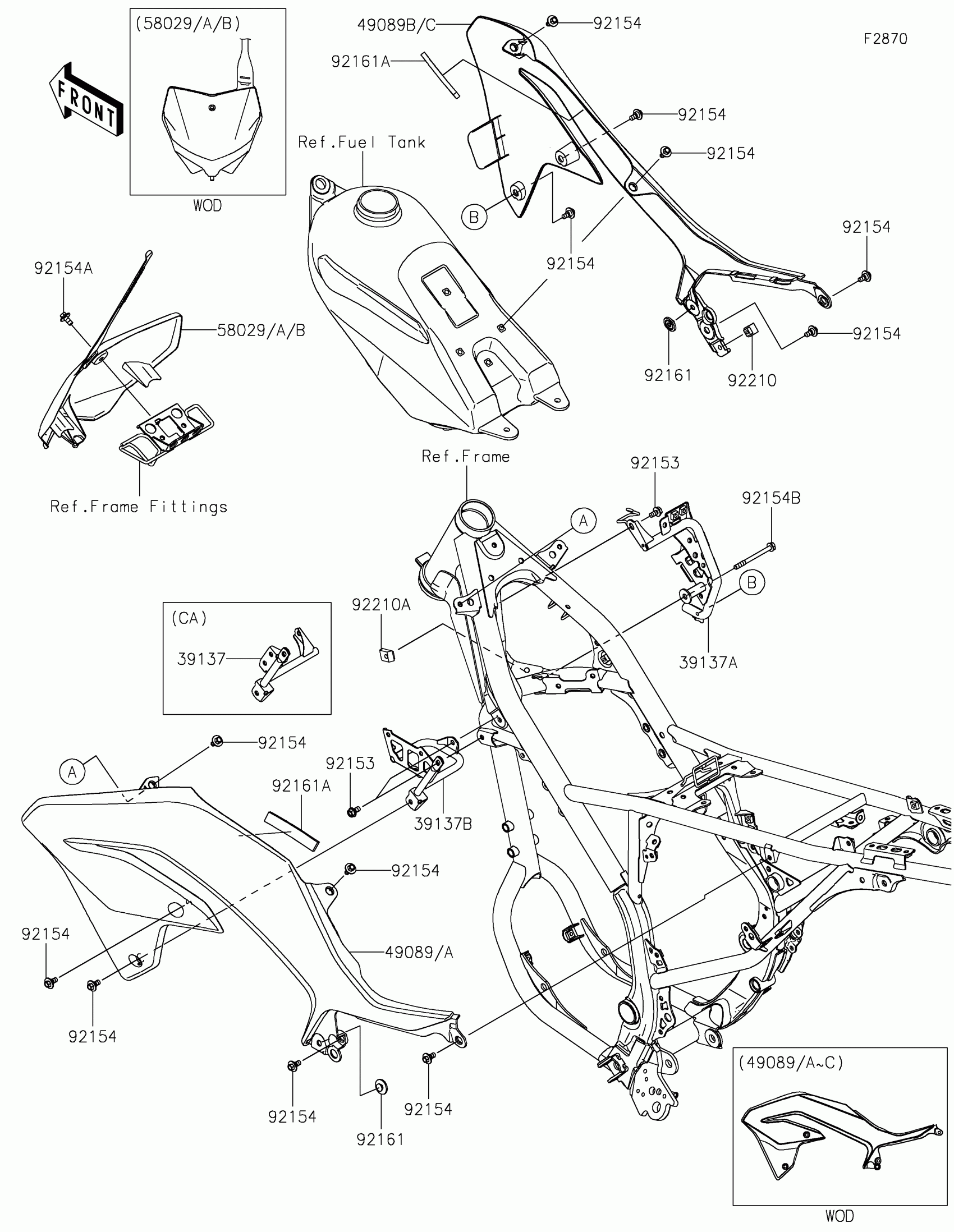

Kawasaki KLX230R S Cowling Diagram

STAY-COMP,RH,P.SILVER

STAY-COMP,LH,P.SILVER

SHROUD-ENGINE,LH,L.GREEN

SHROUD-ENGINE,LH,B.GRAY

SHROUD-ENGINE,RH,L.GREEN

SHROUD-ENGINE,RH,B.GRAY

PLATE-NUMBER,B.WHITE

PLATE-NUMBER,L.GREEN

PLATE-NUMBER,B.GRAY

BOLT,FLANGED,6X12

BOLT,FLANGED,6X9

BOLT,FLANGED,6X14

BOLT-FLANGED,6X70

DAMPER,8X22X10

DAMPER,70X15X6

NUT,6MM

NUT
