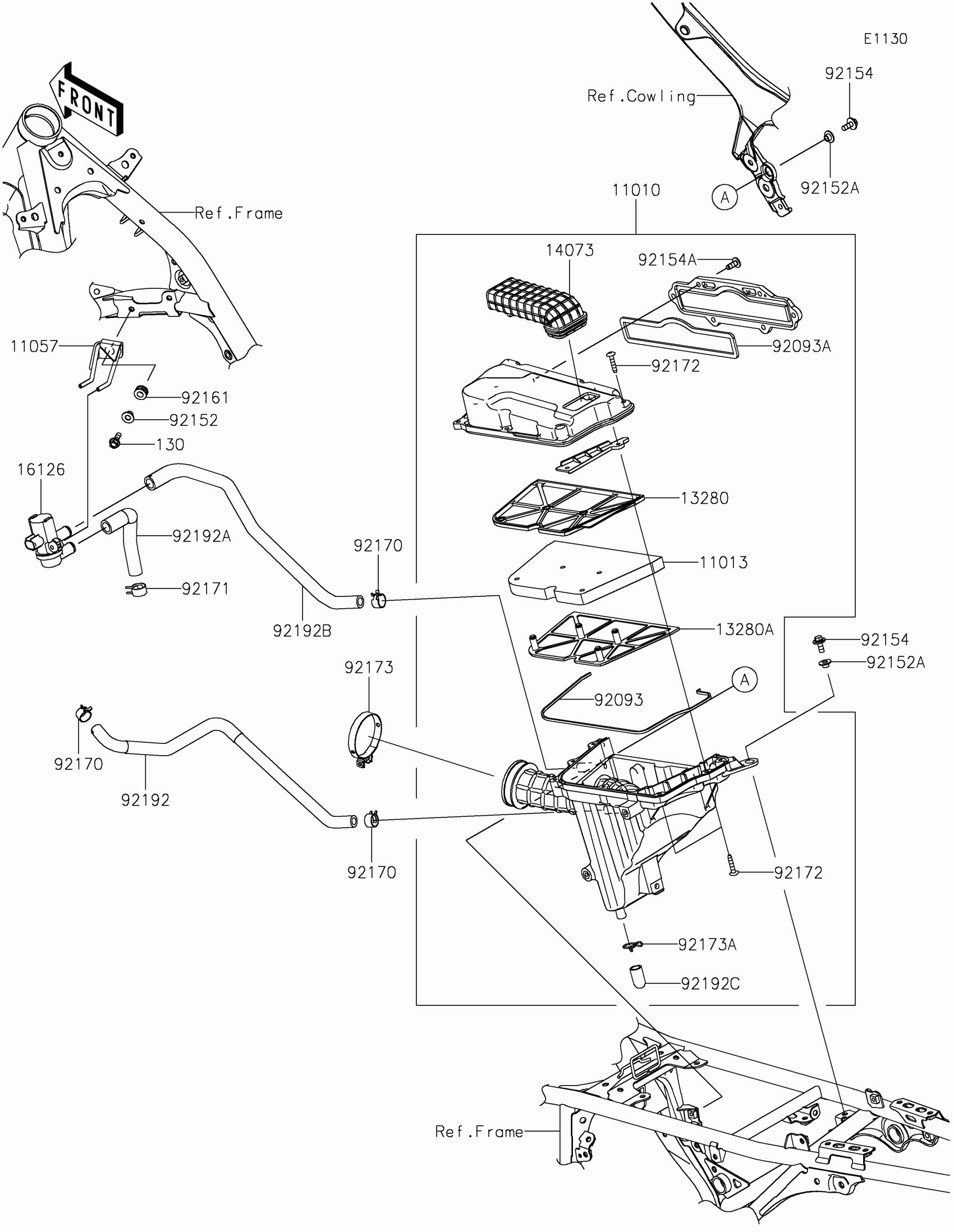

Find the part on the AIR Cleaner diagram for your 2024 Kawasaki KLX230R S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki KLX230R S AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-1810

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-0790

1
Out of stock

11057

BRACKET,ASWV

11057-2432

1
Out of stock

13280

HOLDER,UPP

13280-0945

1
Out of stock

13280A

HOLDER,LWR

13280-0946

1
Out of stock

14073

DUCT,IN

14073-0928

1
Out of stock

16126

VALVE,AIR SWITCH

16126-0750

1
Out of stock

92093

SEAL

92093-0727

1
Out of stock

92093A

SEAL

92093-0728

1
Out of stock

92152

COLLAR,6.3X8.3X9.2

92152-1725

1
Out of stock

92152A

COLLAR,6.3X8.3X6.2

92152-2586

1
Out of stock

92154

BOLT,FLANGED-SMALL,6X16

92154-1183

1
Out of stock

92154A

BOLT,6X16

92154-3970

1
Out of stock

92161

DAMPER

92161-0031

1
Out of stock

92170

CLAMP,BRAKE HOSE

92170-1434

1

$11.81

In stock

92171

CLAMP

92171-0533

1

$2.71

In stock

92172

SCREW

92172-1291

1
Out of stock

92173

CLAMP

92173-2191

1
Out of stock

92173A

CLAMP,14MM

92173-2474

1
Out of stock

92192

TUBE,BLOW-BY

92192-1929

1
Out of stock

92192A

TUBE,ASWV-HEAD

92192-1930

1
Out of stock

92192B

TUBE,A/C-ASWV

92192-1931

1
Out of stock

92192C

TUBE

92192-2582

1
Out of stock

130

BOLT-FLANGED,6X18

130BA0618

1

$1.36

In stock
