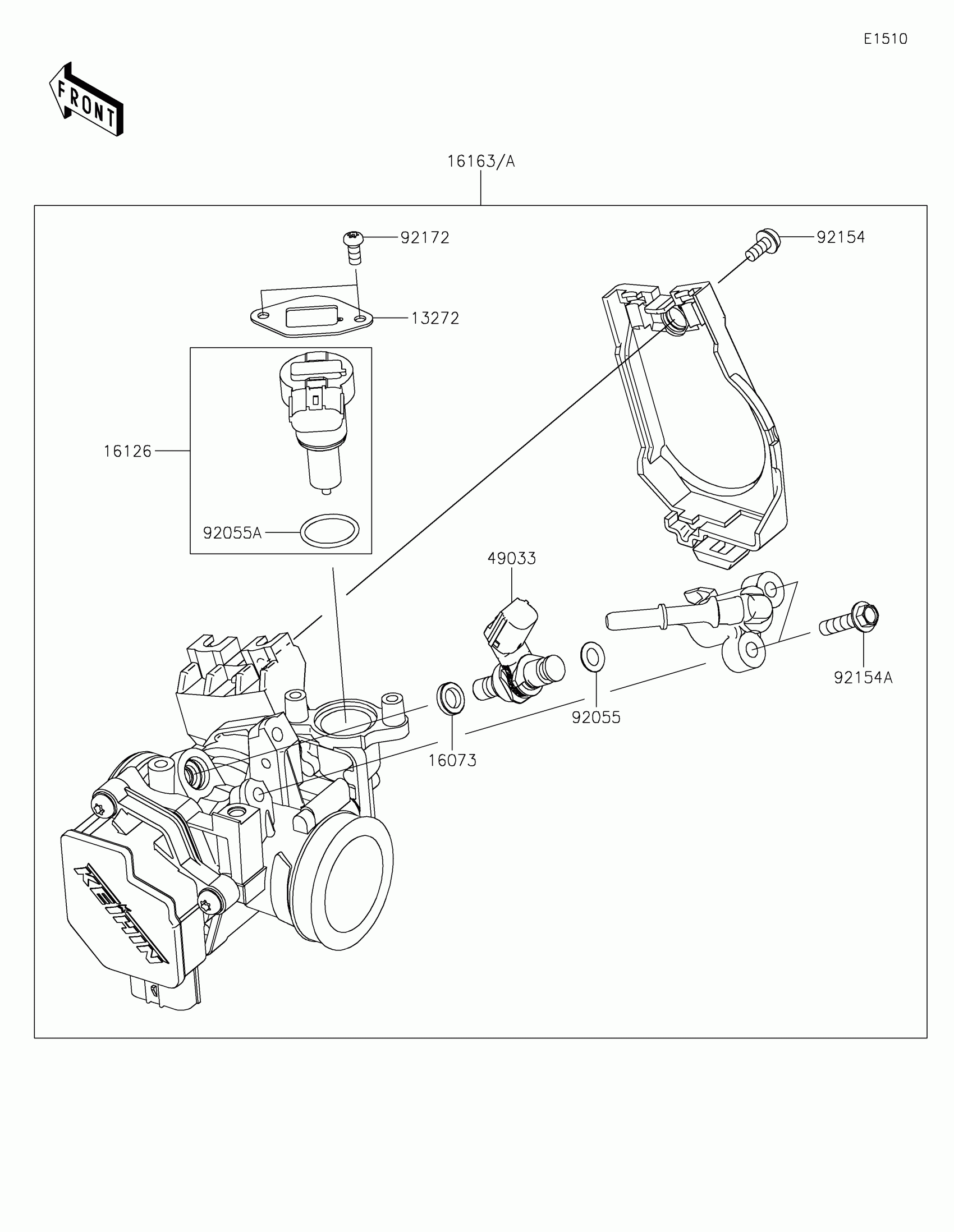

Kawasaki KLX230R S Throttle Diagram

#

Description
Price

13272

PLATE

13272-1862

$21.07

16073

INSULATOR

16073-0821

$19.41

16126

VALVE,ISC

16126-0729

$118.86

16163A

THROTTLE-ASSY

16163-0990

$642.87

49033

NOZZLE-INJECTION

49033-0031

$196.73

92055

RING-O,6.3X2.2

92055-0821

$7.58

92055A

RING-O

92055-0826

$8.37

92154

BOLT

92154-0133

$7.15

92154A

BOLT,FLANGED,5X20

92154-1559

$1.69

92172

SCREW,TORX

92172-0903

$3.19
