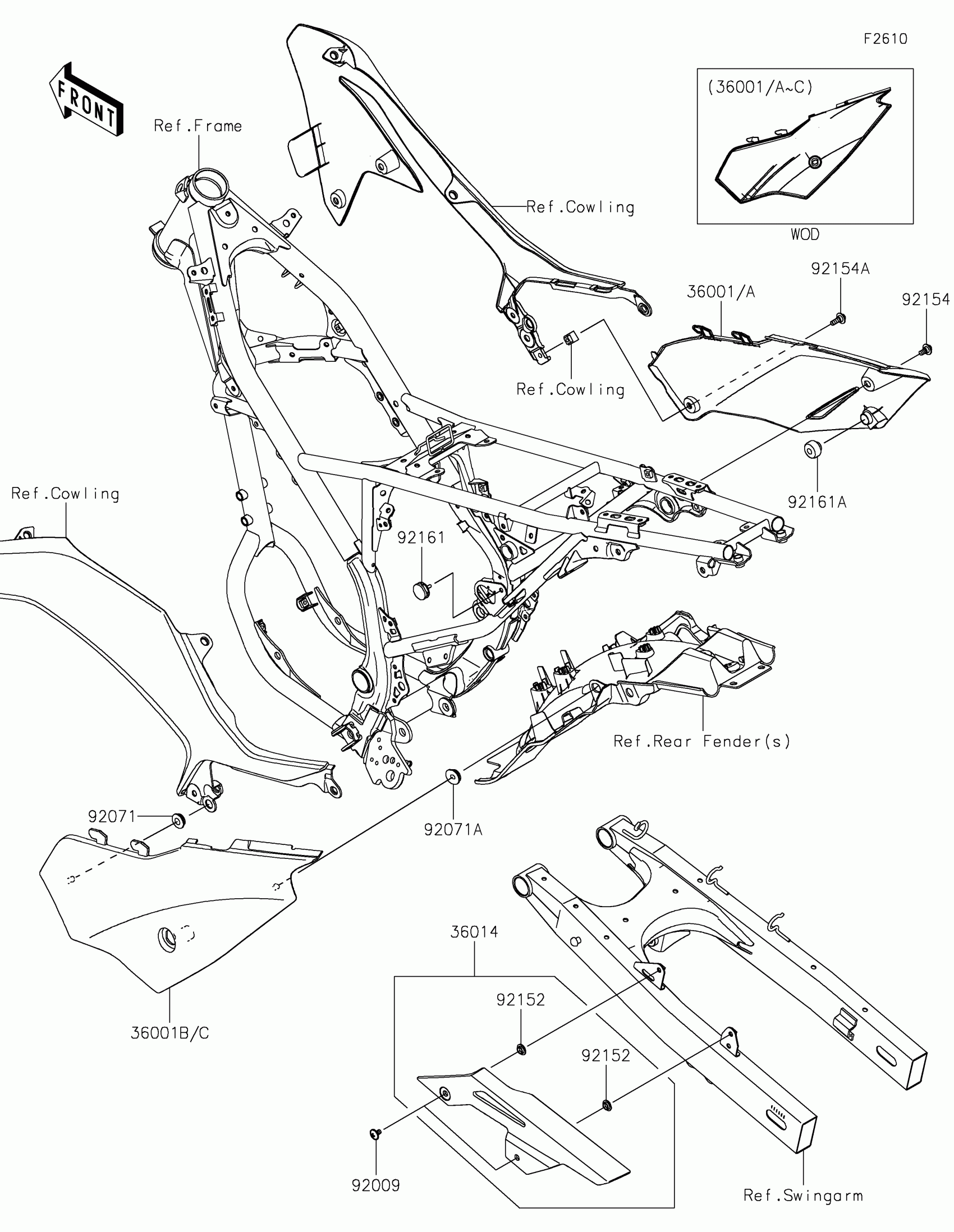

Kawasaki KLX230 S ABS Side Covers/Chain Cover Diagram

Description

Price

36001

COVER-SIDE,RH,B.WHITE

36001-0679-266

$49.16

36001A

COVER-SIDE,RH,EBONY

36001-0679-68L

$49.17

36001B

COVER-SIDE,LH,B.WHITE

36001-0684-266

Unavailable

36001C

COVER-SIDE,LH,EBONY

36001-0684-68L

$42.69

36014

CASE-CHAIN

36014-0560

$16.37

92009

SCREW,6X10

92009-1729

$0.26

92071

GROMMET

92071-0794

$1.22

92071A

GROMMET

92071-0795

$1.22

92152

COLLAR,8.8X16X4

92152-1731

$4.95

92154

BOLT,FLANGED,6X9

92154-0546

$2.84

92154A

BOLT,FLANGED,6X28

92154-1739

$1.95

92161

DAMPER

92161-0581

$1.66

92161A

DAMPER

92161-1783

$4.78
