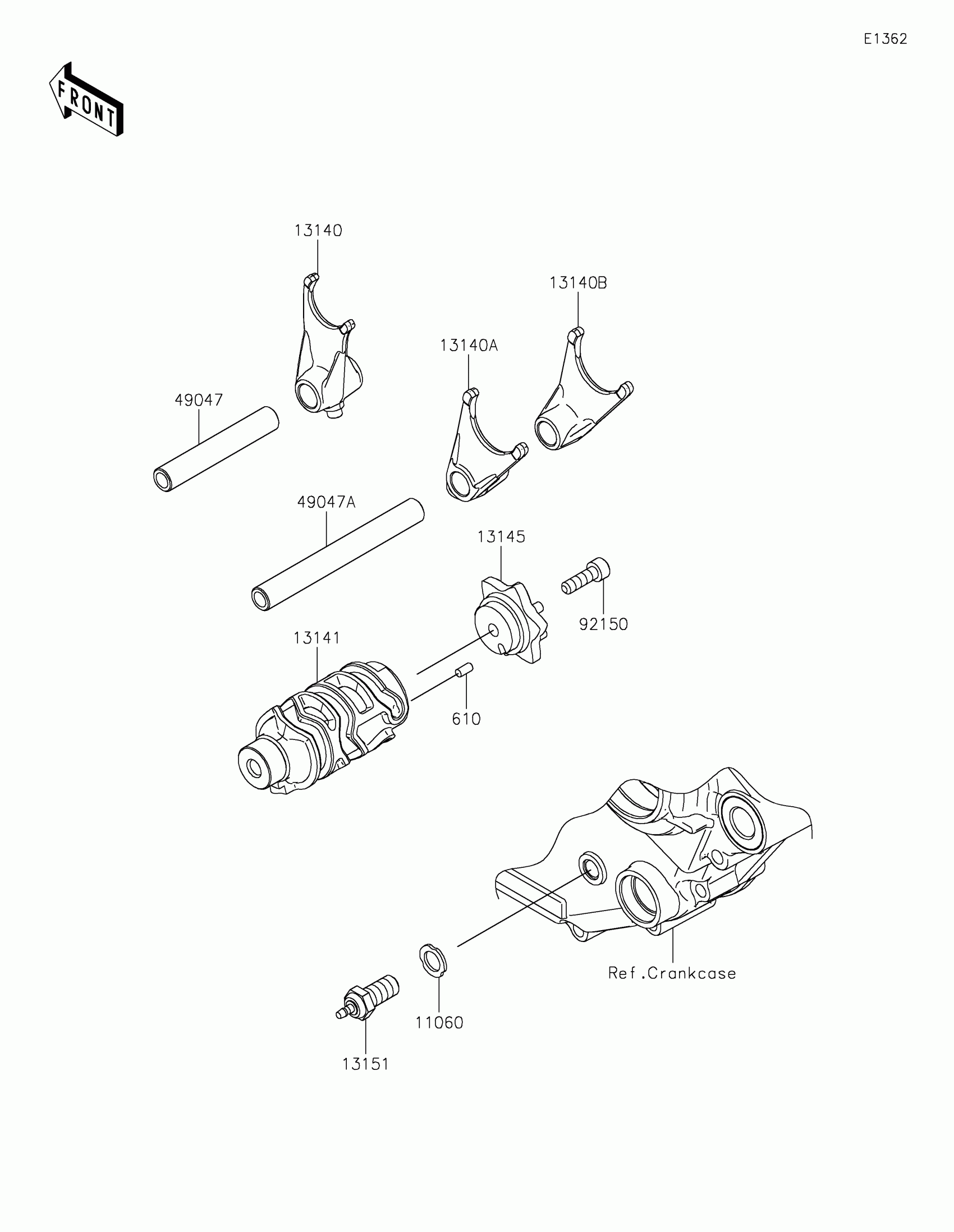

Kawasaki KLX230 S ABS Gear Change Drum/Shift Fork(s) Diagram

#

Description
Price

11060

GASKET,10.5X16X1.5

11060-1676

$4.39

13140

FORK-SHIFT,INPUT

13140-0678

$60.05

13140A

FORK-SHIFT,OUTPUT LH

13140-0679

$60.05

13140B

FORK-SHIFT,OUTPUT RH

13140-0680

$60.05

13141

DRUM-CHANGE

13141-0602

$70.38

13145

CAM-CHANGE DRUM

13145-0574

$68.99

13151

SWITCH-COMP,NEUTRAL

13151-0589

$30.06

49047

ROD-SHIFT,INPUT

49047-0642

$10.39

49047A

ROD-SHIFT,OUTPUT

49047-0643

$12.32

92150

BOLT,SOCKET,6X20

92150-1880

$3.56

610

ROLLER,4X8

610A0408

$3.29
