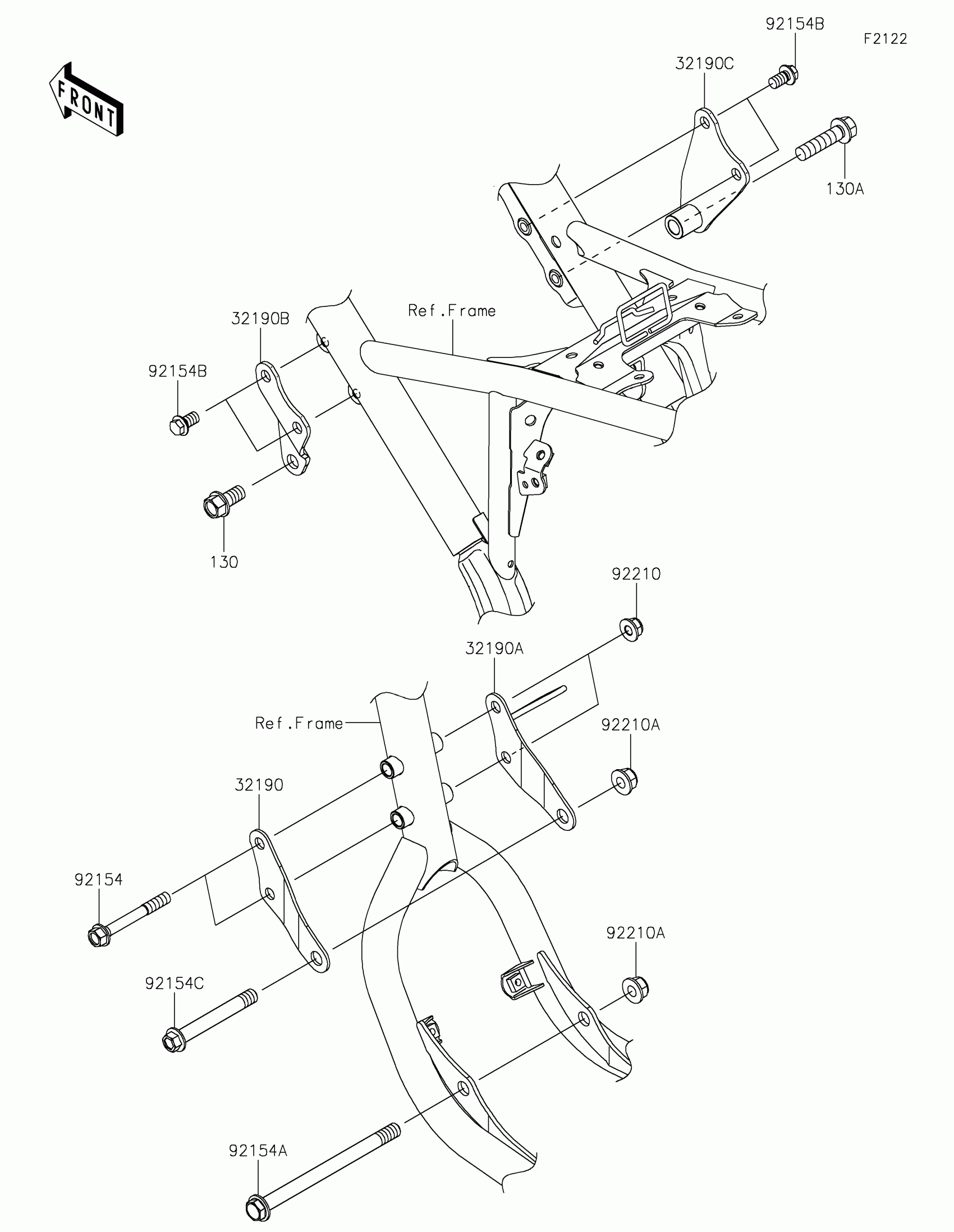

Kawasaki KLX230 S ABS Engine Mount Diagram

Description

Price

32190

BRACKET-ENGINE,FR,LH

32190-0793

$7.78

32190A

BRACKET-ENGINE,FR,RH

32190-0794

$11.16

32190B

BRACKET-ENGINE,HEAD,LH

32190-0796

$9.23

32190C

BRACKET-ENGINE,HEAD,RH

32190-0797

$15.78

92154

BOLT,FLANGED,8X65

92154-3896

$3.04

92154A

BOLT,FLANGED,10X137

92154-3897

$11.16

92154B

BOLT,FLANGED,8X14

92154-3913

$1.83

92154C

BOLT,FLANGED,10X77

92154-4041

$7.78

92210

NUT,8MM

92210-0570

$2.58

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

130

BOLT-FLANGED,10X20

130CA1020

$2.13

130A

BOLT-FLANGED,10X40

130CA1040

$2.83
