Description

Price

39137

STAY-COMP,LH,P.SILVER

39137-0704-458

$89.07

39137A

STAY-COMP,RH,P.SILVER

39137-0706-458

$112.62

39156

PAD,100X10X10

39156-2827

$2.00

49089

SHROUD-ENGINE,LH,L.GREEN

49089-0957-290

$57.34

49089A

SHROUD-ENGINE,LH,B.GRAY

49089-0957-67A

$53.47

49089B

SHROUD-ENGINE,RH,L.GREEN

49089-0958-290

$57.34

49089C

SHROUD-ENGINE,RH,B.GRAY

49089-0958-67A

$53.47

55022

COVER-HEAD LAMP,B.WHITE

55022-0329-266

$52.97

55022A

COVER-HEAD LAMP,EBONY

55022-0329-68L

$52.97

92153

BOLT,FLANGED,6X12

92153-1283

$2.41

92154

BOLT,FLANGED,6X9

92154-0546

$3.74

92154A

BOLT-FLANGED,6X70

92154-4093

$4.85

92161

DAMPER,8X22X10

92161-1685

$0.88

92161A

DAMPER,70X15X6

92161-1838

$3.21

92172

SCREW,5X12

92172-1095

$0.63

92210

NUT,6MM

92210-0218

$2.55

92210A

NUT

92210-1771

$21.84

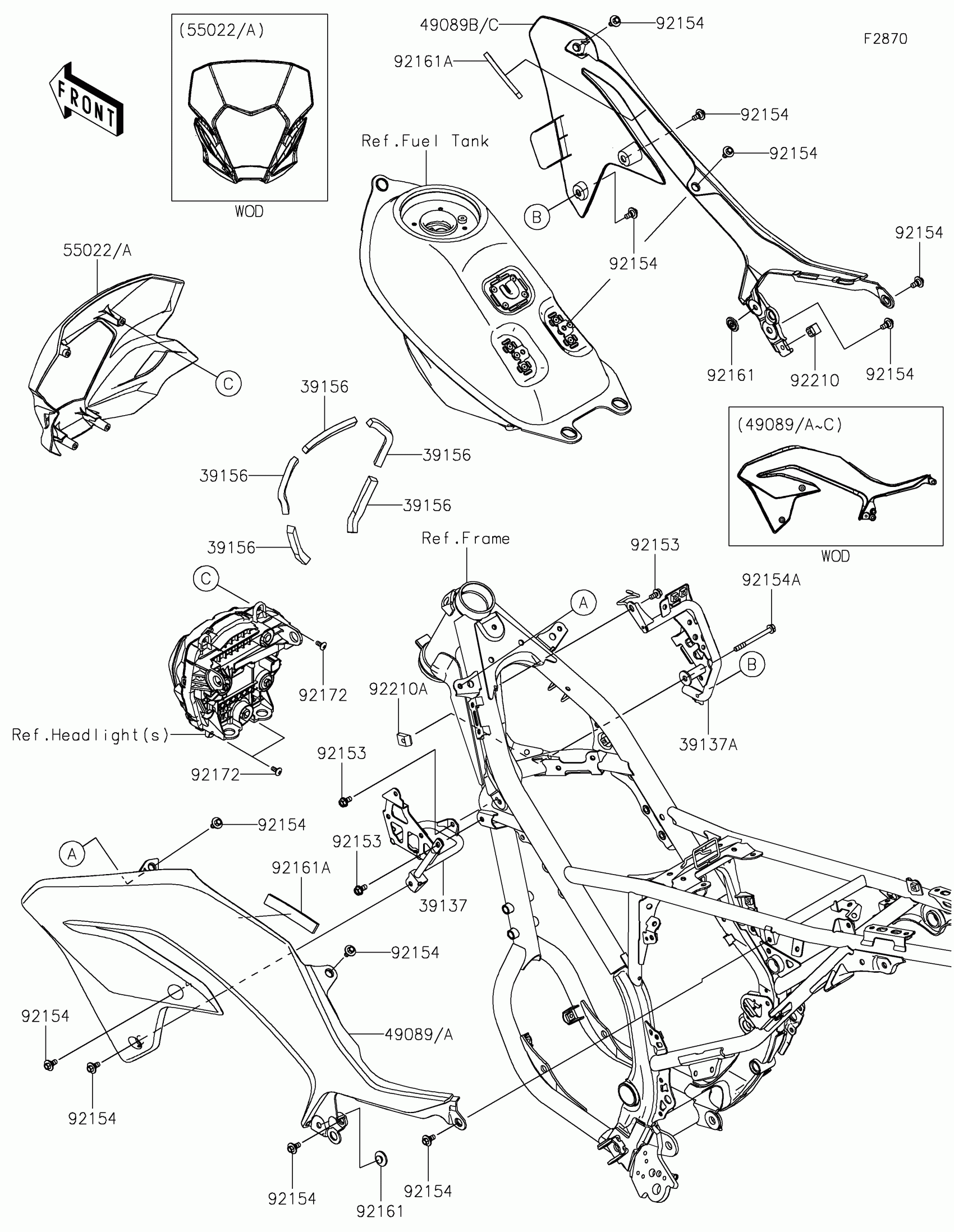

Kawasaki KLX230 S ABS Cowling Diagram
