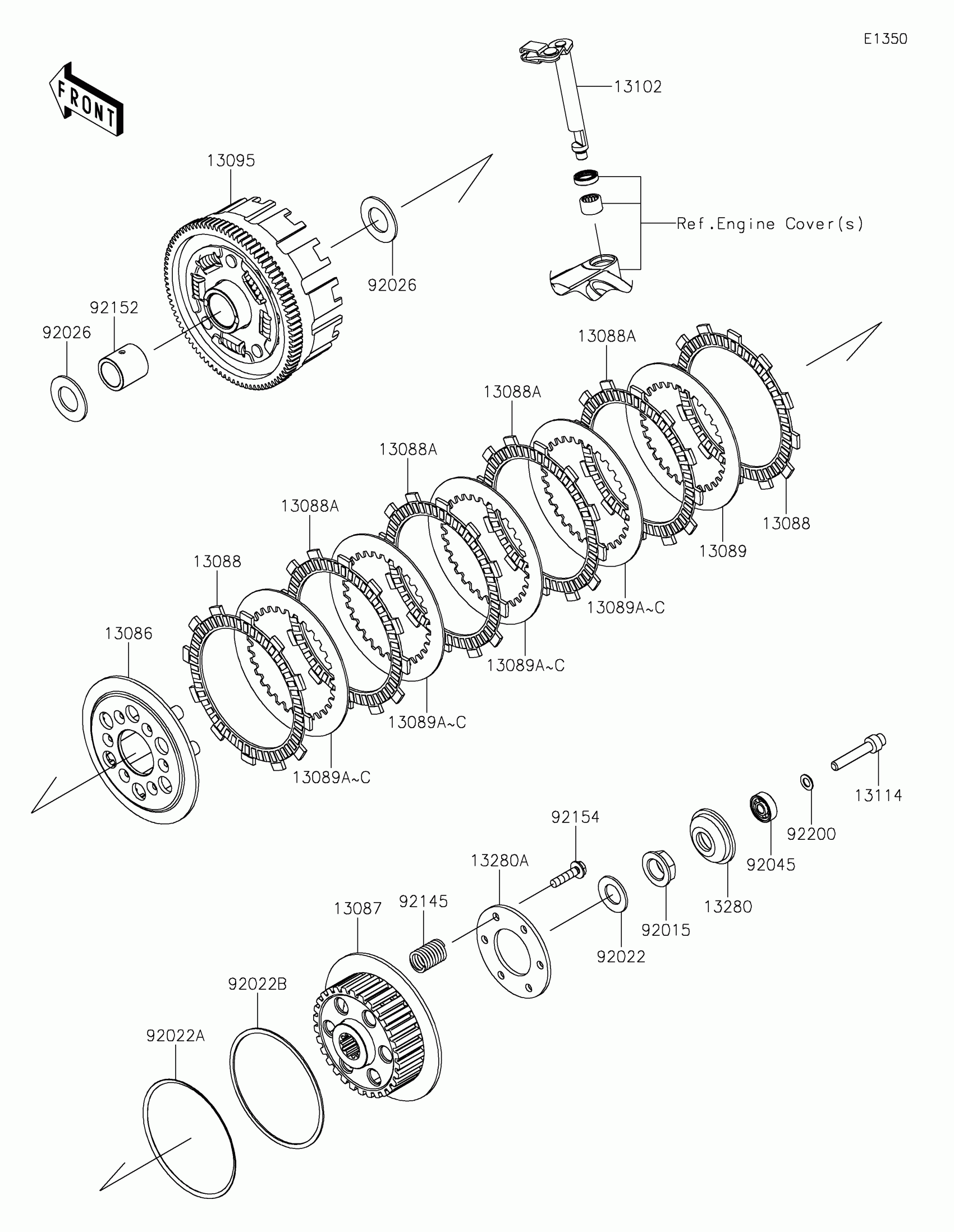

Kawasaki KLX230 S ABS Clutch Diagram
#
Description
Price
13086
WHEEL-CLUTCH
13086-0008
$161.68
13087
HUB-CLUTCH
13087-0588
$148.71
13088
PLATE-FRICTION
13088-0562
$20.09
13088A
PLATE-FRICTION
13088-0603
$21.00
13089
PLATE-CLUTCH
13089-1085
$13.74
13089A
PLATE-CLUTCH,T=1.6
13089-1094
$12.80
13089B
PLATE-CLUTCH,T=2.0
13089-1116
Unavailable
13089C
PLATE-CLUTCH,T=1.2
13089-1117
Unavailable
13095
HOUSING-COMP-CLUTCH
13095-0595
$234.45
13102
RELEASE-COMP-CLUTCH
13102-0084
$58.84
13114
PUSHER-CLUTCH
13114-0001
$11.32
13280
HOLDER,CLUTCH PUSHER
13280-0812
$14.10
13280A
HOLDER,CLUTCH SPRING
13280-0936
$39.50
92015
NUT,16MM
92015-1581
$19.64
92022
WASHER,16.3X29X1.75
92022-1356
$7.34
92022A
WASHER,JUDDER SPRING
92022-1974
$15.16
92022B
WASHER,JUDDER SPRING SEAT
92022-1993
$15.16
92026
SPACER,20.3X36.6X2
92026-0725
$13.49
92045
BEARING-BALL,627UMC3 J
92045-0915
$14.34
92145
SPRING
92145-1846
$14.96
92152
COLLAR,20X26.8X26.7
92152-2550
$30.40
92154
BOLT,6X25
92154-3785
$1.78
92200
WASHER,7X12.5X0.8
92200-0909
$3.86
