Description

Price

11057

BRACKET,DIAG

11057-2018

$1.37

11057A

BRACKET,VEHICLE DOWN SENSOR

11057-2021

$23.99

11057B

BRACKET,ECU

11057-2022

$7.51

11057C

BRACKET,MAGNETIC SWITCH

11057-2348

$4.60

11057D

BRACKET,RELAY

11057-2349

$22.32

11057E

BRACKET,FUSE BOX

11057-2350

$3.26

11057F

BRACKET,RR HARNESS

11057-2351

$2.10

11057G

BRACKET,FR HARNESS

11057-2352

$24.70

11057H

BRACKET

11057-2463

$10.21

11057I

BRACKET,ENGINE START SWITCH

11057-2520

$2.80

11057J

BRACKET,BRAKE HOSE&HARNESS

11057-2772

$8.74

14093

COVER,HARNESS

14093-0720

$4.55

21061

RECTIFIER

21061-1003

$29.60

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011

WIRE-LEAD,BATTERY(+)

26011-1879

$110.16

26011A

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$37.01

26011B

WIRE-LEAD,BATTERY(-)

26011-1915

$98.85

26012

BATTERY,YTX7A-BS,12V 6.3AH

26012-0989

$180.41

26031

HARNESS,MAIN

26031-3855

$737.71

27002

RELAY-ASSY,TURN SIGNAL

27002-0031

$25.81

27003

HORN

27003-0155

$70.00

27034

RELAY

27034-0012

$36.91

39156

PAD,55X30X5

39156-2451

$1.98

53044

TRIM,9X6.5X20

53044-0596

$4.10

55020

GUARD,OXYGEN SENSOR

55020-2254

$5.98

92072

BAND,L=250

92072-1237

$2.14

92072A

BAND,L=140

92072-1293

$7.11

92072B

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92072C

BAND,L=152

92072-3874

$4.18

92154

BOLT,FLANGED,5X12

92154-1215

Unavailable

92154A

BOLT,FLANGED,6X12

92154-1776

$0.63

92154B

BOLT,FLANGED,6X12

92154-2776

$2.70

92161

DAMPER

92161-2290

$6.03

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171A

CLAMP

92171-0911

$7.68

92172

SCREW,CROS,5X10

92172-1255

$0.42

92173

CLAMP

92173-2199

$1.48

92210

NUT,PLATE,5MM

92210-0262

$1.34

130

BOLT-FLANGED,6X10

130BA0610

$1.20

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

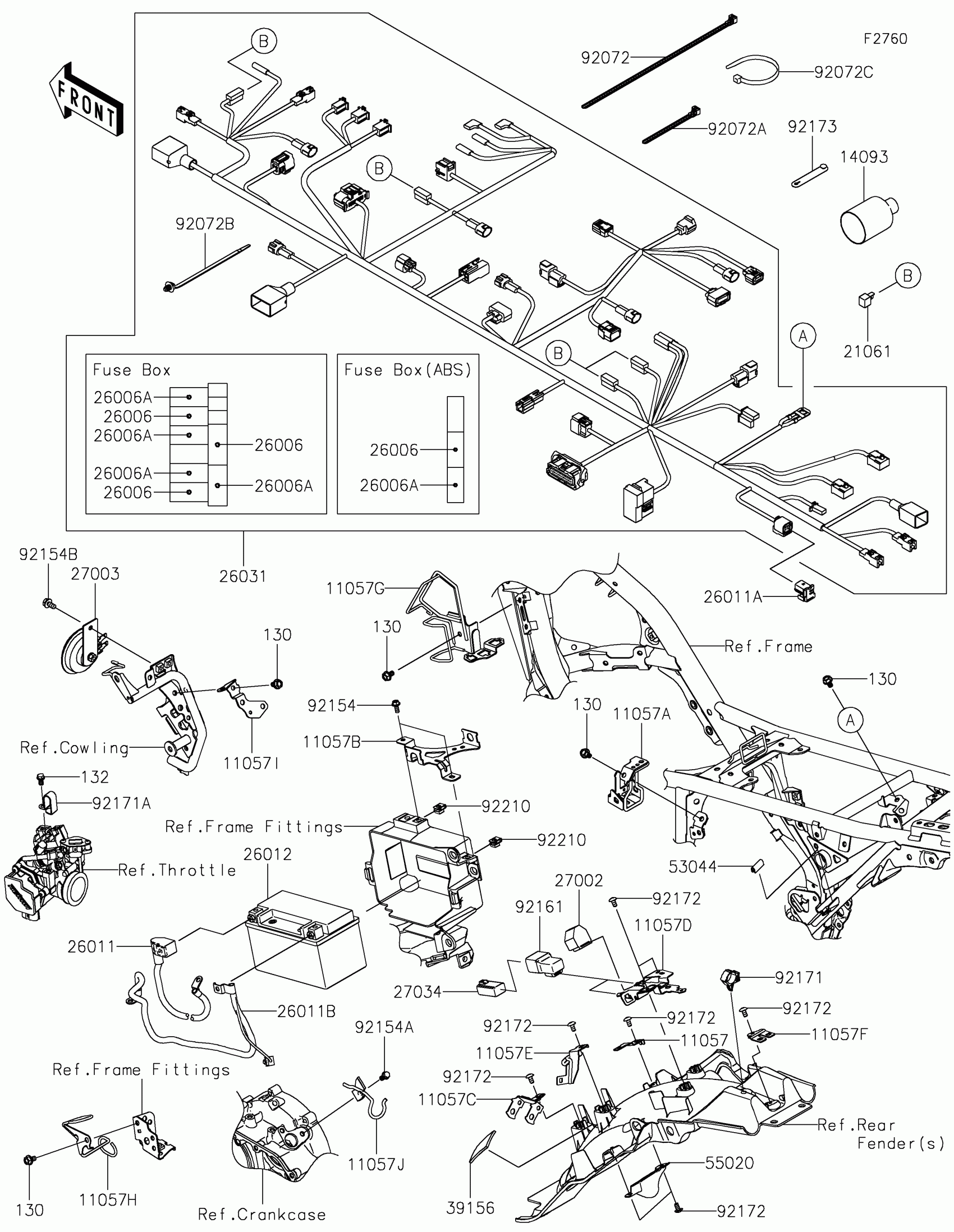

Kawasaki KLX230 S ABS Chassis Electrical Equipment Diagram

BRACKET,DIAG

BRACKET,VEHICLE DOWN SENSOR

BRACKET,ECU

BRACKET,MAGNETIC SWITCH

BRACKET,RELAY

BRACKET,FUSE BOX

BRACKET,RR HARNESS

BRACKET,FR HARNESS

BRACKET

BRACKET,ENGINE START SWITCH

BRACKET,BRAKE HOSE&HARNESS

COVER,HARNESS

RECTIFIER

FUSE,MINI BLADE,15A,BLUE

FUSE,MINI BLADE,10A,RED

WIRE-LEAD,BATTERY(+)

WIRE-LEAD,DIAG CONNECTOR

WIRE-LEAD,BATTERY(-)

BATTERY,YTX7A-BS,12V 6.3AH

HARNESS,MAIN

RELAY-ASSY,TURN SIGNAL

HORN

RELAY

PAD,55X30X5

TRIM,9X6.5X20

GUARD,OXYGEN SENSOR

BAND,L=250

BAND,L=140

BAND,OS170-FT7(BLACK)

BAND,L=152

BOLT,FLANGED,5X12

BOLT,FLANGED,6X12

BOLT,FLANGED,6X12

DAMPER

CLAMP,BRAKE HOSE

CLAMP

SCREW,CROS,5X10

CLAMP

NUT,PLATE,5MM

BOLT-FLANGED,6X10

BOLT-FLANGED-SMALL,6X10
