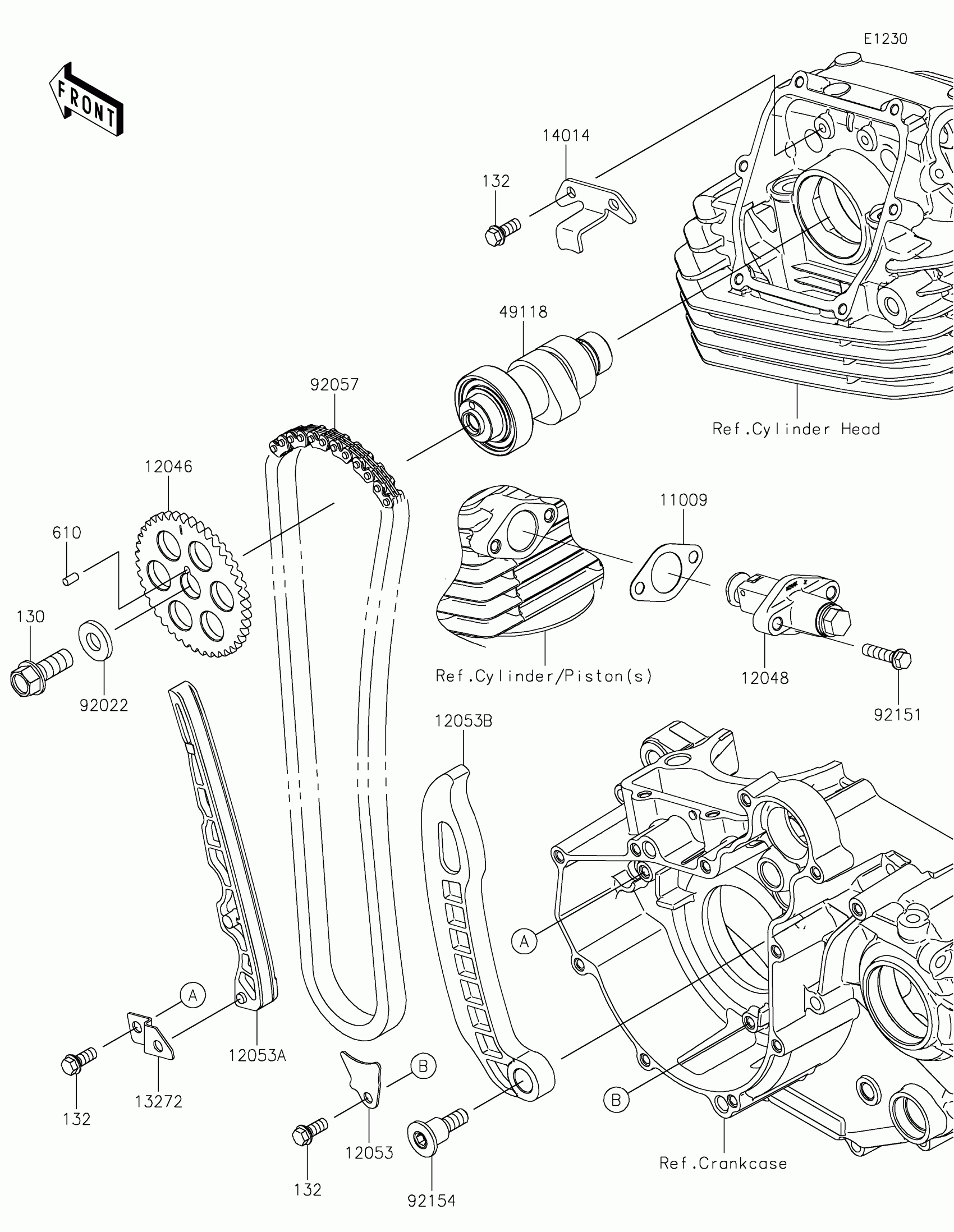

Kawasaki KLX230 S ABS Camshaft(s)/Tensioner Diagram

Description

Price

11009

GASKET,TENSIONER

11009-1858

$3.52

12046

SPROCKET,42T

12046-0615

$51.74

12048

TENSIONER-ASSY

12048-0127

$129.07

12053

GUIDE-CHAIN,LWR

12053-0275

$4.07

12053A

GUIDE-CHAIN,FR

12053-0315

$44.24

12053B

GUIDE-CHAIN,RR

12053-0316

$62.10

13272

PLATE,CHAIN GUIDE

13272-2626

$3.68

14014

PLATE-POSITION

14014-0578

$14.03

49118

CAMSHAFT-COMP

49118-0970

$315.11

92022

WASHER,10X22X3

92022-1365

$4.85

92057

CHAIN,CAM,92RH2010-110M

92057-0764

$20.36

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92154

BOLT

92154-1307

$22.61

130

BOLT-FLANGED,10X25

130BA1025

$2.71

132

BOLT-FLANGED-SMALL,6X14

132BD0614

$3.24

610

ROLLER,4X8

610A0408

$3.29
