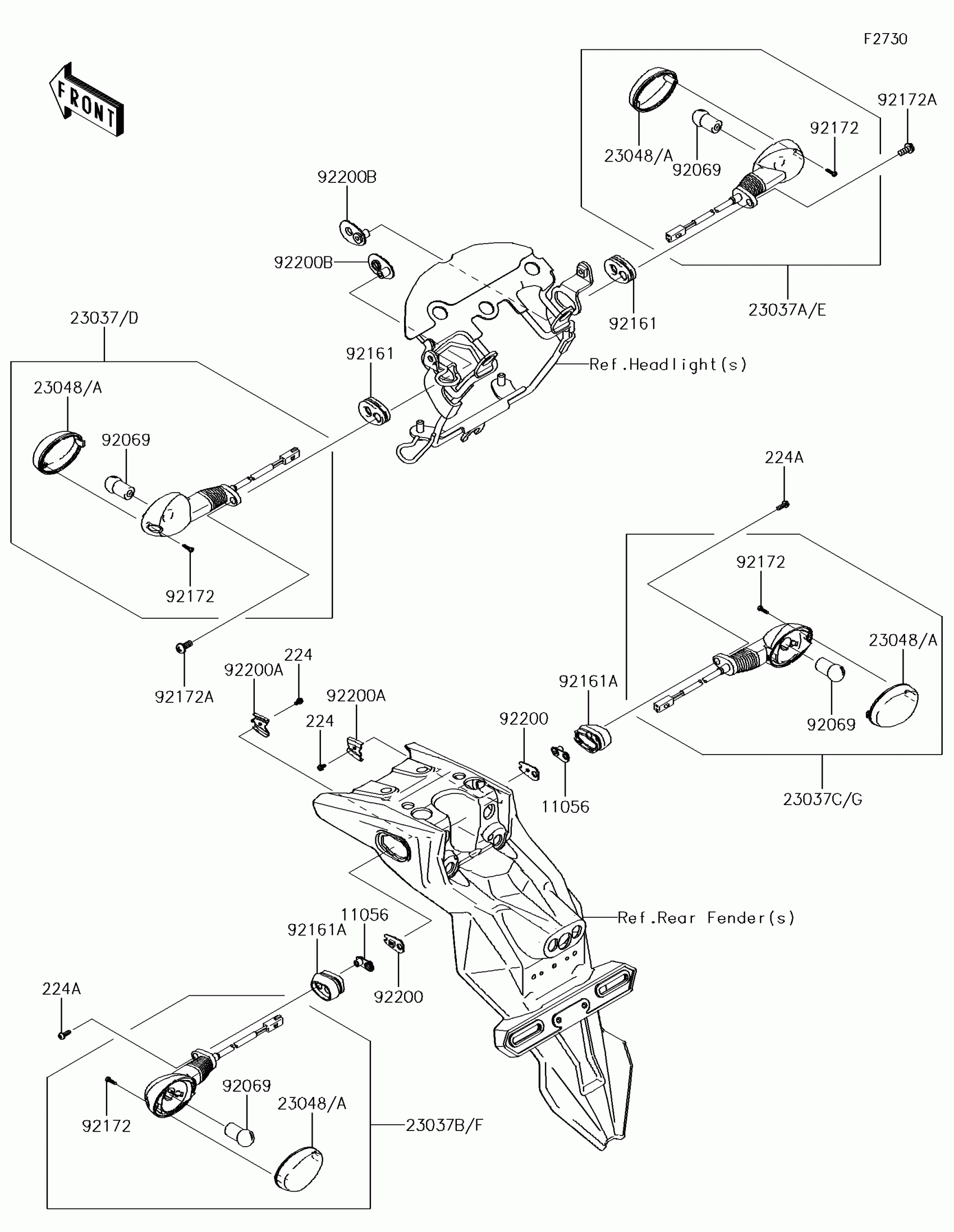

Kawasaki KLX150L (Latin America) Turn Signals Diagram

Description

Price

11056

BRACKET,6MM

11056-4156

$3.78

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$2.79

224A

SCREW-PAN-WP-CROS,6X14

224AB0614

$3.14

23037D

LAMP-ASSY-SIGNAL,FR,LH

23037-0372

$48.89

23037E

LAMP-ASSY-SIGNAL,FR,RH

23037-0373

$48.89

23037F

LAMP-ASSY-SIGNAL,RR,LH

23037-0374

$48.89

23037G

LAMP-ASSY-SIGNAL,RR,RH

23037-0375

$48.89

23048A

LENS-SIGNAL LAMP

23048-0033

$7.46

92069

BULB,12V 10W

92069-0003

$1.85

92161

DAMPER,SIGNAL LAMP

92161-0828

$5.80

92161A

DAMPER,SIGNAL LAMP

92161-1680

$4.52

92172

SCREW,TAPPING,2.9X13

92172-0343

$1.32

92172A

SCREW,6X14

92172-0497

$4.75

92200

WASHER,SIGNAL LAMP

92200-0164

$3.01

92200A

WASHER,SIGNAL LAMP

92200-0165

$3.01

92200B

WASHER

92200-0874

$8.46
