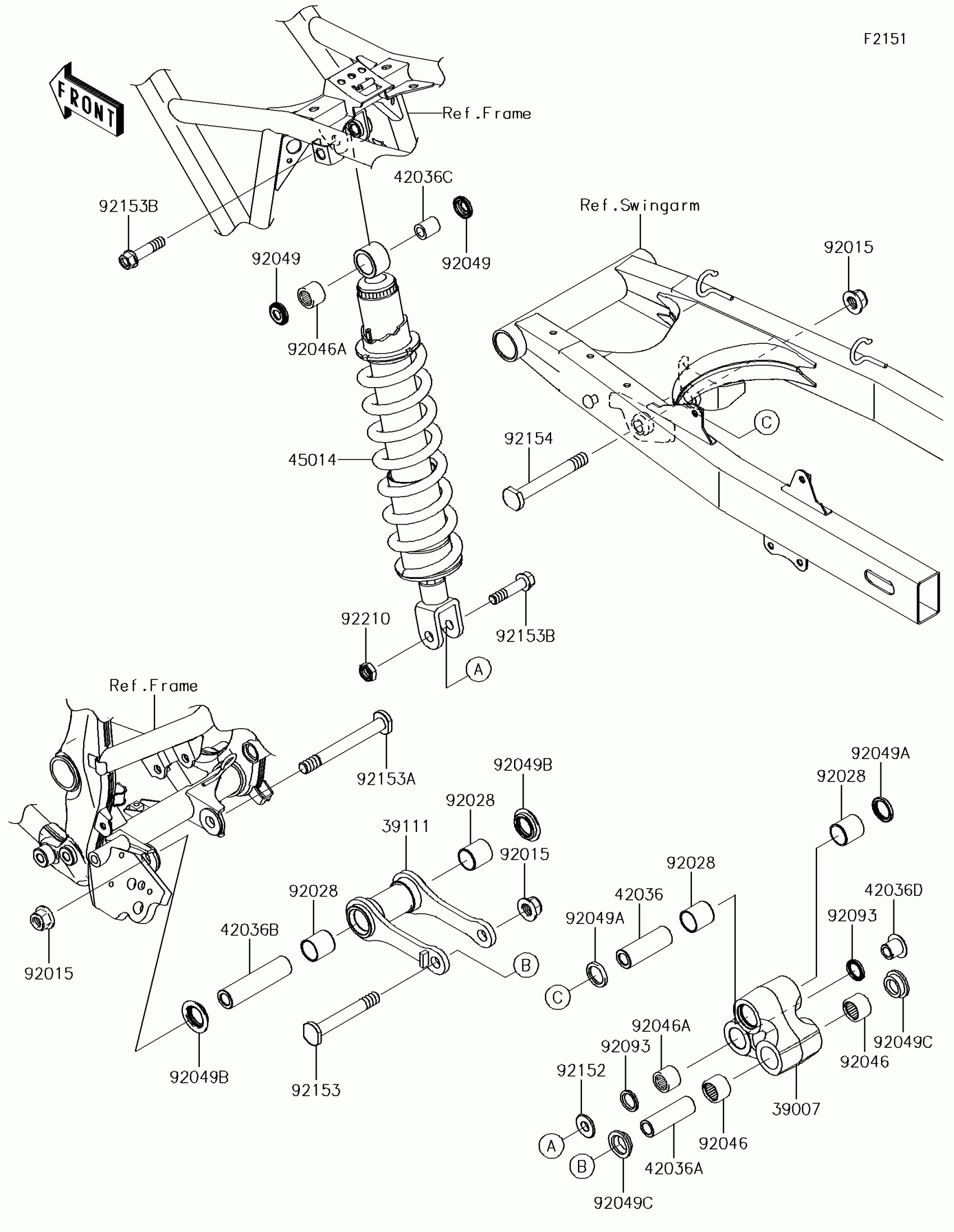

Kawasaki KLX150L (Latin America) Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP

39007-0391

Unavailable

39111

ROD-TIE,P.SILVER

39111-0323-458

$99.35

42036

SLEEVE,12.1X20X58

42036-0046

$22.01

42036A

SLEEVE,12.1X18X58

42036-0058

$22.01

42036B

SLEEVE,12.1X20X82.6

42036-0068

$29.59

42036C

SLEEVE,10X16X19

42036-1248

$9.91

42036D

SLEEVE

42036-1351

$11.28

45014

SHOCKABSORBER,L.GREEN

45014-0532-710

$545.23

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92028

BUSHING

92028-1598

$5.08

92046

BEARING-NEEDLE,18BM2416

92046-1144

$29.26

92046A

BEARING-NEEDLE,16BM2212

92046-1192

$18.21

92049

SEAL-OIL

92049-0069

$12.29

92049A

SEAL-OIL,SDO 20 26 3

92049-0135

$11.49

92049B

SEAL-OIL,ARM

92049-1109

$9.28

92049C

SEAL-OIL

92049-1328

$27.27

92093

SEAL,SO 16 22 2.5

92093-0155

$7.58

92152

COLLAR

92152-1139

$8.86

92153

BOLT,12X85

92153-1828

$20.37

92153A

BOLT,12X108

92153-1829

$23.84

92153B

BOLT,FLANGED,10X42

92153-1957

$3.90

92154

BOLT,12X95

92154-1185

$20.37

92210

NUT,LOCK,10MM

92210-1184

$6.11
