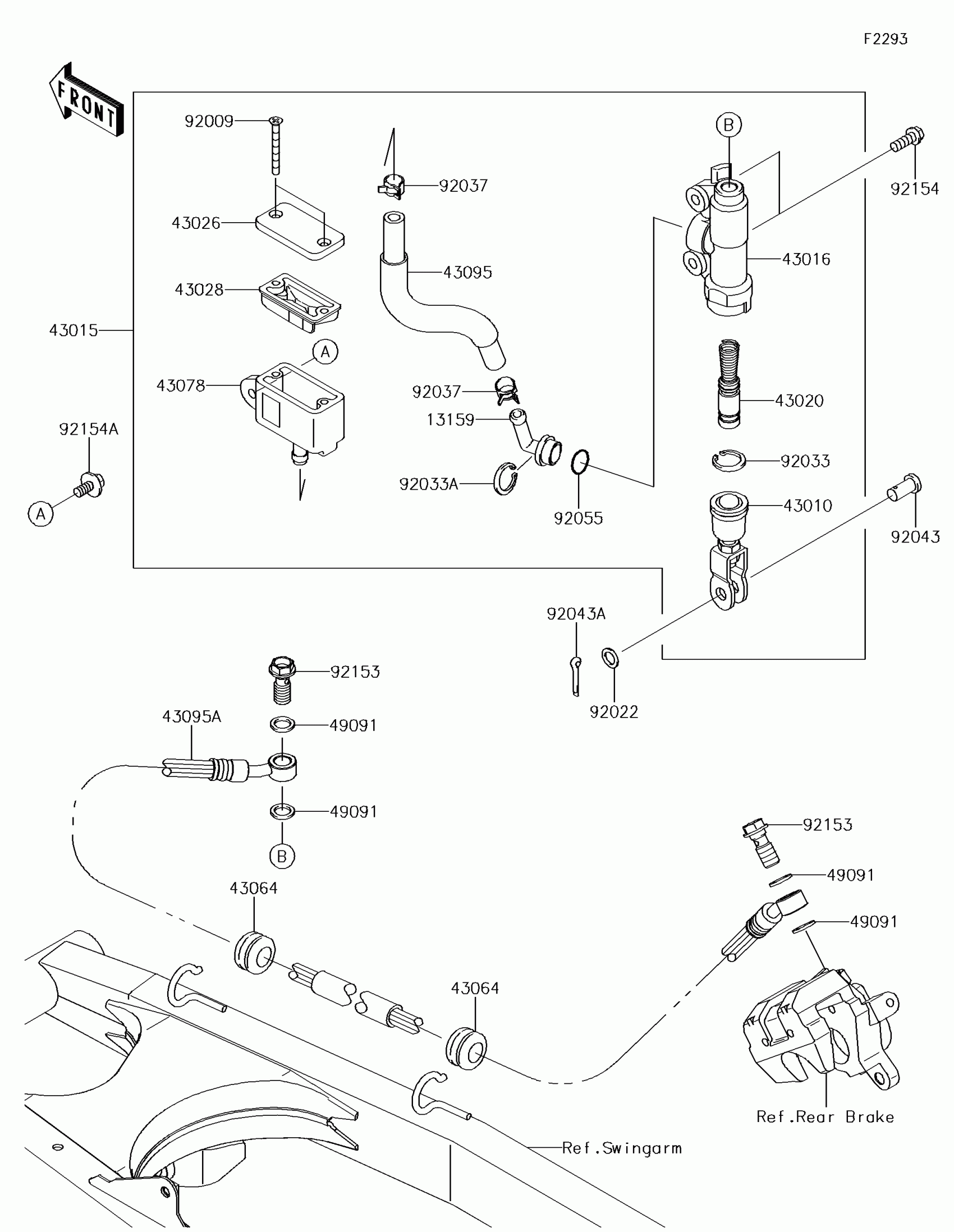

Kawasaki KLX150L (Latin America) Rear Master Cylinder Diagram

Description

Price

13159

CONNECTOR

13159-1056

$14.10

43010

ROD-ASSY-BRAKE

43010-1068

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-0587

$294.30

43016

CYLINDER-MASTER

43016-1149

$191.24

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-1075

$13.61

43028

DIAPHRAGM

43028-1067

$18.72

43064

GROMMET,HOSE CLAMP

43064-006

$4.31

43078

RESERVOIR

43078-1189

$30.34

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0550

$16.44

43095A

HOSE-BRAKE,589MM

43095-0803

$94.22

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92009

SCREW,4X40

92009-1596

$3.94

92022

WASHER,8.5X13X1

92022-1028

$3.92

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP

92037-1710

$9.91

92043

92043-0004

$11.16

92043A

PIN,COTTER,2.0X15

92043-0766

$1.17

92055

RING-O,14.8X2.4

92055-0766

$7.27

92153

BOLT,OIL,L=23

92153-0029

$1.63

92154

BOLT,FLANGED,6X16

92154-0460

$1.83

92154A

BOLT,FLANGED,6X14

92154-1231

$2.97
