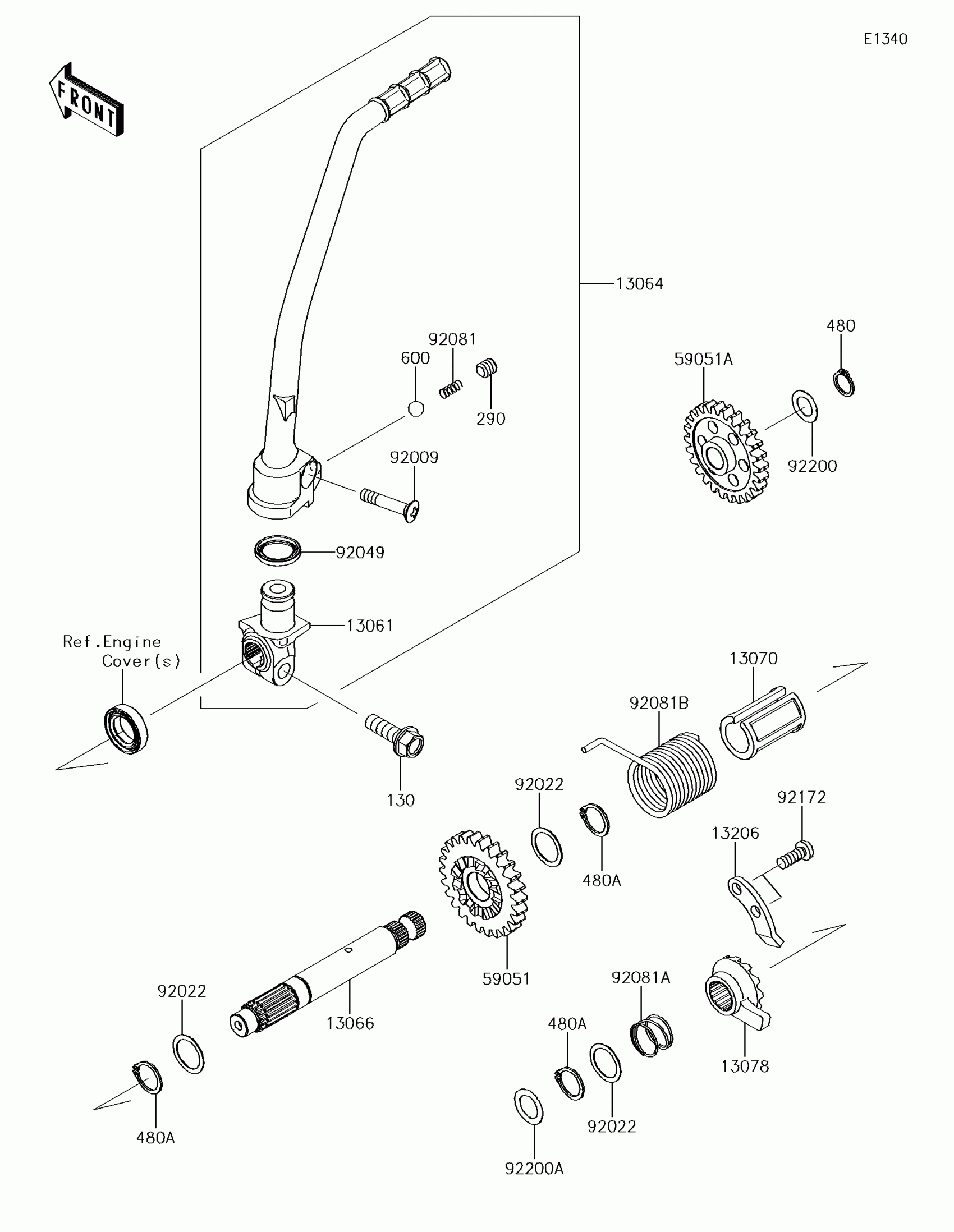

Kawasaki KLX150L (Latin America) Kickstarter Mechanism Diagram

Description

Price

130

BOLT-FLANGED,8X25

130CA0825

$1.46

13061

BOSS

13061-0778

Unavailable

13064

LEVER-ASSY-KICK

13064-0074

Unavailable

13066

SHAFT-KICK

13066-0014

$75.69

13070

GUIDE,KICK SHAFT

13070-1035

$7.98

13078

RATCHET

13078-0030

$41.41

13206

GUIDE-KICK

13206-1070

$1.44

290

SCREW-SET-SOCKET,8X8

290CA0808

$3.39

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

480A

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

59051

GEAR-SPUR,KICK STARTER,26T

59051-0735

$51.93

59051A

GEAR-SPUR,IDLE,26T

59051-0738

$49.54

600

BALL-STEEL,1/4

600A0800

$0.62

92009

SCREW,6X27

92009-1607

$8.58

92022

WASHER,16.8X22X0.5

92022-315

$6.22

92049

SEAL-OIL,KICK PEDAL

92049-1387

$6.22

92081

SPRING,KICK PEDAL

92081-020

$4.26

92081A

SPRING,RATCHET

92081-122

$8.79

92081B

SPRING,KICK STARTER

92081-1276

$12.96

92172

SCREW,6X16

92172-1051

$0.67

92200

WASHER,12.3X20X0.5

92200-0298

Unavailable

92200A

WASHER,13.2X20X0.5

92200-0571

$1.19
