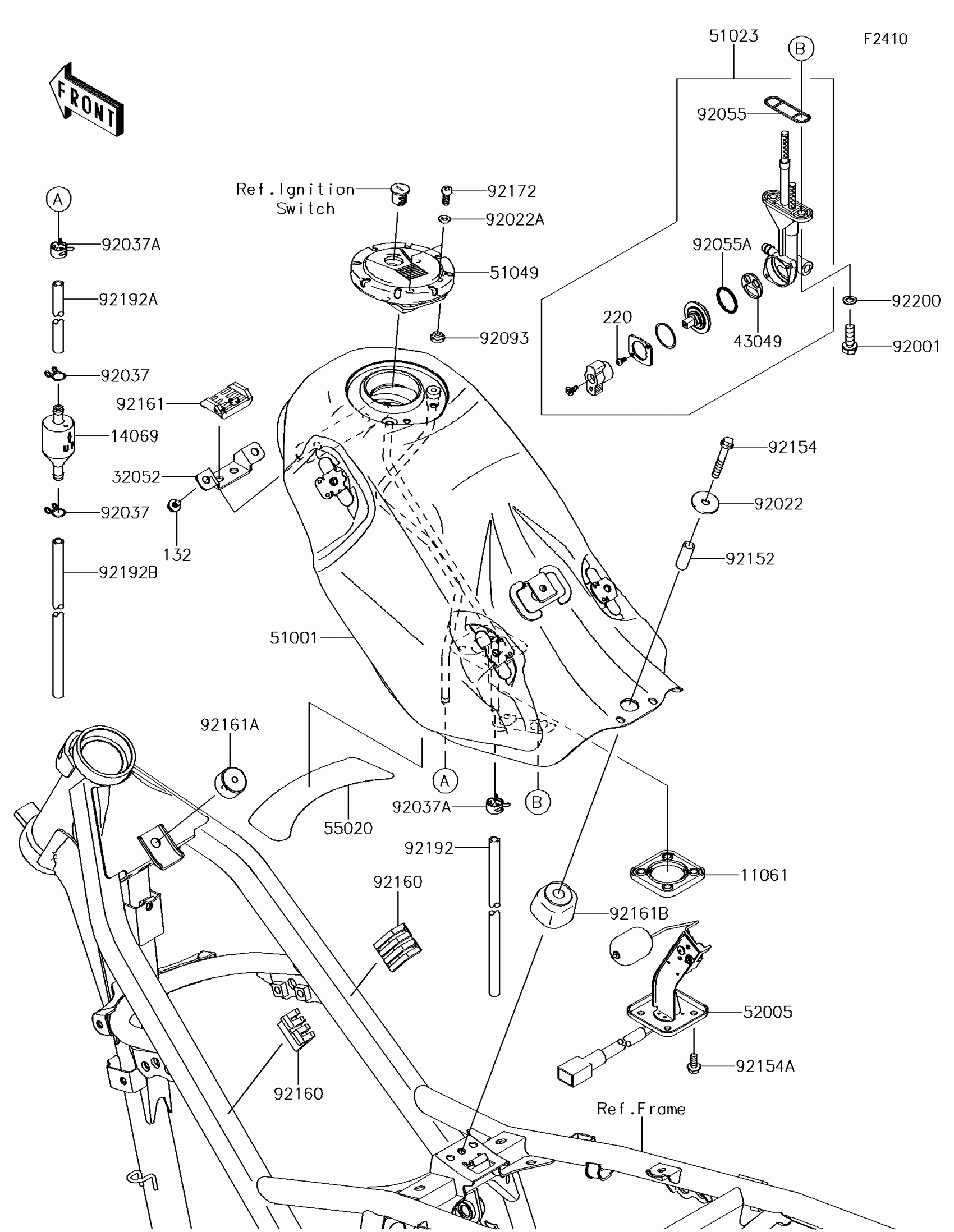

Kawasaki KLX150L (Latin America) Fuel Tank Diagram
#
Description
Price
11061
GASKET,FUEL GAUGE
11061-0279
$13.48
132
BOLT-FLANGED-SMALL,6X8
132BB0608
$3.67
14069
BREATHER,FUEL TANK
14069-1004
$10.19
220
SCREW-PAN-CROS,3X8
220AA0308
$0.59
32052
BRACKET-TANK
32052-0735
$4.10
43049
PACKING,TAP VALVE
43049-1091
$7.26
51001
TANK-COMP-FUEL,F.S.BLACK
51001-0828-25Q
Unavailable
51023
TAP-ASSY,FUEL
51023-0037
$87.96
51049
CAP-TANK,FUEL
51049-0049
$108.49
52005
GAUGE,FUEL TANK
52005-0748
Unavailable
55020
GUARD
55020-0950
$7.52
92001
BOLT,6X20
92001-1091
$3.92
92022
WASHER,6.5X24X2
92022-1690
$3.92
92022A
WASHER,5.1X10X1.0
92022-1977
$3.65
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP
92037-1601
$12.92
92055
RING-O,FUEL TAP PACKING
92055-1112
$5.00
92055A
RING-O,TAP LEVER
92055-1419
$5.00
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
92152
COLLAR,6.8X10X27
92152-2175
Unavailable
92154
BOLT
92154-1134
$3.71
92154A
BOLT,FLANGED,5X12
92154-1215
Unavailable
92160
DAMPER,FUEL TANK
92160-1328
$7.34
92161
DAMPER
92161-0705
$2.32
92161A
DAMPER
92161-1533
$10.28
92161B
DAMPER
92161-1817
Unavailable
92172
SCREW,5X10
92172-0496
$4.20
92192
TUBE,6X9X620
92192-1085
$13.37
92192A
TUBE,6X9X56
92192-1442
Unavailable
92192B
TUBE,6X9X260
92192-1443
Unavailable
92200
WASHER,6.5X11.5X0.8
92200-0177
Unavailable
