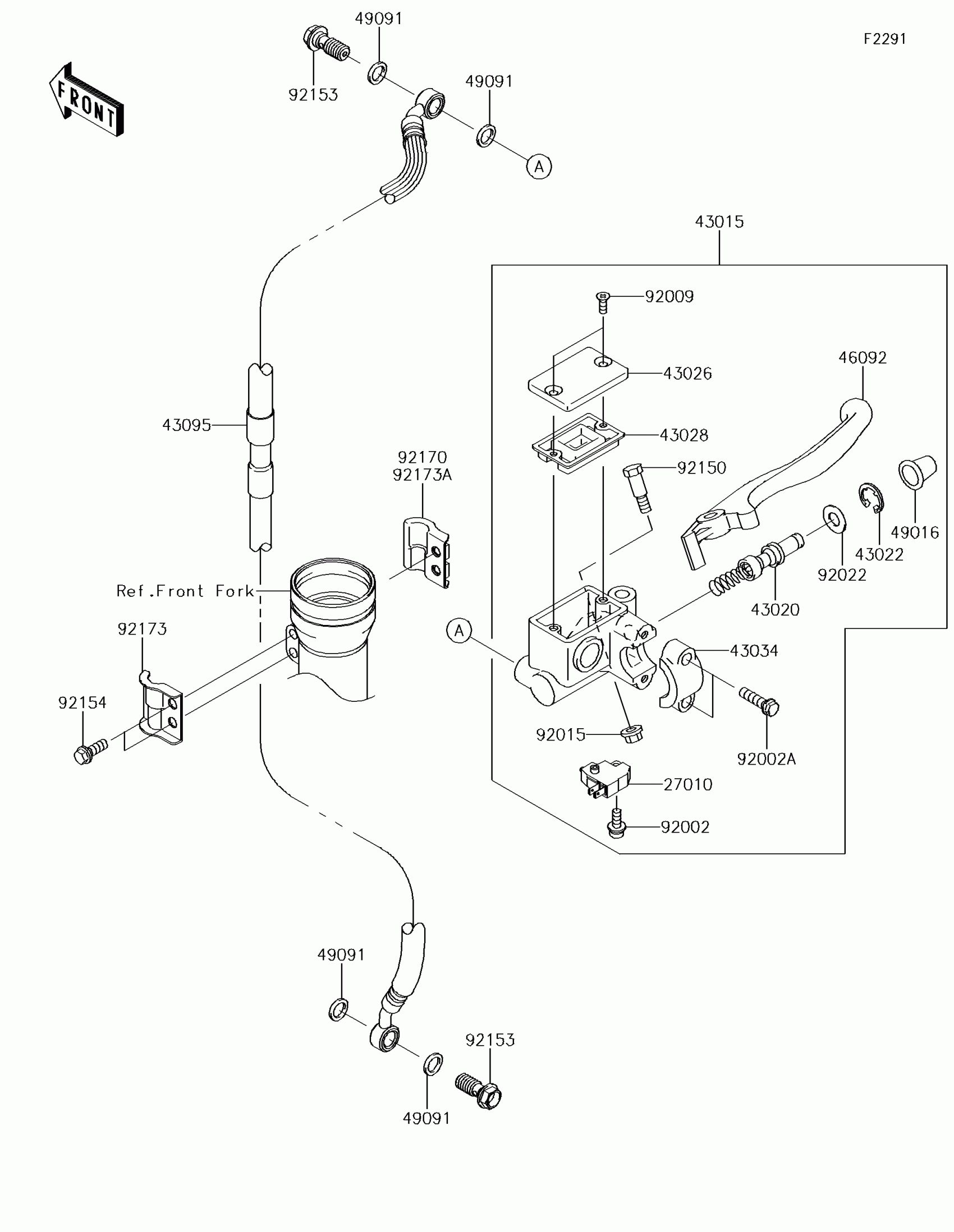

Kawasaki KLX150L (Latin America) Front Master Cylinder Diagram

Description

Price

27010

SWITCH,BRAKE

27010-0738

$35.04

43015

CYLINDER-ASSY-MASTER

43015-0586

$278.77

43020

PISTON-COMP-BRAKE

43020-0019

$50.01

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1074

$25.59

43028

DIAPHRAGM

43028-1061

$16.18

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43095

HOSE-BRAKE,FR,1296MM

43095-1433

$94.64

46092

LEVER-GRIP,FRONT BRAKE

46092-0044

$35.09

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT

92002-1894

$5.52

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92022

WASHER

92022-1814

$4.69

92150

BOLT,LEVER SET

92150-1451

$14.23

92153

BOLT,OIL,L=23

92153-0029

$1.63

92154

BOLT,FLANGED,6X16

92154-0460

$1.83

92173

CLAMP,BRAKE HOSE,OUTSIDE

92173-0827

$7.83

92173A

CLAMP,BRAKE HOSE,INSIDE

92173-1785

$7.34
