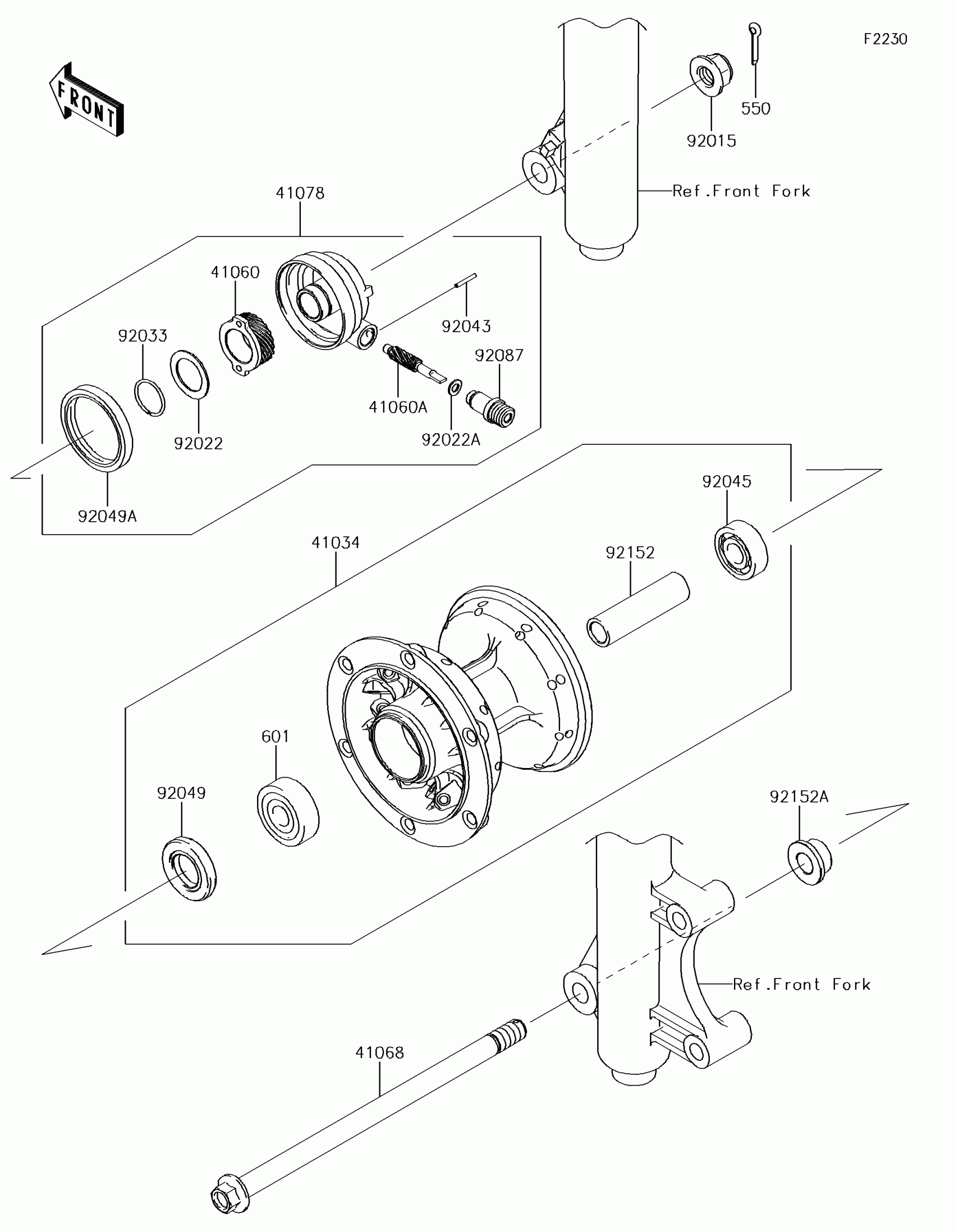

Kawasaki KLX150L (Latin America) Front Hub Diagram

Description

Price

41034

DRUM-ASSY,FR

41034-0563

$412.36

41060

GEAR-METER SCREW,DRIVE,24T

41060-0012

$18.15

41060A

GEAR-METER SCREW,PINION,8T

41060-0013

$19.94

41068

AXLE,FR,12X226

41068-0582

Unavailable

41078

CASE-ASSY-METER GEAR

41078-0016

$131.81

550

PIN-COTTER,2.5X20

550AA2520

$1.36

601

BEARING-BALL,#6301UUC3

601B6301UU

$25.54

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92022

WASHER,20X29X1.0

92022-1510

$4.39

92022A

WASHER,5X9.5X0.8

92022-1511

$3.92

92033

RING-SNAP,19MM

92033-1160

$4.35

92043

PIN,SPRING,2X14

92043-1220

$3.57

92045

BEARING-BALL,601B6201UU

92045-0747

$26.08

92049

SEAL-OIL,20X37X6.5

92049-0113

$12.29

92049A

SEAL-OIL,42X50X6

92049-0727

$19.32

92087

BUSHING-METER GEAR

92087-1051

$17.10

92152

COLLAR,12.2X17.3X62.5

92152-0709

$15.30

92152A

COLLAR

92152-0736

$15.06
