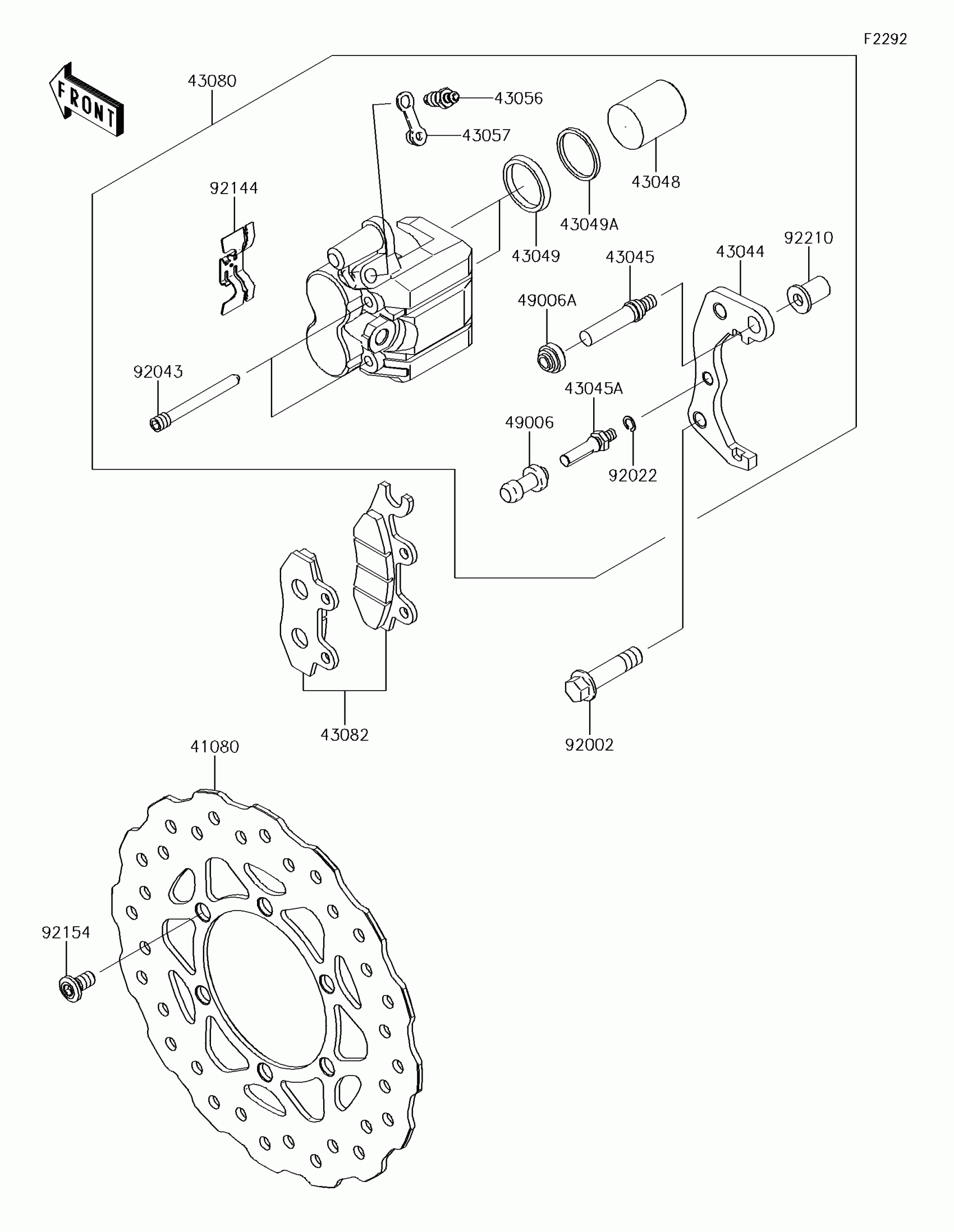

Kawasaki KLX150L (Latin America) Front Brake Diagram

Description

Price

41080

DISC,FR

41080-0638

Unavailable

43044

HOLDER-COMP-CALIPER

43044-0049

$160.46

43045

SHAFT-CALIPER

43045-0004

Unavailable

43045A

SHAFT-CALIPER

43045-1010

$19.49

43048

PISTON-CALIPER

43048-0010

$47.25

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER-BRAKE

43056-1056

$10.86

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,FR

43080-0124

$340.91

43082

PAD-ASSY-BRAKE

43082-0100

$56.64

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92002

BOLT,FLANGED,10X41

92002-1468

$6.75

92022

WASHER,WAVE

92022-1373

$3.53

92043

PIN,HANGER

92043-1416

$14.01

92144

SPRING,PAD

92144-1847

$30.92

92154

BOLT,SOCKET,8X15

92154-1181

$4.42

92210

NUT

92210-0615

$5.46
