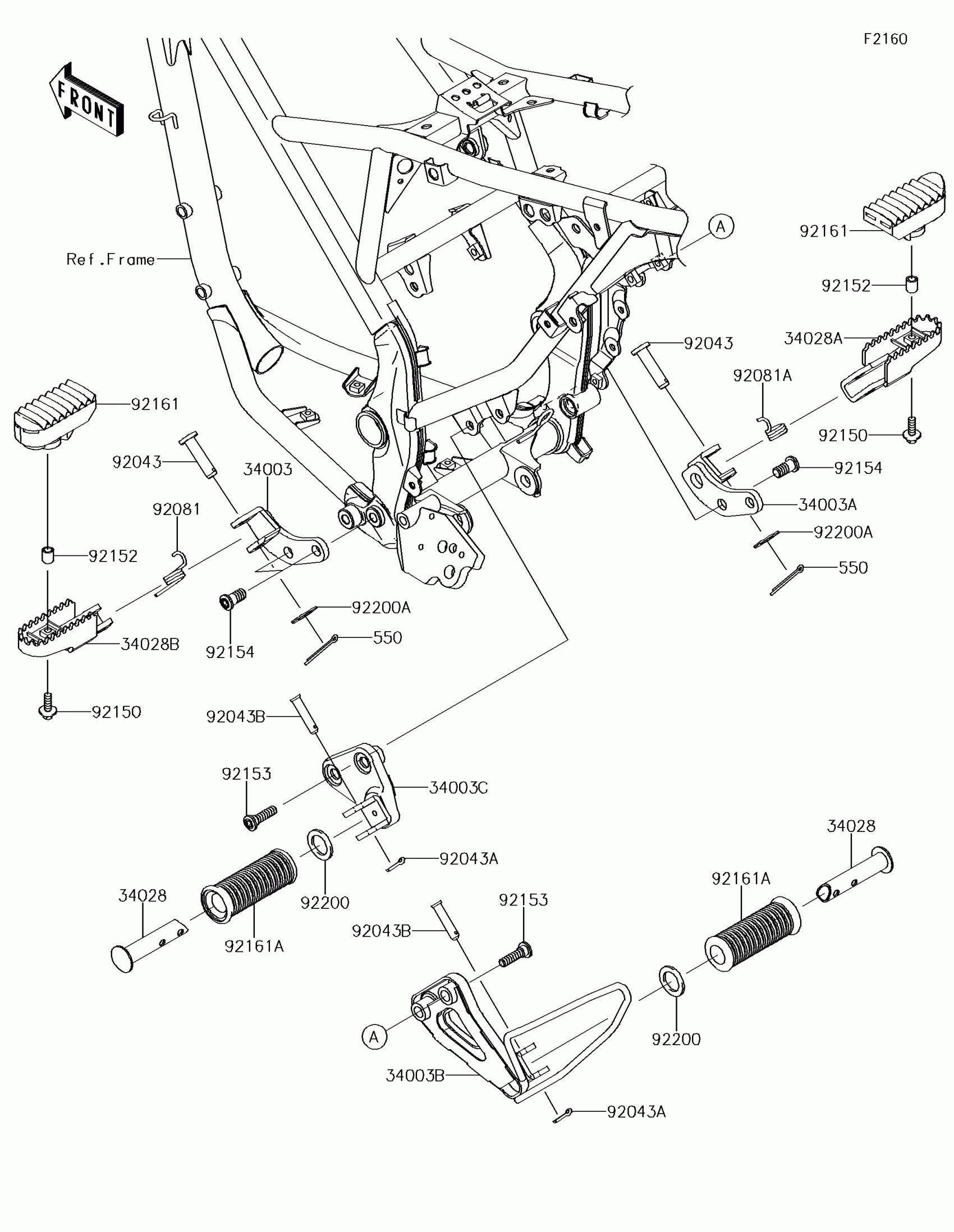

Kawasaki KLX150L (Latin America) Footrests Diagram

Description

Price

34003

HOLDER-STEP,FR,LH,P.SILVER

34003-0128-458

$35.12

34003A

HOLDER-STEP,FR,RH,P.SILVER

34003-0131-458

$35.12

34003B

HOLDER-STEP,RR,RH,P.SILVER

34003-0152-458

Unavailable

34003C

HOLDER-STEP,RR,LH,P.SILVER

34003-0160-458

Unavailable

34028

STEP,RR

34028-0007

$8.45

34028A

STEP,FR,RH,P.SILVER

34028-0112-458

$30.85

34028B

STEP,FR,LH,P.SILVER

34028-0115-458

$30.85

550

PIN-COTTER,2.0X18

550AA2018

$2.51

92043

PIN,10X35

92043-0744

$5.98

92043A

PIN,COTTER,2.5X18

92043-0771

$0.63

92043B

PIN,8X31

92043-080

$5.52

92081

SPRING,STEP,LH

92081-1606

$9.82

92081A

SPRING,STEP,RH

92081-1607

$9.82

92150

BOLT,6X20

92150-1339

$4.39

92152

COLLAR

92152-0933

$2.87

92153

BOLT,SOCKET,8X30

92153-1624

$3.90

92154

BOLT,SOCKET,10X20

92154-1180

$8.10

92161

DAMPER,STEP

92161-0848

$12.58

92161A

DAMPER,REAR STEP

92161-0866

$13.49

92200

WASHER,20X30X4.5

92200-0869

$3.02

92200A

WASHER,10.5X20X1.0

92200-0870

$0.82
