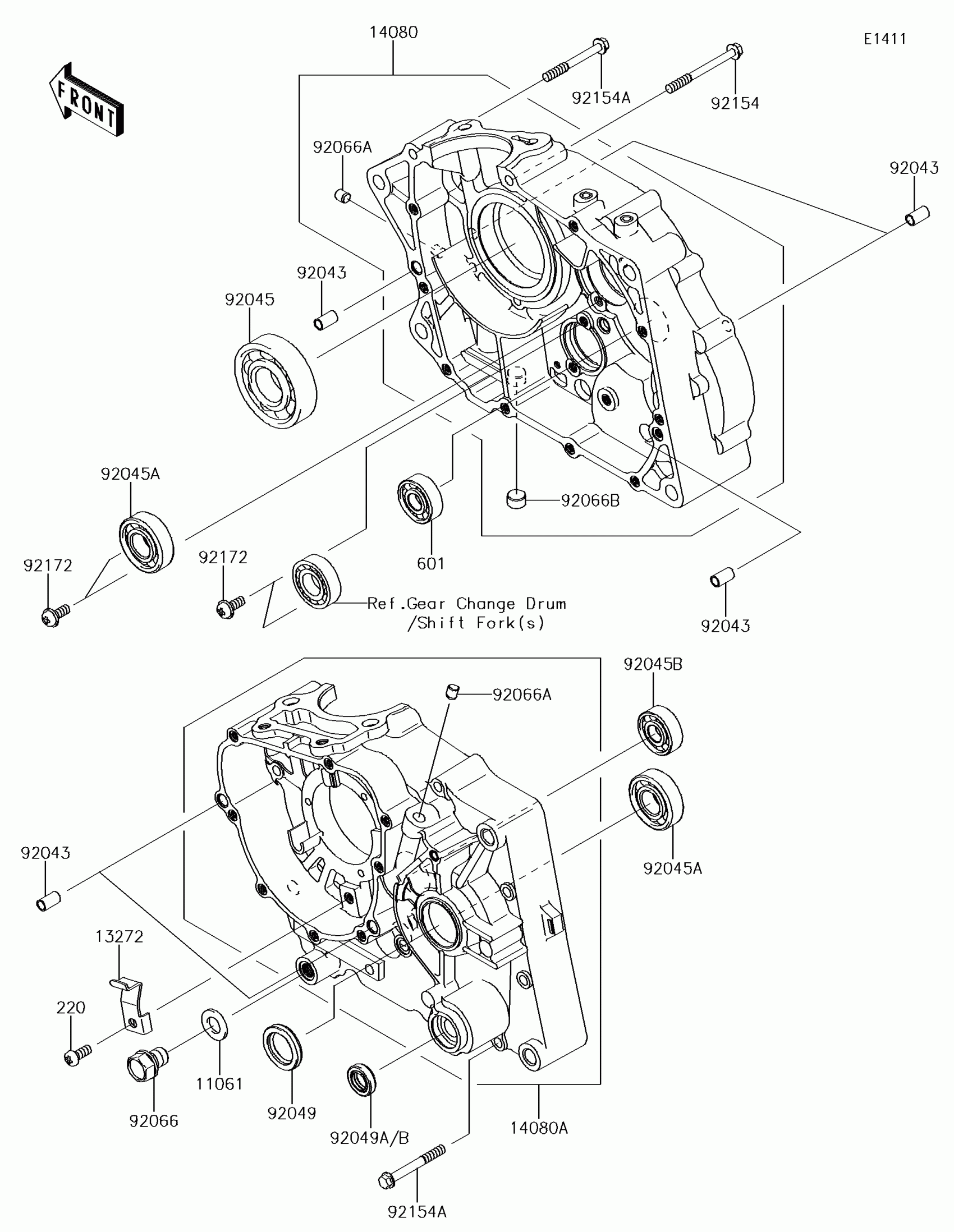

Kawasaki KLX150L (Latin America) Crankcase Diagram

Description

Price

11061

GASKET,DRAIN PLUG

11061-0265

$5.89

13272

PLATE

13272-1384

$4.10

14080

CRANKCASE,RH

14080-0251

$112.40

14080A

CRANKCASE,LH

14080-0295

$169.12

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.48

601

BEARING-BALL

601A6201

$10.69

92043

PIN,6.2X8X14

92043-0099

$3.71

92045

BEARING-BALL

92045-0018

$45.16

92045A

BEARING-BALL,#6203C2

92045-0745

$8.92

92045B

BEARING-BALL,6201ZC3/5C

92045-1308

$13.99

92049

SEAL-OIL

92049-0011

$1.19

92049B

SEAL-OIL

92049-1431

Unavailable

92066

PLUG,OIL DRAIN,12X15

92066-0768

$5.01

92066A

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92066B

PLUG

92066-1110

$6.51

92154

BOLT,6X60

92154-1161

$1.03

92154A

BOLT,6X50

92154-1168

$0.95

92172

SCREW,6X14

92172-0850

$0.79
