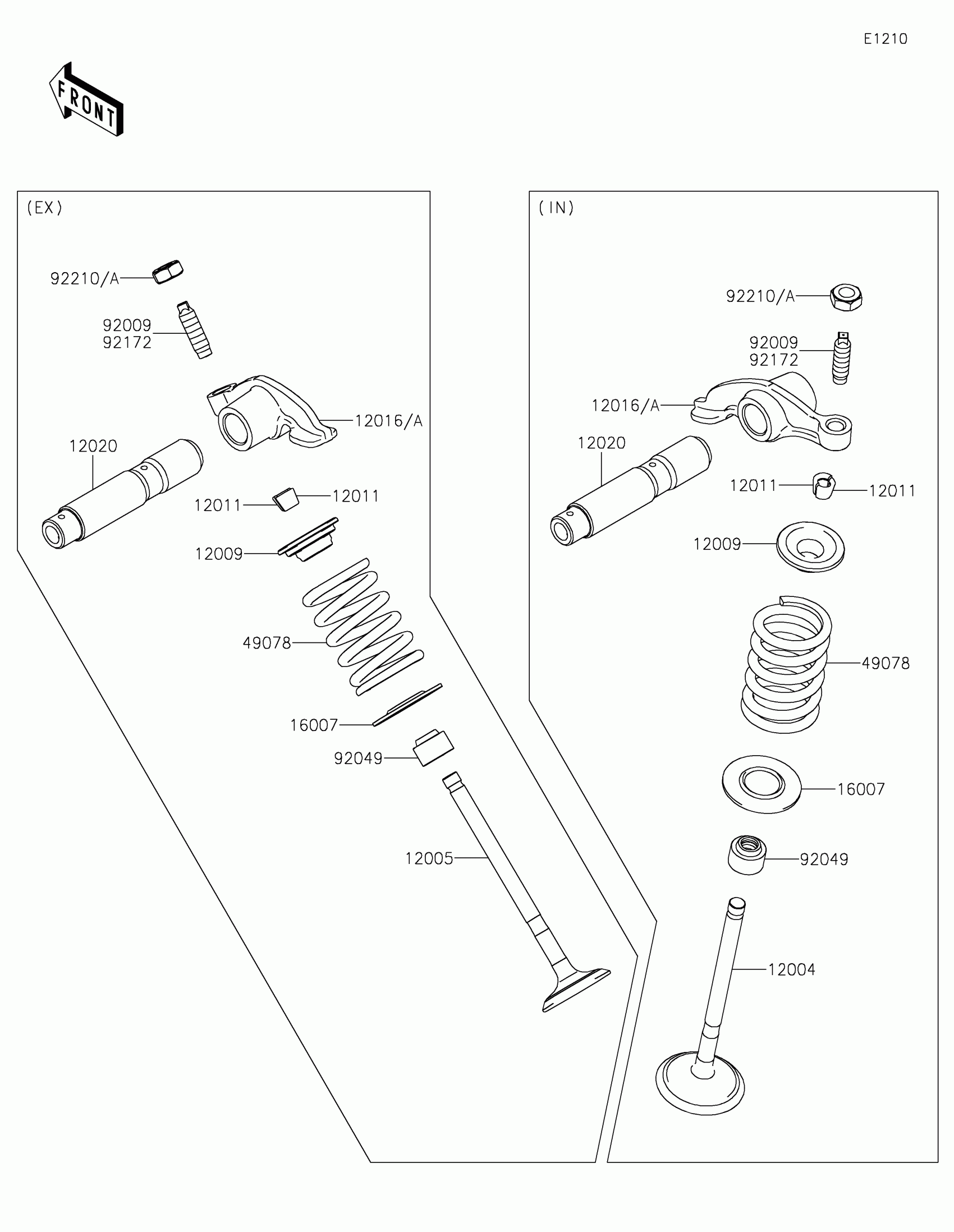

Kawasaki KLX150L (Indonesia Only) Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-0775

$37.80

12005

VALVE-EXHAUST

12005-0725

$46.33

12009

RETAINER-VALVE SPRING

12009-0018

$8.36

12011

COLLET

12011-1051

$1.96

12016

ARM-ROCKER

12016-0725

$52.78

12016A

ARM-ROCKER

12016-0749

$50.82

12020

SHAFT-ROCKER

12020-0015

$12.96

16007

SEAT-SPRING

16007-1223

$0.39

49078

SPRING-ENGINE VALVE

49078-0760

$8.60

92009

SCREW,VALVE ADJUST

92009-1109

$2.29

92049

SEAL-OIL

92049-0139

$6.12

92172

SCREW,VALVE ADJUST

92172-1605

$52.78

92210

NUT,VALVE ADJUST LOCK

92210-1491

$1.00

92210A

NUT,VALVE ADJUST LOCK

92210-2205

$1.91
