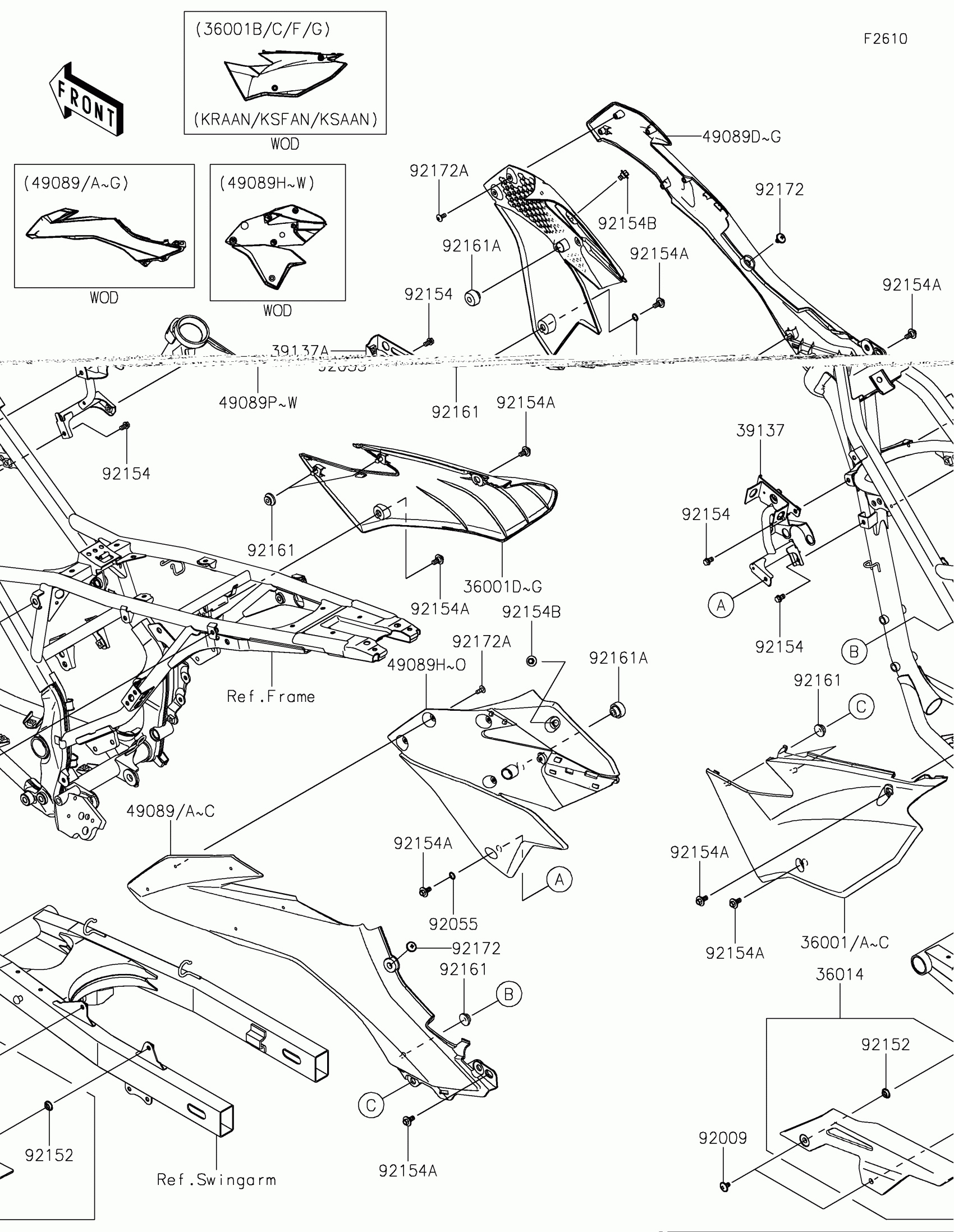

Kawasaki KLX150L (Indonesia Only) Side Covers/Chain Cover Diagram

Description

Price

36001B

COVER-SIDE,LH,B.GRAY

36001-0723-67A

Unavailable

36001F

COVER-SIDE,RH,B.GRAY

36001-0724-67A

Unavailable

36014

CASE-CHAIN

36014-0560

$17.48

39137

STAY-COMP,LH

39137-0722

$60.53

39137A

STAY-COMP,RH

39137-0723

$49.92

49089C

SHROUD-ENGINE,LH,UPP,EBONY

49089-1159-68L

Unavailable

49089G

SHROUD-ENGINE,RH,UPP,EBONY

49089-1160-68L

Unavailable

49089H

SHROUD-ENGINE,LH,LWR,O.BLUE

49089-1161-274

Unavailable

49089J

SHROUD-ENGINE,LH,LWR,D.BLUE

49089-1161-63K

Unavailable

49089K

SHROUD-ENGINE,LH,LWR,V.ORANGE

49089-1161-63L

Unavailable

49089M

SHROUD-ENGINE,LH,LWR,N.GREEN

49089-1161-67F

Unavailable

49089P

SHROUD-ENGINE,RH,LWR,O.BLUE

49089-1162-274

Unavailable

49089R

SHROUD-ENGINE,RH,LWR,D.BLUE

49089-1162-63K

Unavailable

49089S

SHROUD-ENGINE,RH,LWR,V.ORANGE

49089-1162-63L

Unavailable

49089U

SHROUD-ENGINE,RH,LWR,N.GREEN

49089-1162-67F

Unavailable

92009

SCREW,6X10

92009-1729

$0.22

92055

RING-O

92055-1023

$3.92

92152

COLLAR,8.8X16X4

92152-1731

$5.65

92154

BOLT,FLANGED,6X10

92154-0459

$7.65

92154A

BOLT,FLANGED,6X13

92154-4411

$3.74

92154B

BOLT,FLANGED,6X10

92154-7051

$3.16

92161

DAMPER

92161-1531

$3.02

92161A

DAMPER

92161-2444

$4.67

92172

SCREW,5X16

92172-0814

Unavailable

92172A

SCREW,5X12

92172-1095

$0.63
