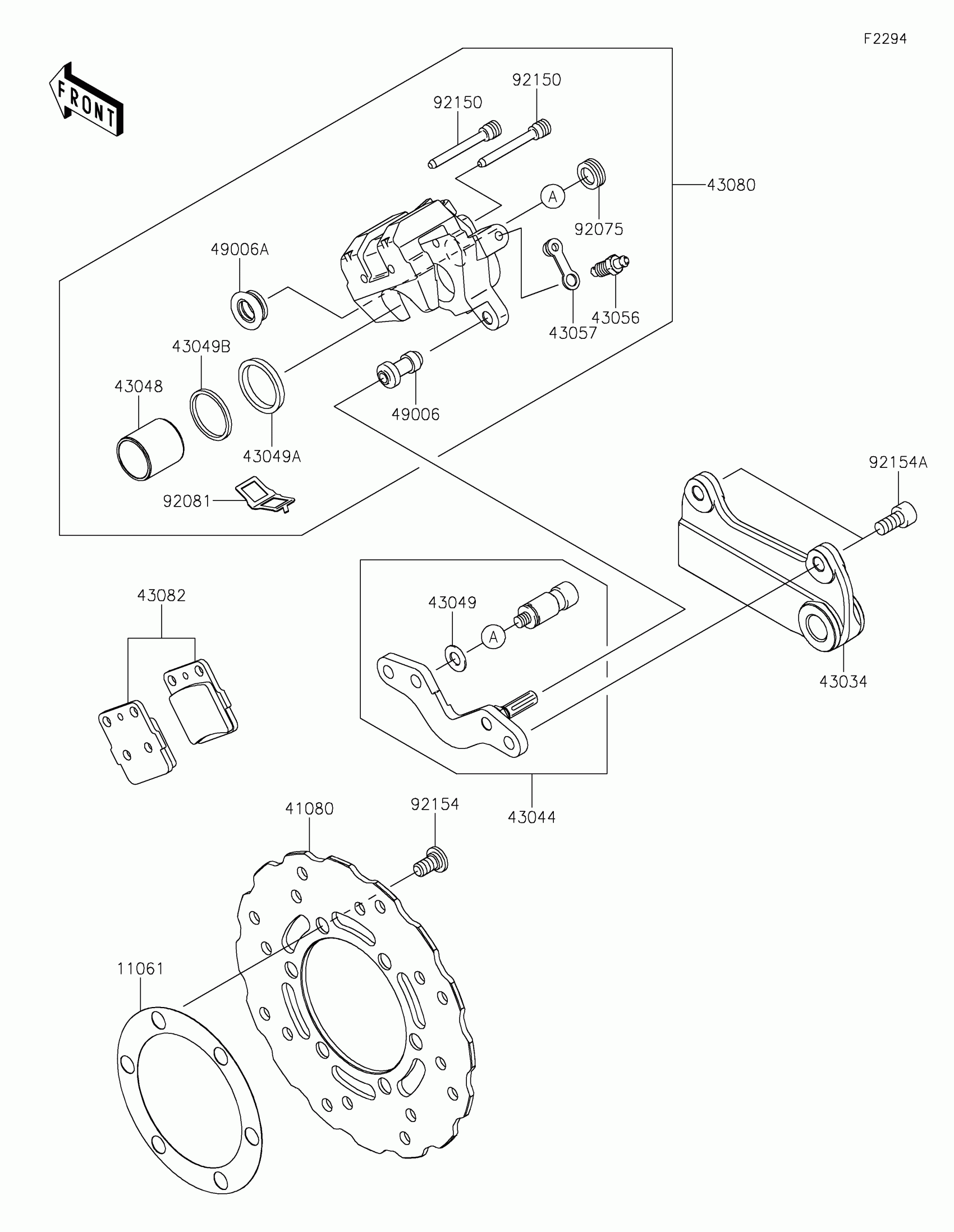

Kawasaki KLX150L (Indonesia Only) Rear Brake Diagram

Description

Price

11061

GASKET

11061-1000

$12.16

41080

DISC,RR

41080-0743

$234.53

43034

HOLDER-BRAKE

43034-0123

$69.36

43044

HOLDER-COMP-CALIPER,RR

43044-1076

$49.73

43048

PISTON-CALIPER

43048-1090

$66.83

43049

PACKING

43049-1025

$5.46

43049A

PACKING,PISTON SEAL

43049-1060

$19.45

43049B

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,RR

43080-0078

$126.80

43082

PAD-ASSY-BRAKE

43082-0159

$98.32

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1089

$7.38

92075

DAMPER

92075-1414

$7.34

92081

SPRING,PAD

92081-1502

$8.51

92150

BOLT

92150-1144

$9.91

92154

BOLT,SOCKET,8X15

92154-1181

$5.00

92154A

BOLT,SOCKET,8X16

92154-4188

$4.18
