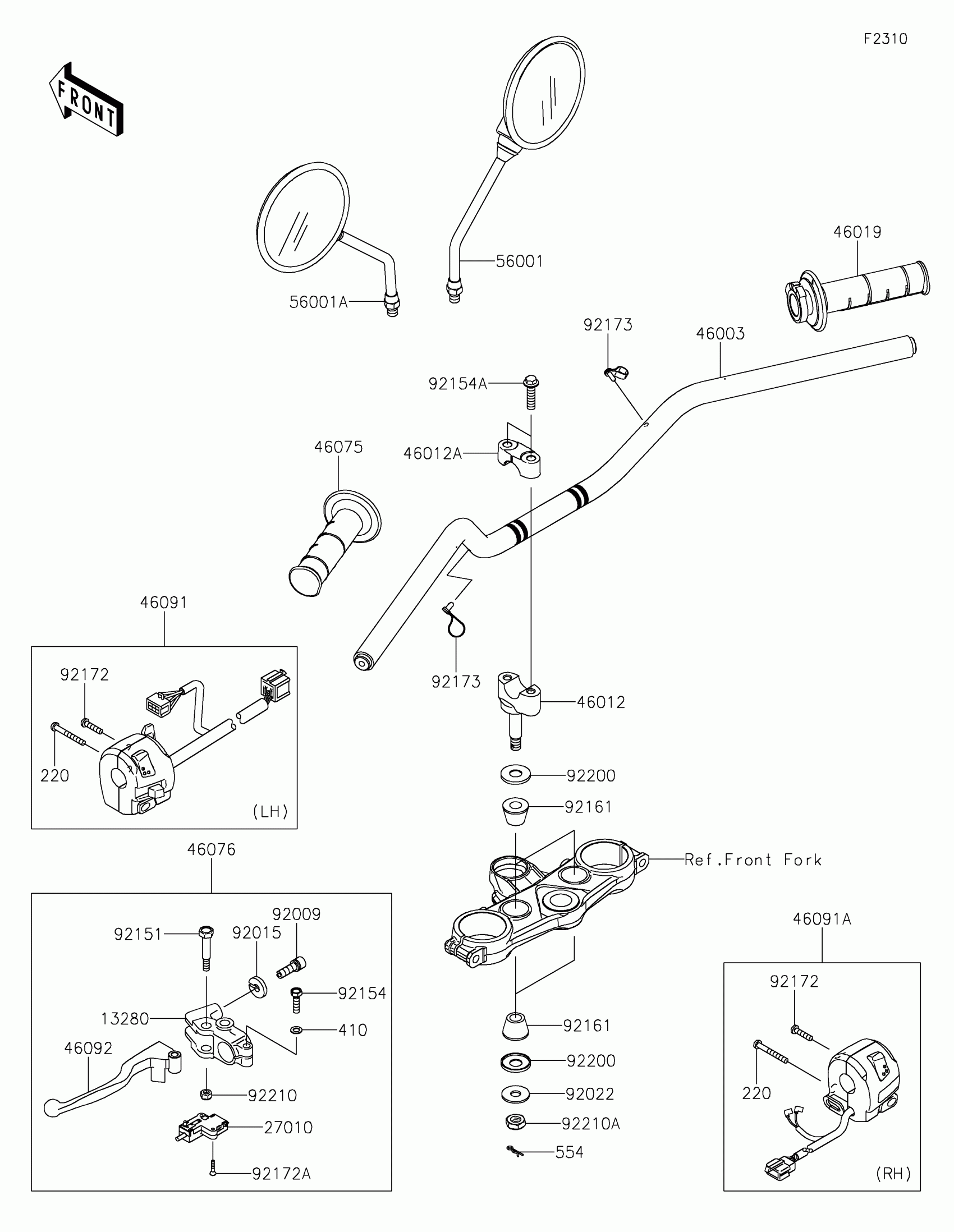

Kawasaki KLX150L (Indonesia Only) Handlebar(KRFNN/KSFNN/KSFAN) Diagram

Description

Price

13280

HOLDER,CLUTCH LEVER

13280-0105

$37.17

27010

SWITCH,CLUTCH

27010-0729

$32.97

46003

HANDLE,P.SILVER

46003-0812-458

$124.05

46012

HOLDER-HANDLE,LWR,P.SILVER

46012-0075-458

$30.12

46012A

HOLDER-HANDLE,UPP,P.SILVER

46012-0380-458

$23.51

46019

GRIP-ASSY,THROTTLE

46019-0027

Unavailable

46075

GRIP,LH

46075-0644

$29.10

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0148

$61.01

46091

HOUSING-ASSY-CONTROL,LH

46091-0643

$139.08

46091A

HOUSING-ASSY-CONTROL,RH

46091-0644

$89.33

46092

LEVER-GRIP,CLUTCH

46092-0050

$6.50

56001

MIRROR-ASSY,RH

56001-0166

$46.49

56001A

MIRROR-ASSY,LH

56001-0169

$46.49

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$15.16

92015

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$9.91

92022

WASHER,10.2X28X2

92022-1088

$4.69

92151

BOLT,LEVER SET

92151-1986

$6.22

92154

BOLT,UPSET,6X22

92154-1422

$4.69

92154A

BOLT,FLANGED,8X30

92154-3762

$3.90

92161

DAMPER,12X26X19

92161-2116

$6.07

92172

SCREW-PAN-CROS,5X22

92172-0469

$4.78

92172A

SCREW-CSK-CROS,3X16

92172-1187

$3.65

92173

CLAMP,SPEED,L=58

92173-1077

$6.57

92200

WASHER,12.5X27.6X1.2

92200-0872

$5.52

92210

NUT,LOCK,6MM

92210-1551

$2.75

92210A

NUT,LOCK,10MM

92210-1672

$4.60

220

SCREW-PAN-CROS,5X40

220AB0540

$2.06

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.77

554

PIN-SNAP

554DA0800

$1.36
