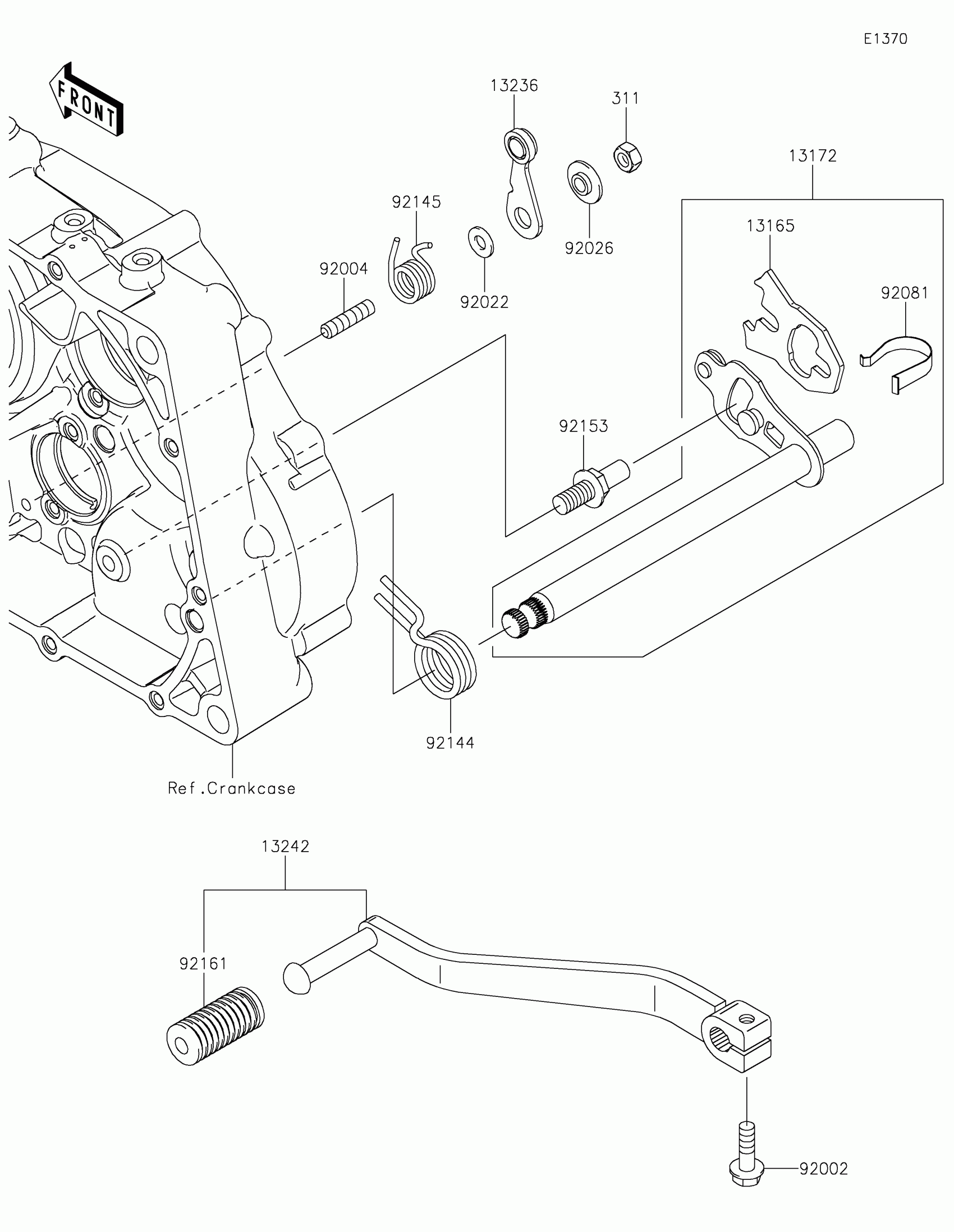

Kawasaki KLX150L (Indonesia Only) Gear Change Mechanism Diagram

Description

Price

13165

PAWL,CHANGE SHAFT

13165-0003

$4.09

13172

SHAFT-ASSY-CHANGE

13172-0009

$74.13

13236

LEVER-COMP,DRUM POSITION

13236-0739

$10.81

13242

LEVER-ASSY-CHANGE,PEDAL

13242-0243

$44.46

92002

BOLT,6X20

92002-1237

$4.31

92004

STUD,6X12

92004-0032

$1.79

92022

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-0750

$5.52

92081

SPRING,CHANGE LEVER

92081-1829

$8.79

92144

SPRING,CHANGE PEDAL RETURN

92144-1345

$17.44

92145

SPRING

92145-0349

$7.49

92153

BOLT,8X15.5

92153-1144

$1.63

92161

DAMPER,CHANGE PEDAL

92161-2409

$5.00

311

NUT-HEX,6MM

311BA0600

$2.23
