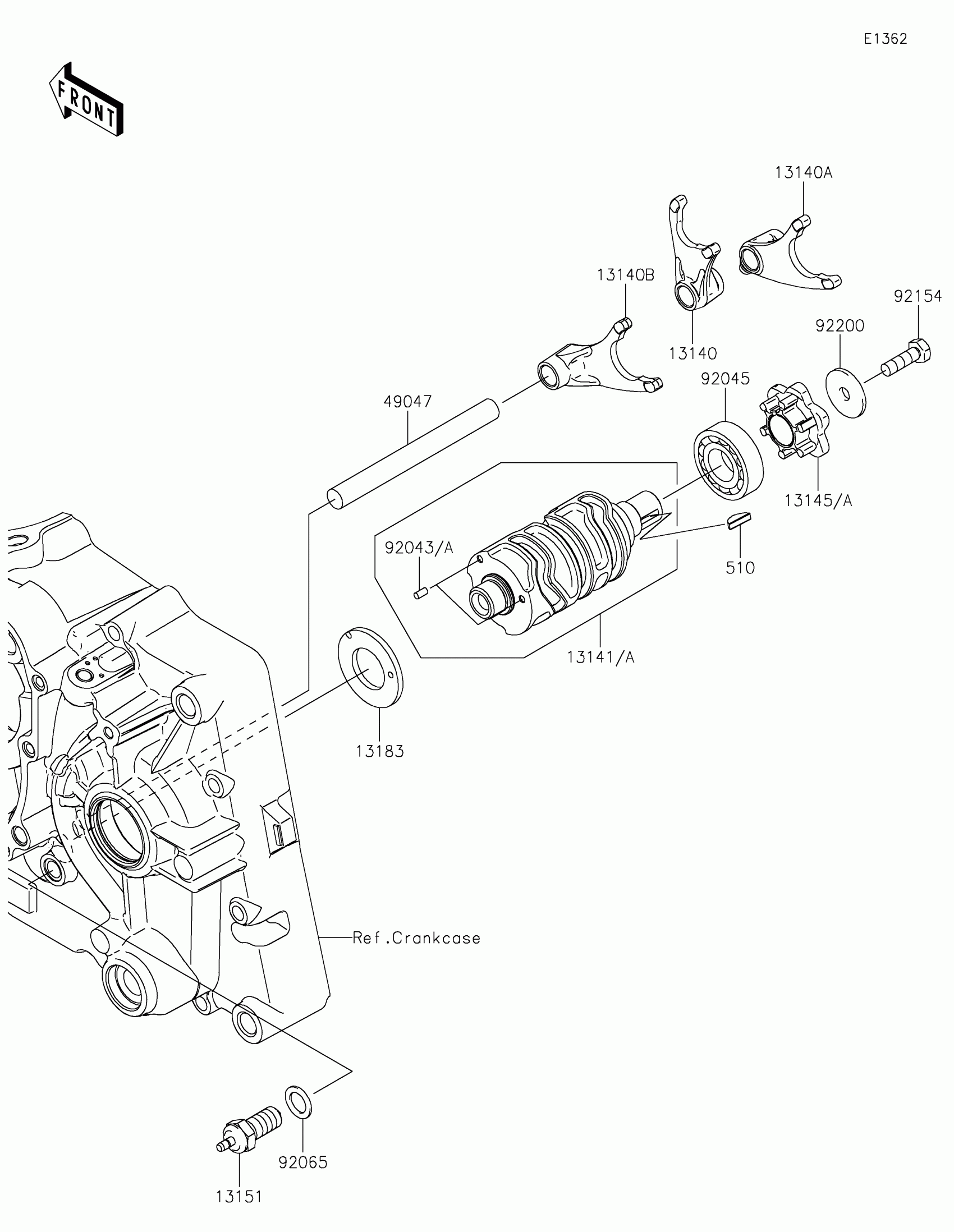

Kawasaki KLX150L (Indonesia Only) Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13140

FORK-SHIFT,INPUT

13140-0698

$47.72

13140A

FORK-SHIFT,OUTPUT RH

13140-0699

$47.72

13140B

FORK-SHIFT,OUTPUT LH

13140-0700

$47.72

13141

DRUM-CHANGE

13141-0572

$81.07

13141A

DRUM-CHANGE

13141-0620

$78.10

13145

CAM-CHANGE DRUM

13145-0045

$44.38

13145A

CAM-CHANGE DRUM

13145-0581

$42.74

13151

SWITCH-COMP,NEUTRAL

13151-1099

$3.58

13183

PLATE,CHANGE

13183-1066

$15.14

49047

ROD-SHIFT

49047-0639

$4.86

92043

PIN-DOWEL,3X6

92043-0919

$1.34

92043A

PIN-DOWEL,3X6

92043-1829

$1.29

92045

BEARING-BALL,17X35X10

92045-0126

$21.00

92065

GASKET,10.5X16X1

92065-058

$3.03

92154

BOLT,UPSET,6X20

92154-1166

$1.47

92200

WASHER,6.5X24X2

92200-0838

$1.68

510

KEY-WOODRUFF

510A3200

$1.87
