Description

Price

11061

GASKET,FUEL GAUGE

11061-0279

$13.48

14069

BREATHER,FUEL TANK

14069-1004

$10.19

32052

BRACKET-TANK

32052-0735

$4.10

43049

PACKING,TAP VALVE

43049-1091

$7.26

51001

TANK-COMP-FUEL,F.S.BLACK

51001-0927-25Q

$645.99

51023

TAP-ASSY,FUEL

51023-0738

$86.37

51049

CAP-TANK,FUEL

51049-0766

$108.49

52005

GAUGE,FUEL TANK

52005-0780

$98.11

55020

GUARD

55020-0950

$7.52

92001

BOLT,6X20

92001-1091

$3.92

92022

WASHER,5.1X10X1.0

92022-1977

$3.65

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP

92037-1601

$12.92

92055

RING-O,FUEL TAP PACKING

92055-1112

$5.00

92055A

RING-O,TAP LEVER

92055-1419

$5.00

92093

SEAL,RO 2X12X4.8

92093-0722

$4.80

92152

COLLAR

92152-3782

$4.35

92154

BOLT,FLANGED,6X12

92154-0979

$0.85

92154A

BOLT

92154-1134

$3.71

92161

DAMPER

92161-0705

$2.32

92161A

DAMPER

92161-1533

$10.28

92161B

DAMPER

92161-1817

Unavailable

92161C

DAMPER

92161-2111

$7.34

92172

SCREW,5X10

92172-0496

$4.20

92192

TUBE,6X9X620

92192-1085

$13.37

92192A

TUBE,6X9X56

92192-1442

Unavailable

92192B

TUBE,6X9X260

92192-1443

Unavailable

92200

WASHER,6.5X11.5X0.8

92200-0177

Unavailable

132

BOLT-FLANGED-SMALL,6X8

132BB0608

$3.67

220

SCREW-PAN-CROS,3X8

220AA0308

$0.59

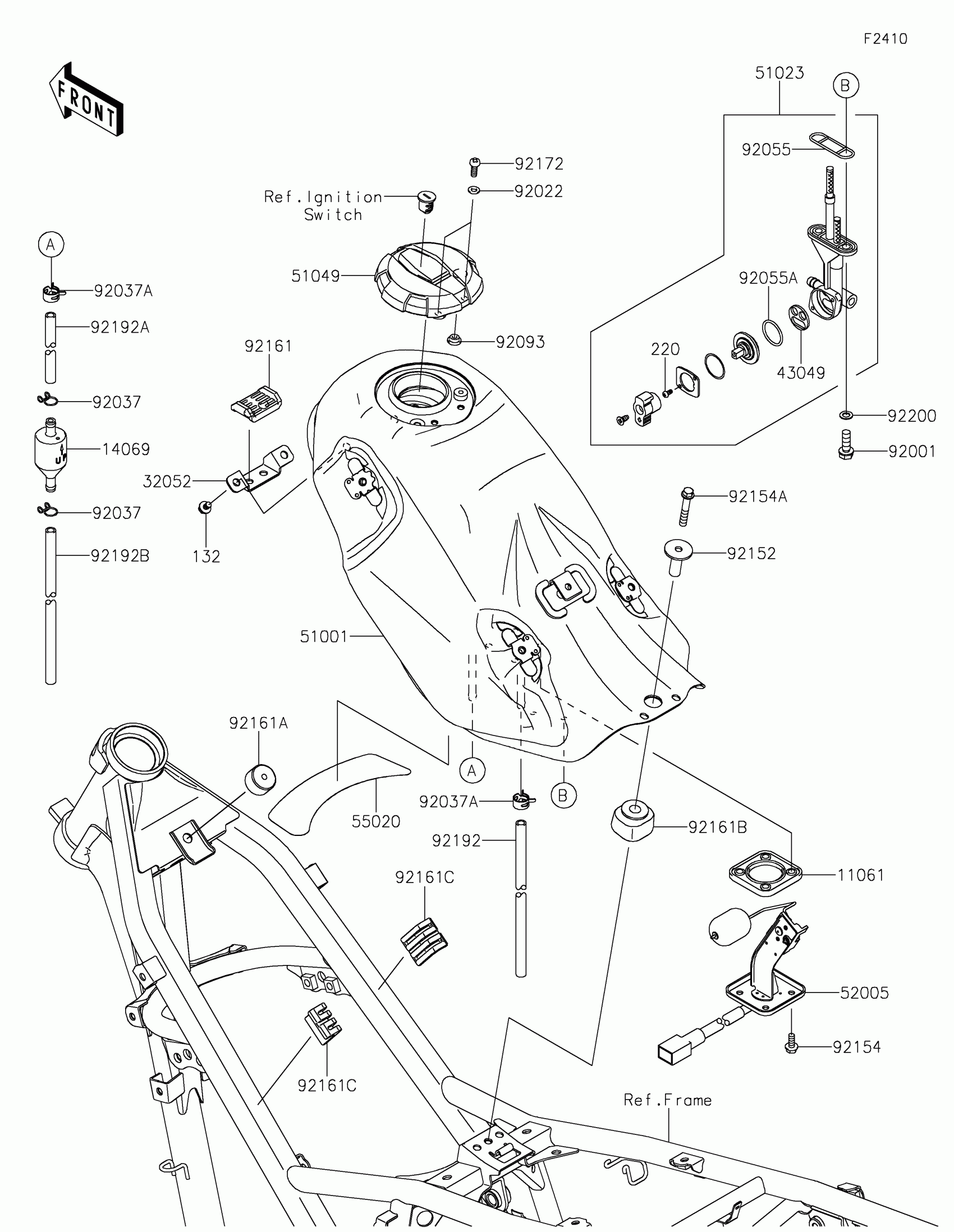

Kawasaki KLX150L (Indonesia Only) Fuel Tank Diagram

GASKET,FUEL GAUGE

BREATHER,FUEL TANK

BRACKET-TANK

PACKING,TAP VALVE

TANK-COMP-FUEL,F.S.BLACK

TAP-ASSY,FUEL

CAP-TANK,FUEL

GAUGE,FUEL TANK

GUARD

BOLT,6X20

WASHER,5.1X10X1.0

CLAMP,TUBE

CLAMP

RING-O,FUEL TAP PACKING

RING-O,TAP LEVER

SEAL,RO 2X12X4.8

COLLAR

BOLT,FLANGED,6X12

BOLT

DAMPER

DAMPER

DAMPER

DAMPER

SCREW,5X10

TUBE,6X9X620

TUBE,6X9X56

TUBE,6X9X260

WASHER,6.5X11.5X0.8

BOLT-FLANGED-SMALL,6X8

SCREW-PAN-CROS,3X8
