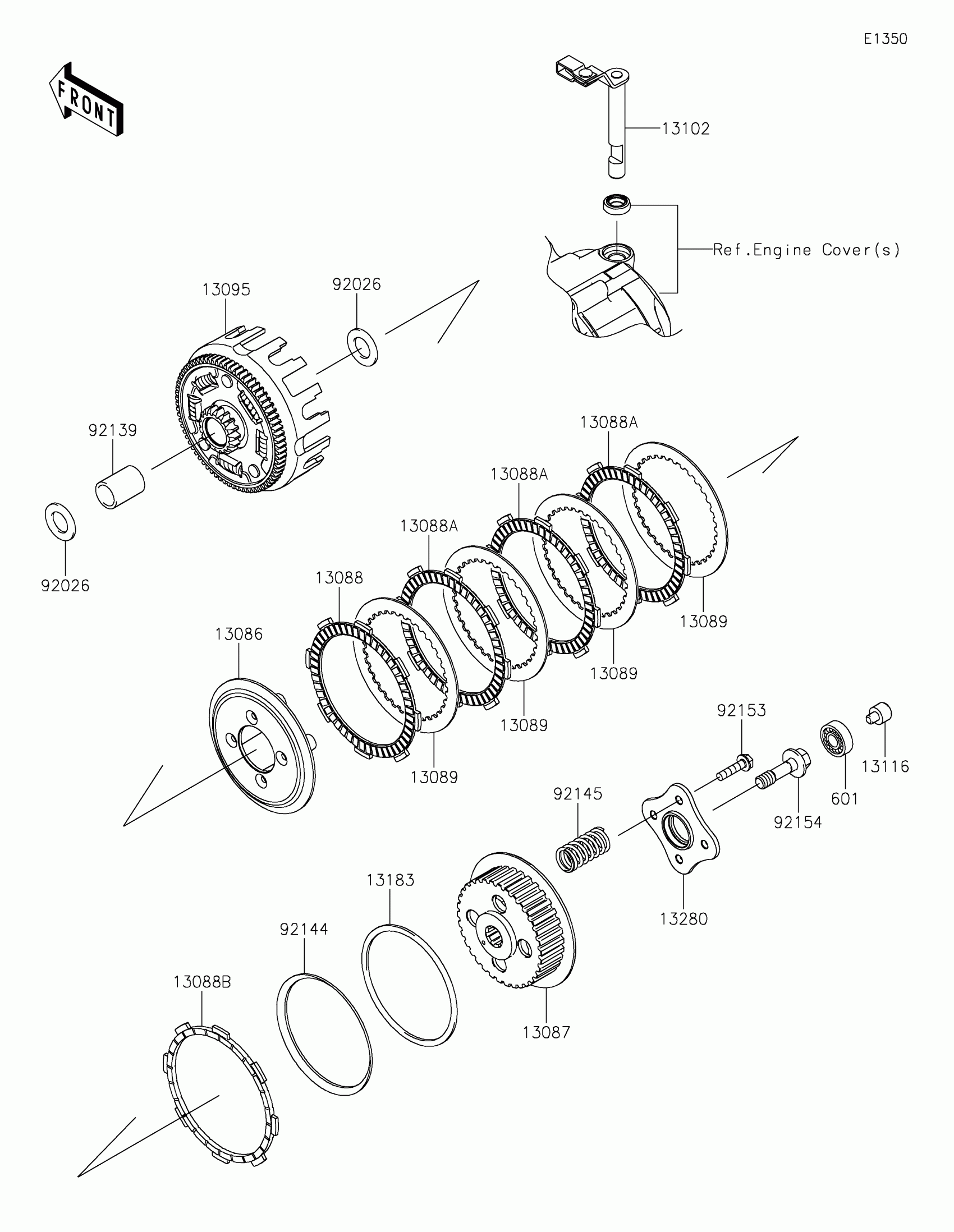

Kawasaki KLX150L (Indonesia Only) Clutch Diagram

Description

Price

13086

WHEEL-CLUTCH

13086-1070

$25.95

13087

HUB-CLUTCH

13087-1161

$41.37

13088

PLATE-FRICTION

13088-0041

$9.43

13088A

PLATE-FRICTION

13088-0625

$14.71

13088B

PLATE-FRICTION,ID=100

13088-1077

$11.05

13089

PLATE-CLUTCH

13089-1108

$2.08

13095

HOUSING-COMP-CLUTCH

13095-0615

$187.00

13102

RELEASE-COMP-CLUTCH

13102-0088

$32.40

13116

ROD-PUSH

13116-0749

Unavailable

13183

PLATE

13183-1274

$7.69

13280

HOLDER,CLUTCH SPRING

13280-0920

$10.22

92026

SPACER

92026-0853

$2.20

92139

BUSHING,17X22X30

92139-0871

$21.34

92144

SPRING,CLUTCH

92144-1289

$14.63

92145

SPRING

92145-0759

$5.75

92153

BOLT,6X25

92153-1067

$1.57

92154

BOLT,FLANGED,10X36

92154-1056

$3.27

601

BEARING-BALL

601A6000

$9.76
