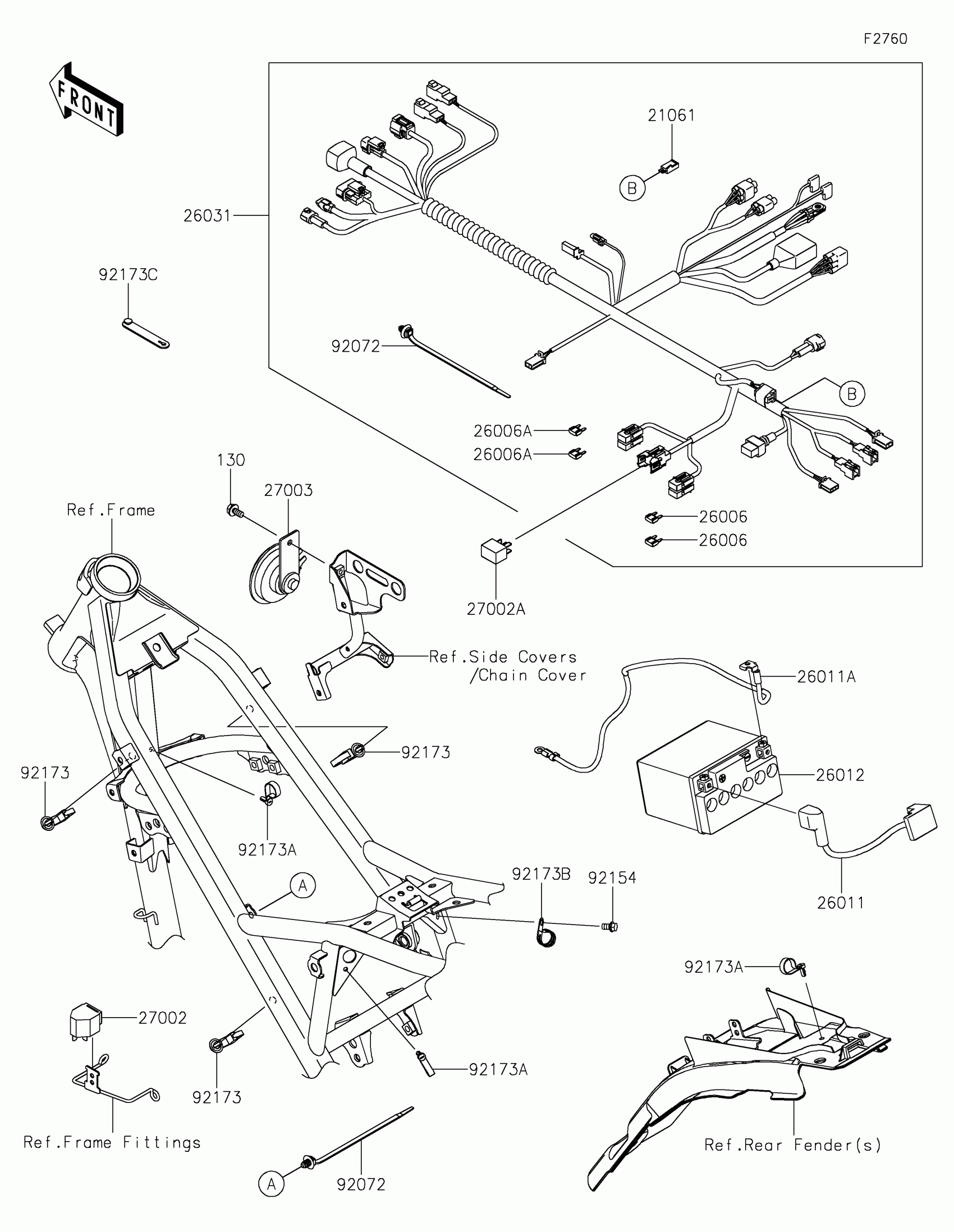

Kawasaki KLX150L (Indonesia Only) Chassis Electrical Equipment Diagram

Description

Price

21061

RECTIFIER

21061-0001

$29.24

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,5A

26006-0048

$1.26

26011

WIRE-LEAD,BATTERY(+)

26011-1991

$38.11

26011A

WIRE-LEAD,BATTERY(-)

26011-1992

$38.11

26012

BATTERY,YTX5L-BS,12V 4AH

26012-0905

Unavailable

26031

HARNESS,MAIN

26031-4071

$576.56

27002

RELAY-ASSY,TURN SIGNAL

27002-0031

$25.81

27002A

RELAY-ASSY

27002-0033

$49.39

27003

HORN

27003-0124

$81.16

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92154

BOLT,FLANGED,6X10

92154-0459

$7.65

92173

CLAMP

92173-0105

$5.05

92173A

CLAMP,SPEED,L=58

92173-1077

$6.57

92173B

CLAMP

92173-1424

Unavailable

92173C

CLAMP

92173-2199

$1.48

130

BOLT-FLANGED,6X12

130BA0612

$1.72
