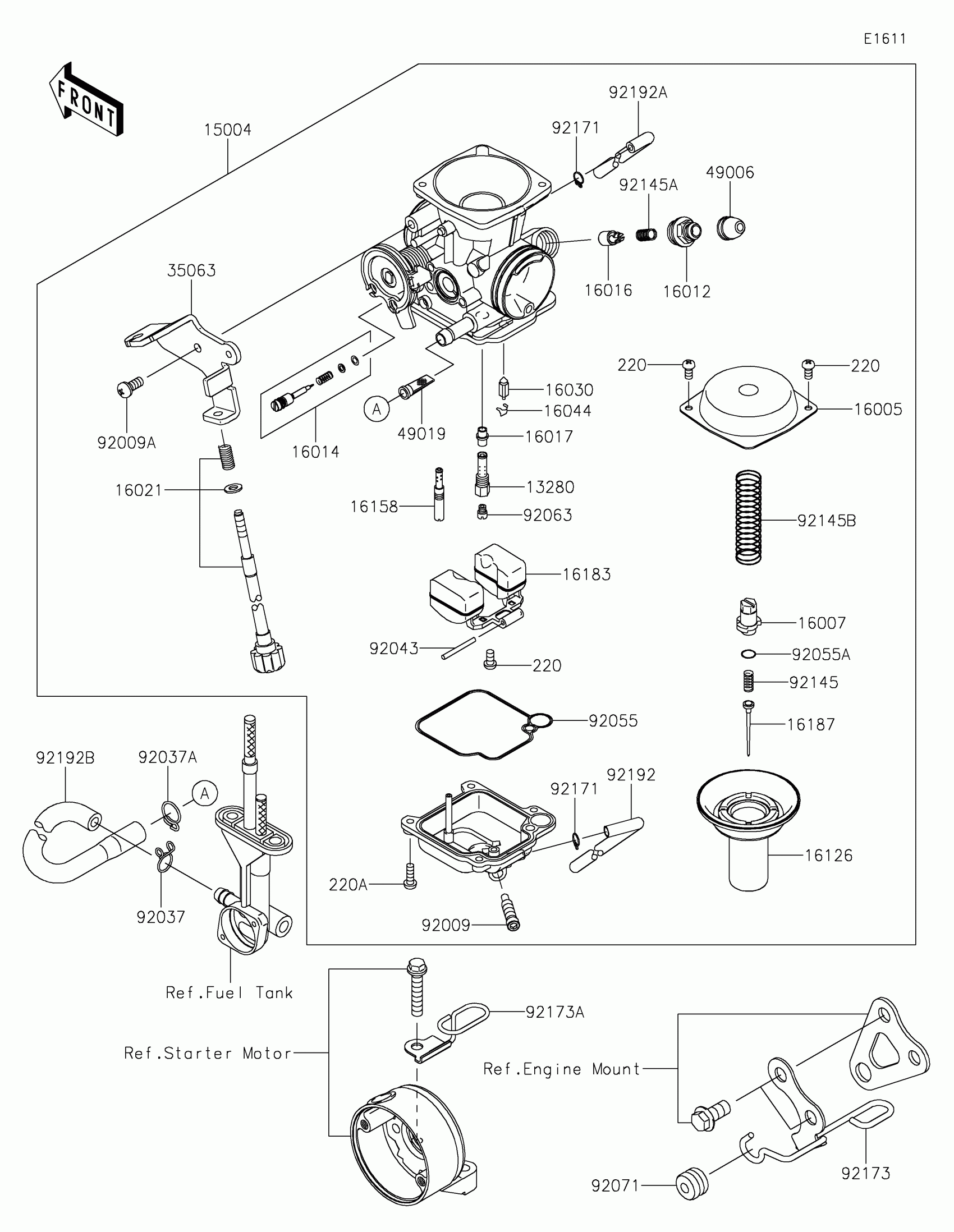

Kawasaki KLX150L (Indonesia Only) Carburetor Diagram

#

Description
Price

13280

HOLDER

13280-0235

$8.39

15004

CARBURETOR-ASSY

15004-1117

$471.39

16005

TOP-CHAMBER

16005-0003

$8.12

16007

SEAT-SPRING

16007-0020

$8.12

16012

CAP-STARTER PLUNGER

16012-0003

$11.12

16014

SCREW-PILOT AIR

16014-0016

$13.41

16016

PLUNGER,STARTER

16016-0014

$16.03

16017

JET-NEEDLE

16017-0017

$13.31

16021

SCREW-THROTTLE STOP

16021-0022

$10.92

16030

VALVE-FLOAT

16030-0005

$51.16

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16126

VALVE

16126-0020

$69.50

16158

JET-SLOW

16158-0007

$83.87

16183

FLOAT-ASSY

16183-0004

$22.58

16187

NEEDLE-JET

16187-0586

$34.88

35063

STAY

35063-0684

$21.15

49006

BOOT

49006-0039

$5.97

49019

FILTER-FUEL

49019-1097

$7.03

92009

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92009A

SCREW,PLATE

92009-1865

$1.97

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP

92037-1935

$4.75

92043

PIN,FLOAT

92043-1207

$10.71

92055

RING-O,CHAMBER GASKET

92055-0084

$15.86

92055A

RING-O

92055-1223

$3.79

92063

JET-MAIN,#112

92063-0020

$14.63

92071

GROMMET

92071-0038

$3.49

92145

SPRING

92145-0309

$4.63

92145A

SPRING,COIL

92145-0313

$12.24

92145B

SPRING

92145-0936

$17.51

92171

CLAMP

92171-0494

$4.34

92173

CLAMP

92173-1066

$4.75

92173A

CLAMP

92173-2545

$13.54

92192

TUBE

92192-0233

$13.54

92192A

TUBE

92192-0876

$7.95

92192B

TUBE,TAP-ASSY-CARBURETOR

92192-1726

$5.71

220

SCREW-PAN-CROS,4X8

220AA0408

$0.63

220A

SCREW-PAN-CROS,4X12

220AA0412

$0.25
