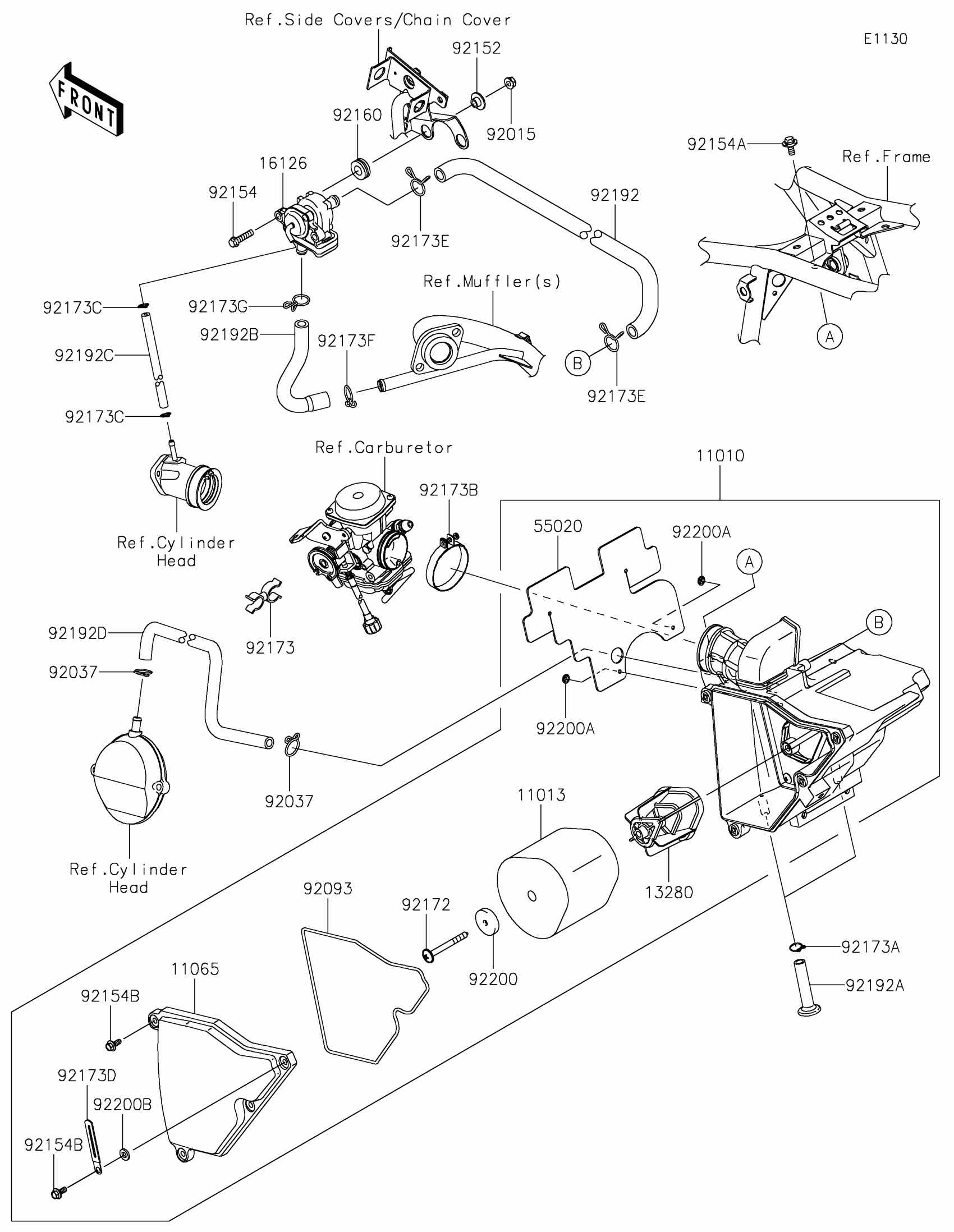

Kawasaki KLX150L (Indonesia Only) Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1843

$181.96

11013

ELEMENT-AIR FILTER

11013-0796

$7.22

11065

CAP

11065-0895

$17.10

13280

HOLDER

13280-0831

$31.36

16126

VALVE,AIR SWITCH

16126-0715

$118.33

55020

GUARD

55020-1861

$16.63

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP,12.5MM

92037-1271

$1.73

92093

SEAL

92093-0655

Unavailable

92152

COLLAR

92152-0854

$2.12

92154

BOLT,FLANGED,6X25

92154-1156

$1.68

92154A

BOLT,FLANGED,6X14

92154-1231

$2.09

92154B

BOLT,FLANGED,5X14

92154-1637

$3.51

92160

DAMPER

92160-1278

$3.35

92172

SCREW,6X60

92172-0915

$9.86

92173

CLAMP

92173-0081

$4.75

92173A

CLAMP,11.6MM

92173-0179

$1.10

92173B

CLAMP

92173-1104

$2.74

92173C

CLAMP

92173-1190

$2.10

92173D

CLAMP

92173-1424

Unavailable

92173E

CLAMP

92173-1563

$5.19

92173F

CLAMP

92173-1879

$1.47

92173G

CLAMP

92173-1880

$3.29

92192

TUBE,ASV-AIR CLEANER

92192-0474

$13.41

92192A

TUBE,A/C-DRAIN

92192-0943

$2.59

92192B

TUBE,ASV-EX PIPE

92192-1337

$10.69

92192C

TUBE,CARB. HOLDER-ASV

92192-2590

$7.51

92192D

TUBE,BREATHER

92192-2628

$7.51

92200

WASHER

92200-1692

$2.71

92200A

WASHER

92200-1693

$1.68

92200B

WASHER

92200-1695

$4.95
