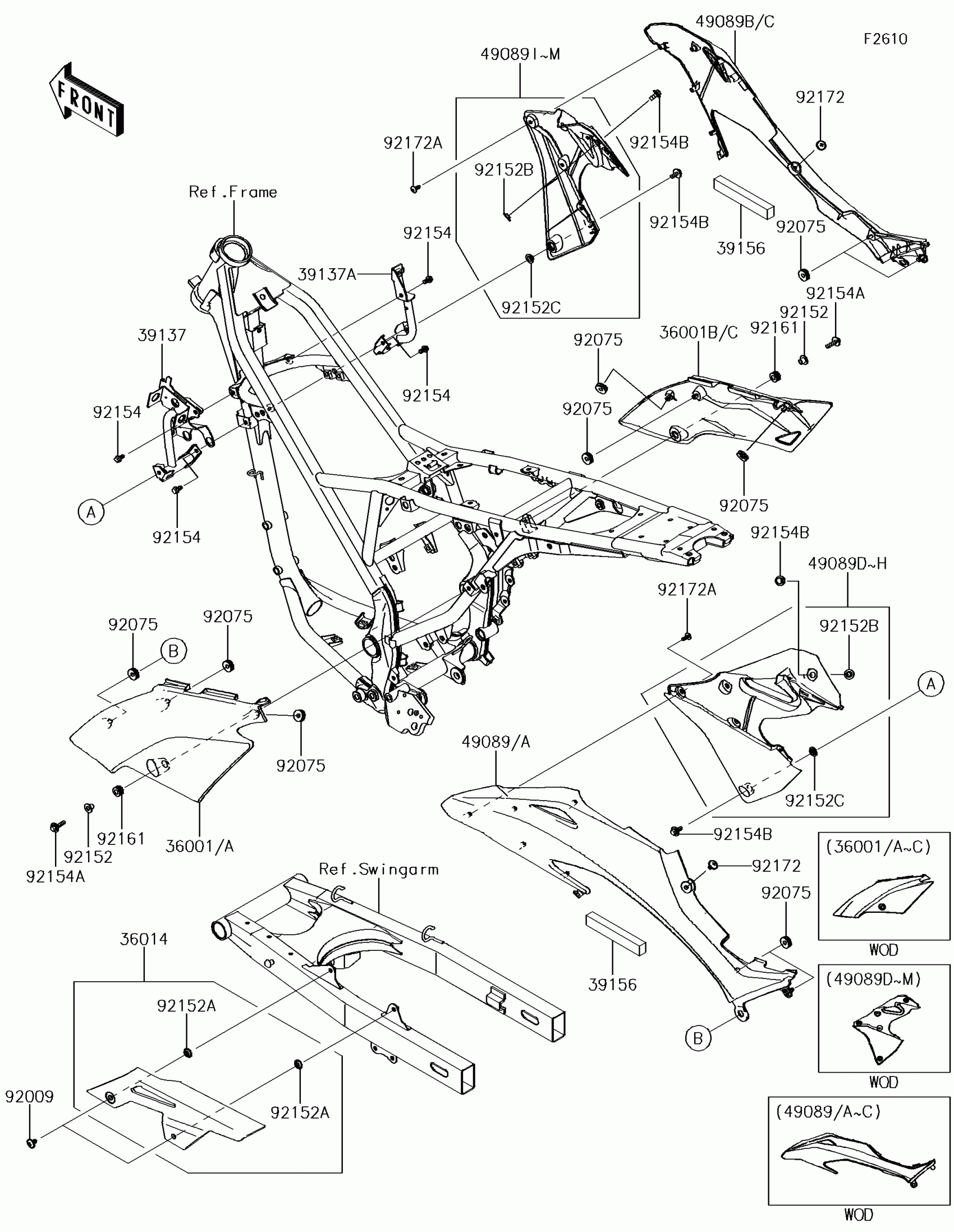

Kawasaki KLX150BF Side Covers/Chain Cover Diagram
#
Description
Price
36001A
COVER-SIDE,LH,EBONY
36001-0625-6C
$38.64
36001C
COVER-SIDE,RH,EBONY
36001-0626-6C
Unavailable
36014
CASE-CHAIN
36014-0560
$17.48
39137
STAY-COMP,LH,P.SILVER
39137-0620-458
Unavailable
39137A
STAY-COMP,RH,P.SILVER
39137-0663-458
Unavailable
39156
PAD
39156-0813
$1.93
49089A
SHROUD-ENGINE,LH,UPP,EBONY
49089-0868-6C
Unavailable
49089C
SHROUD-ENGINE,RH,UPP,EBONY
49089-0869-6C
Unavailable
49089F
SHROUD-ENGINE,LH,LWR,L.GREEN
49089-0870-290
Unavailable
49089H
SHROUD-ENGINE,LH,LWR,EBONY
49089-0870-6C
Unavailable
49089K
SHROUD-ENGINE,RH,LWR,L.GREEN
49089-0871-290
$42.39
49089M
SHROUD-ENGINE,RH,LWR,EBONY
49089-0871-6C
Unavailable
92009
SCREW,6X10
92009-1729
$0.22
92075
DAMPER
92075-1629
$5.00
92152
COLLAR,6.3X8.3X9.2
92152-1725
$5.98
92152A
COLLAR,8.8X16X4
92152-1731
$5.65
92152B
COLLAR,6.6X9X4
92152-1982
Unavailable
92152C
COLLAR,8.8X16X4
92152-2185
$5.65
92154
BOLT,FLANGED,6X10
92154-0459
$7.65
92154A
BOLT,FLANGED,6X22
92154-1184
$3.90
92154B
BOLT,FLANGED,6X14
92154-1231
$2.97
92161
DAMPER,8X16X8.6
92161-0685
$6.61
92172
SCREW,6X10
92172-0098
$2.80
92172A
SCREW,5X12
92172-1095
$0.63
