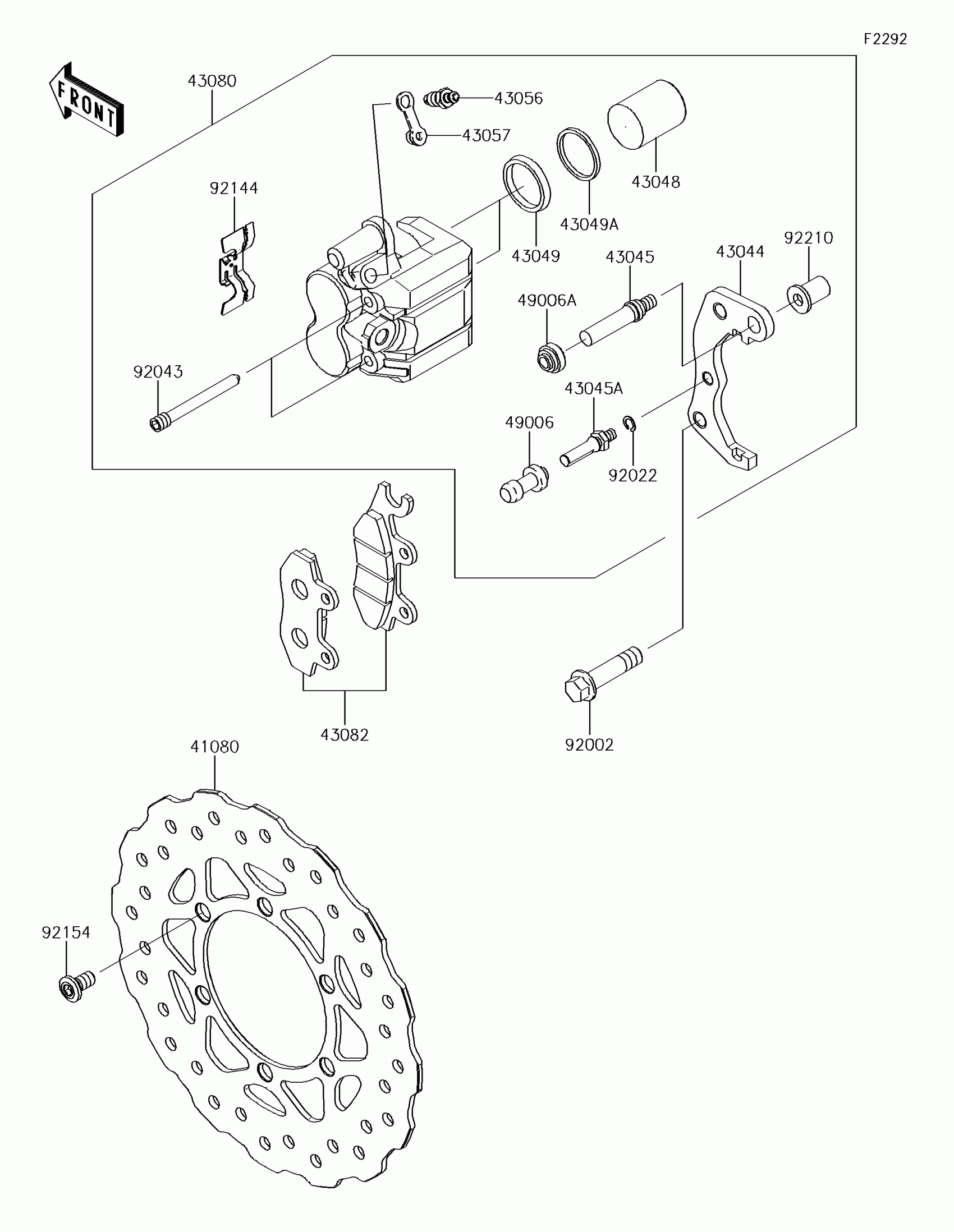

Kawasaki KLX150BF Front Brake Diagram

Description

Price

41080

DISC,FR

41080-0638

Unavailable

43044

HOLDER-COMP-CALIPER

43044-0049

$157.14

43045

SHAFT-CALIPER

43045-0004

$23.07

43045A

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-0010

$46.35

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR

43080-0124

$333.93

43082

PAD-ASSY-BRAKE

43082-0100

$55.55

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92002

BOLT,FLANGED,10X41

92002-1468

$8.86

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92154

BOLT,SOCKET,8X15

92154-1181

$5.00

92210

NUT

92210-0615

$6.26
