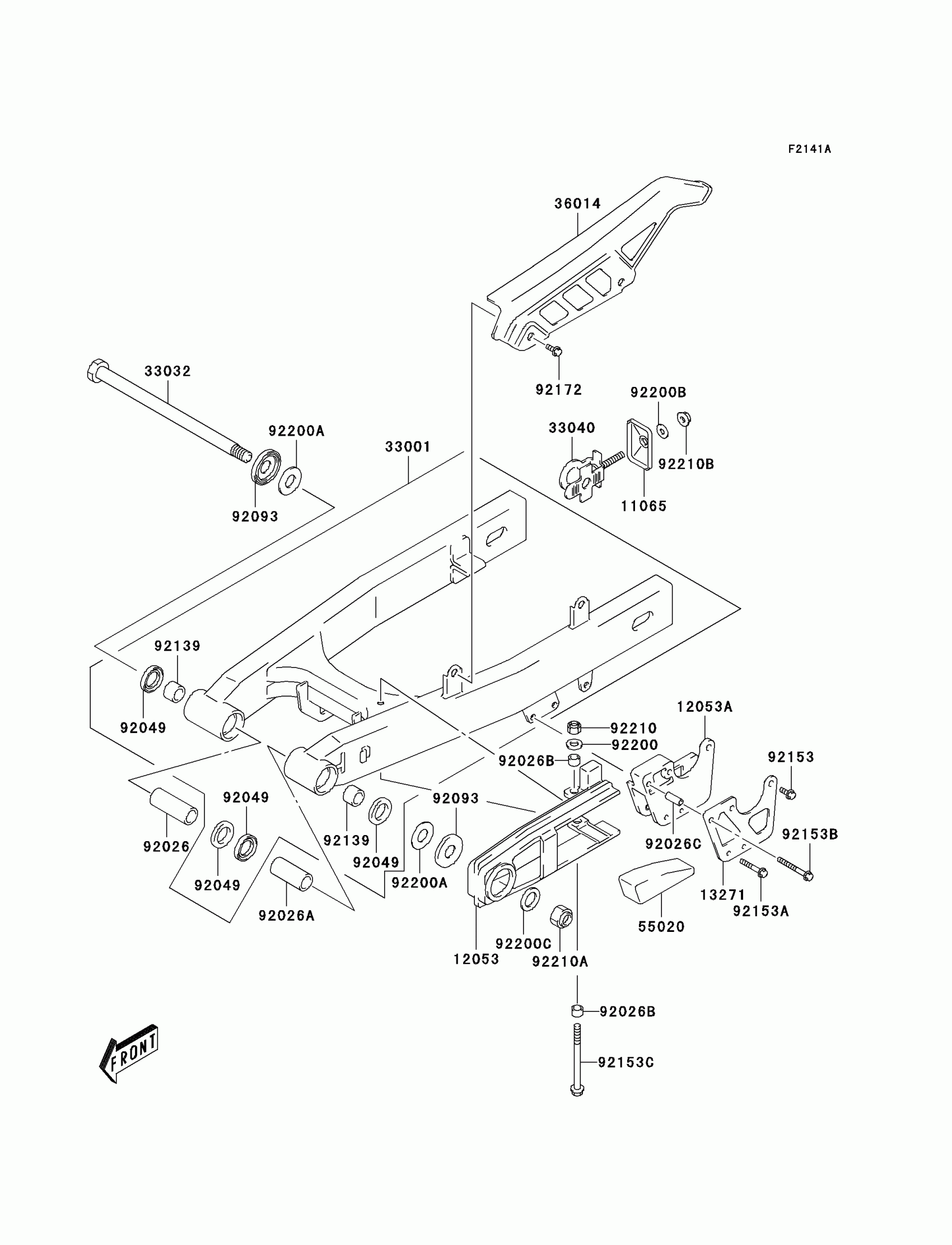

Kawasaki KLX125L Swingarm(B2/B3) Diagram

#

Description
Price

11065

CAP,CHAIN ADJUSTER GUIDE

11065-S018

$6.47

12053

GUIDE-CHAIN

12053-S008

$29.83

12053A

GUIDE-CHAIN,CHAIN

12053-S011

$36.79

13271

PLATE,CHAIN,GUIDE

13271-S023

$33.54

33001

ARM-COMP-SWING,B.SILVER

33001-S004-530

$458.36

33032

SHAFT-SWING ARM

33032-S001

$35.80

33040

ADJUSTER-CHAIN

33040-S001

$31.72

36014

CASE-CHAIN

36014-S001

$69.37

55020

GUARD,CHAIN,GUIDE

55020-S007

$19.80

92026

SPACER,SWING ARM PIVOT,RH

92026-S042

$24.50

92026A

SPACER,SWING ARM PIVOT,LH

92026-S043

$21.22

92026B

SPACER,CHAIN

92026-S052

$3.01

92026C

SPACER,CHAIN GUIDE

92026-S054

$2.79

92049

SEAL-OIL,SWINGARM

92049-S022

$6.47

92093

SEAL,REAR SWINGARM

92093-S012

$9.32

92139

BUSHING,REAR SWINGARM PIVOT

92139-S008

$17.61

92153

BOLT

92153-S177

$2.79

92153A

BOLT

92153-S178

$3.58

92153B

BOLT

92153-S179

$2.79

92153C

BOLT

92153-S243

$2.67

92172

SCREW,6X10

92172-S099

$3.01

92200

WASHER

92200-S003

$1.92

92200A

WASHER

92200-S068

$4.10

92200B

WASHER,12.5X26X2.3

92200-S070

$3.45

92200C

WASHER,14.5X24X2.3

92200-S072

$3.45

92210

NUT

92210-S024

Unavailable

92210A

NUT

92210-S057

$13.09

92210B

NUT

92210-S094

$4.29
