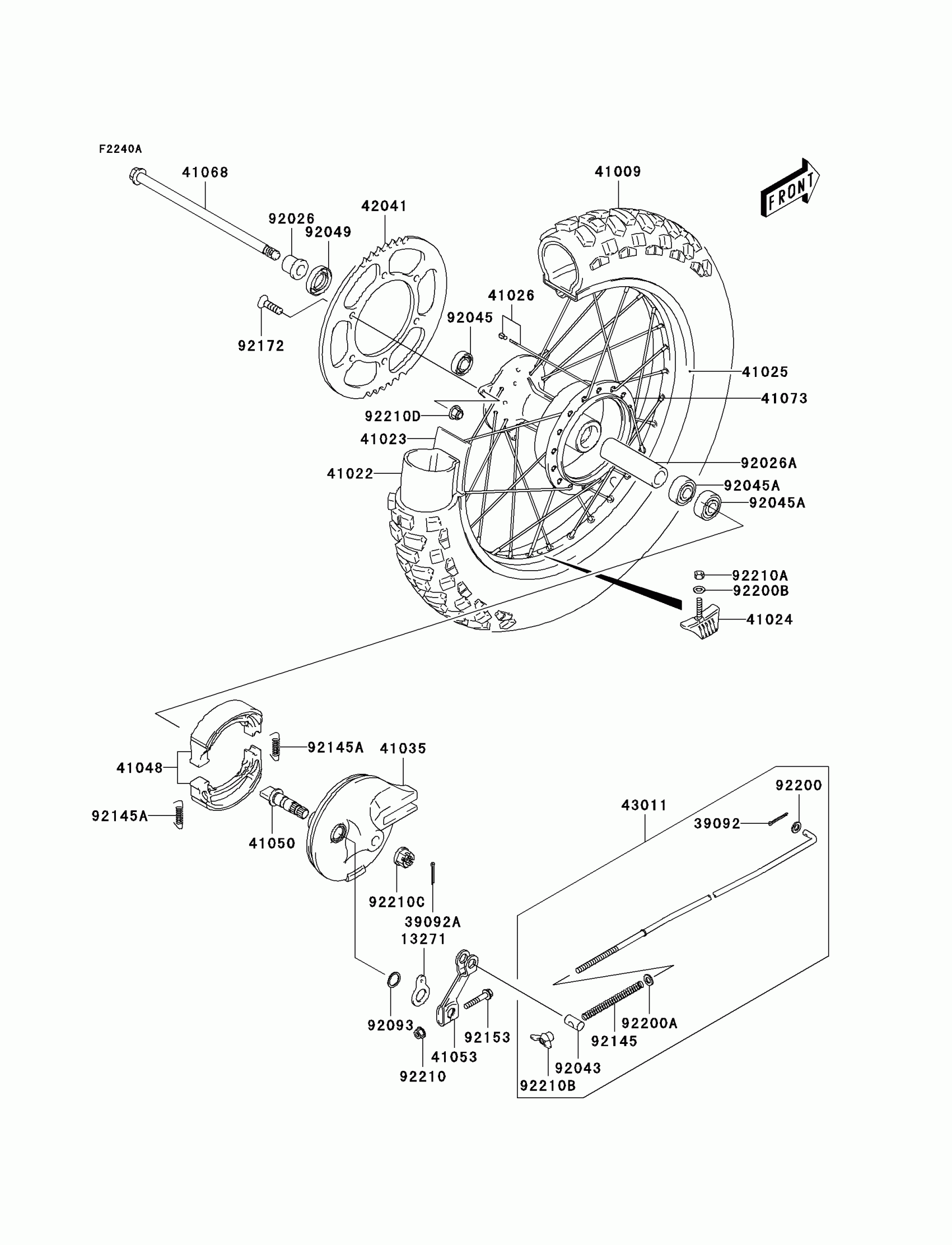

Kawasaki KLX125L Rear Hub(B3) Diagram
#
13271
PLATE,BRAKE LINING INDICATOR
13271-S022
$5.31
39092
PIN-HAIR,COTTER
39092-S005
$1.92
39092A
PIN-HAIR,REAR AXLE COTTER
39092-S006
Unavailable
41009
TIRE,RR
41009-S008
Unavailable
41022
TUBE-TIRE
41022-S004
$37.48
41023
BAND-RIM
41023-S004
$6.33
41024
STOPPER-RIM
41024-S001
$39.73
41025
RIM
41025-S019
$267.25
41026
SPOKE-ASSY
41026-S013
$58.78
41035
PANEL-ASSY-BRAKE
41035-S002
$132.13
41048
SHOE-BRAKE
41048-S003
$44.07
41050
CAM-BRAKE
41050-S003
$23.25
41053
LEVER-BRAKE CAM
41053-S003
$22.34
41068
AXLE,RR
41068-S004
$44.02
41073
WHEEL-ASSY,REAR
41073-S016
$268.93
42041
SPROCKET-HUB,57T
42041-S003
$68.45
43011
ROD-BRAKE
43011-S002
$21.22
92026
SPACER,REAR AXLE
92026-S055
$16.26
92026A
SPACER,REAR HUB BEARING
92026-S164
$10.83
92043
PIN,BRAKE ROD ADJUSTER
92043-S023
$2.79
92045
BEARING-BALL,REAR HUB,LH
92045-S029
$17.43
92045A
BEARING-BALL,REAR HUB,RH
92045-S030
$14.90
92049
SEAL-OIL,REAR HUB
92049-S025
$6.91
92093
SEAL
92093-S008
$5.83
92145
SPRING,REAR BRAKE ROD
92145-S046
$2.64
92145A
SPRING,REAR BRAKE SHOE
92145-S047
$4.10
92153
BOLT
92153-S130
Unavailable
92172
SCREW,SPROCKET
92172-S111
$3.01
92200
WASHER
92200-S002
$1.92
92200A
WASHER
92200-S003
$1.92
92200B
WASHER
92200-S028
$1.92
92210
NUT
92210-S004
$1.92
92210A
NUT
92210-S051
$1.92
92210B
NUT
92210-S055
$4.20
92210C
NUT
92210-S056
$17.61
92210D
NUT
92210-S094
$4.29
