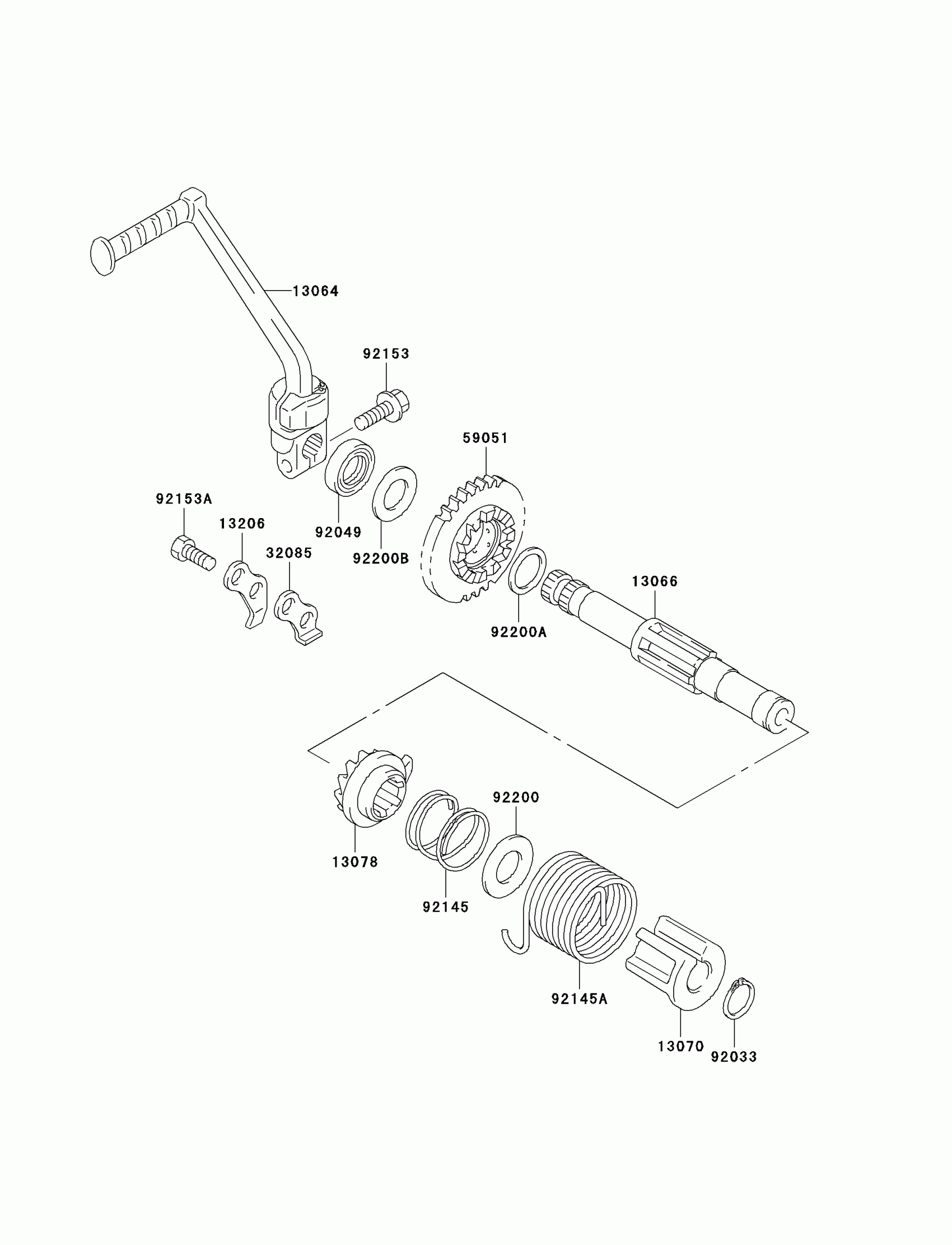

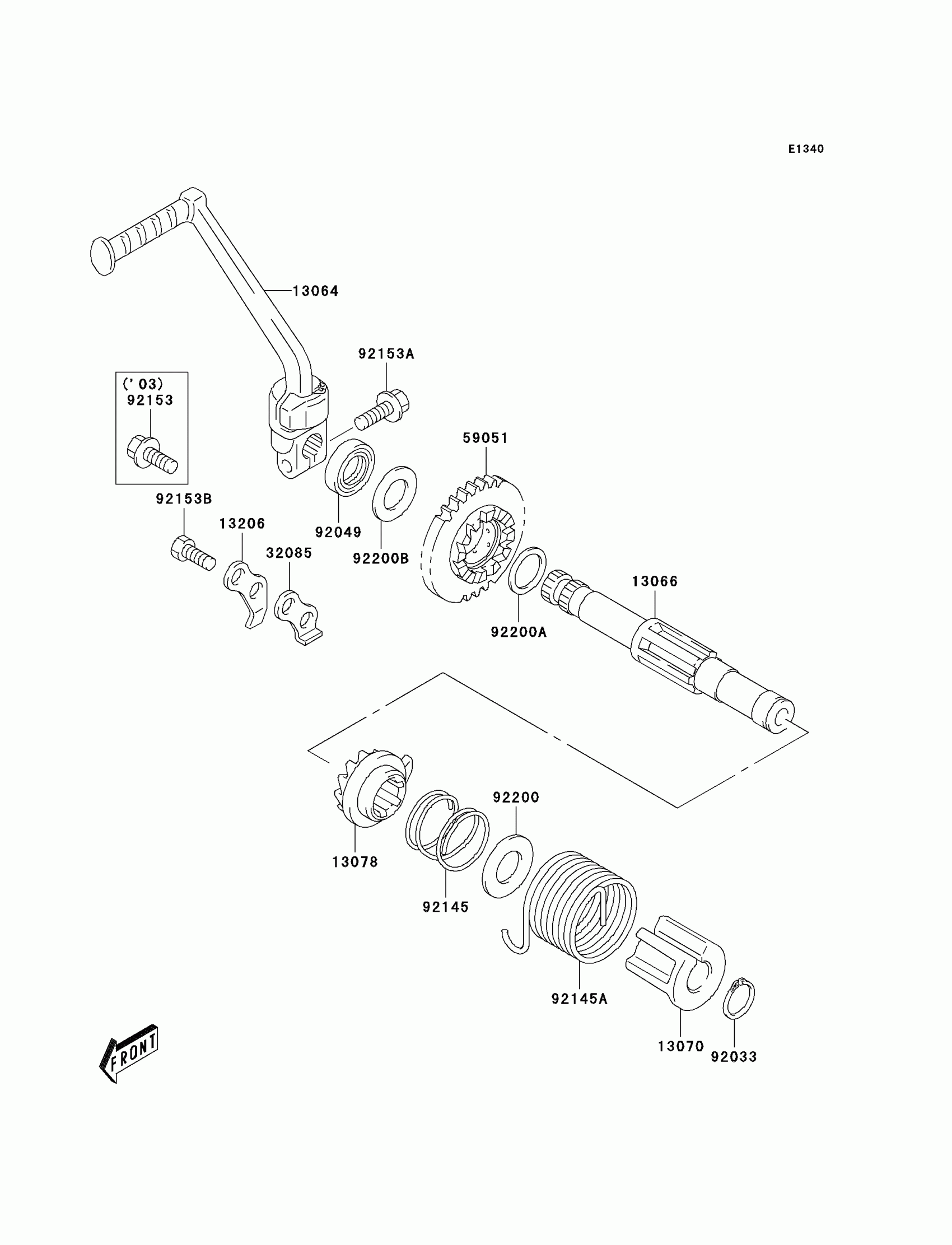

Kawasaki KLX125L Kickstarter Mechanism Diagram

Description

Price

13064

LEVER-ASSY-KICK

13064-S002

Unavailable

13066

SHAFT-KICK

13066-S001

$73.46

13070

GUIDE,KICK STARTER SHAFT

13070-S006

$8.78

13078

RATCHET,KICK

13078-S001

$29.68

13206

GUIDE-KICK,KICK STARTER

13206-S001

$7.32

32085

STOPPER

32085-S003

$5.47

59051

GEAR-SPUR,KICK STARTER DRIVE

59051-S002

$74.61

92033

RING-SNAP

92033-S034

Unavailable

92049

SEAL-OIL

92049-S023

$4.26

92145

SPRING

92145-S042

$2.64

92145A

SPRING

92145-S045

$6.61

92153

BOLT

92153-S142

$2.40

92153A

BOLT

92153-S482

$3.18

92200

WASHER

92200-S054

$3.45

92200A

WASHER

92200-S063

$3.45

92200B

WASHER,16X30X1

92200-S073

$3.88
