2005 Kawasaki KLX125L Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2005 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

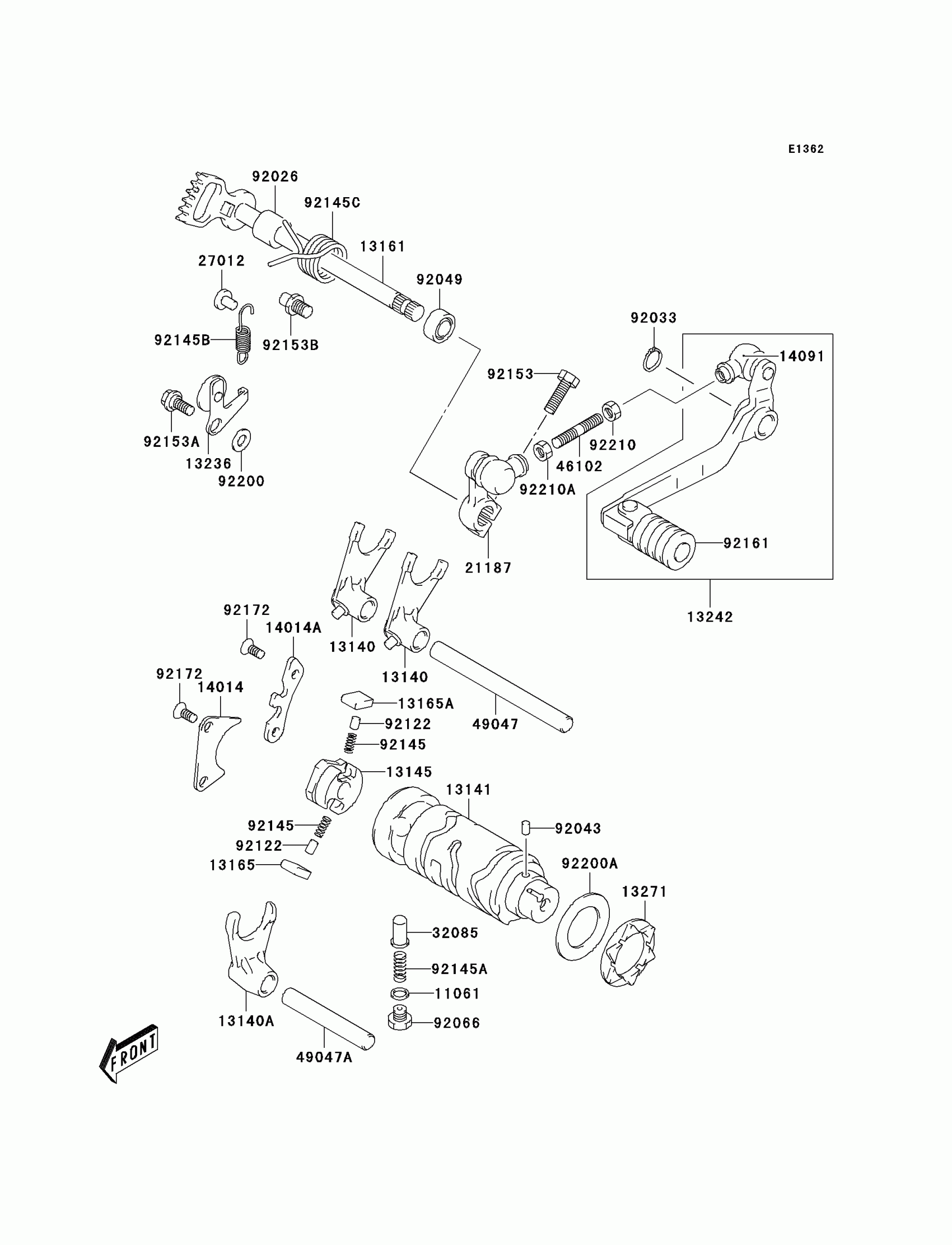

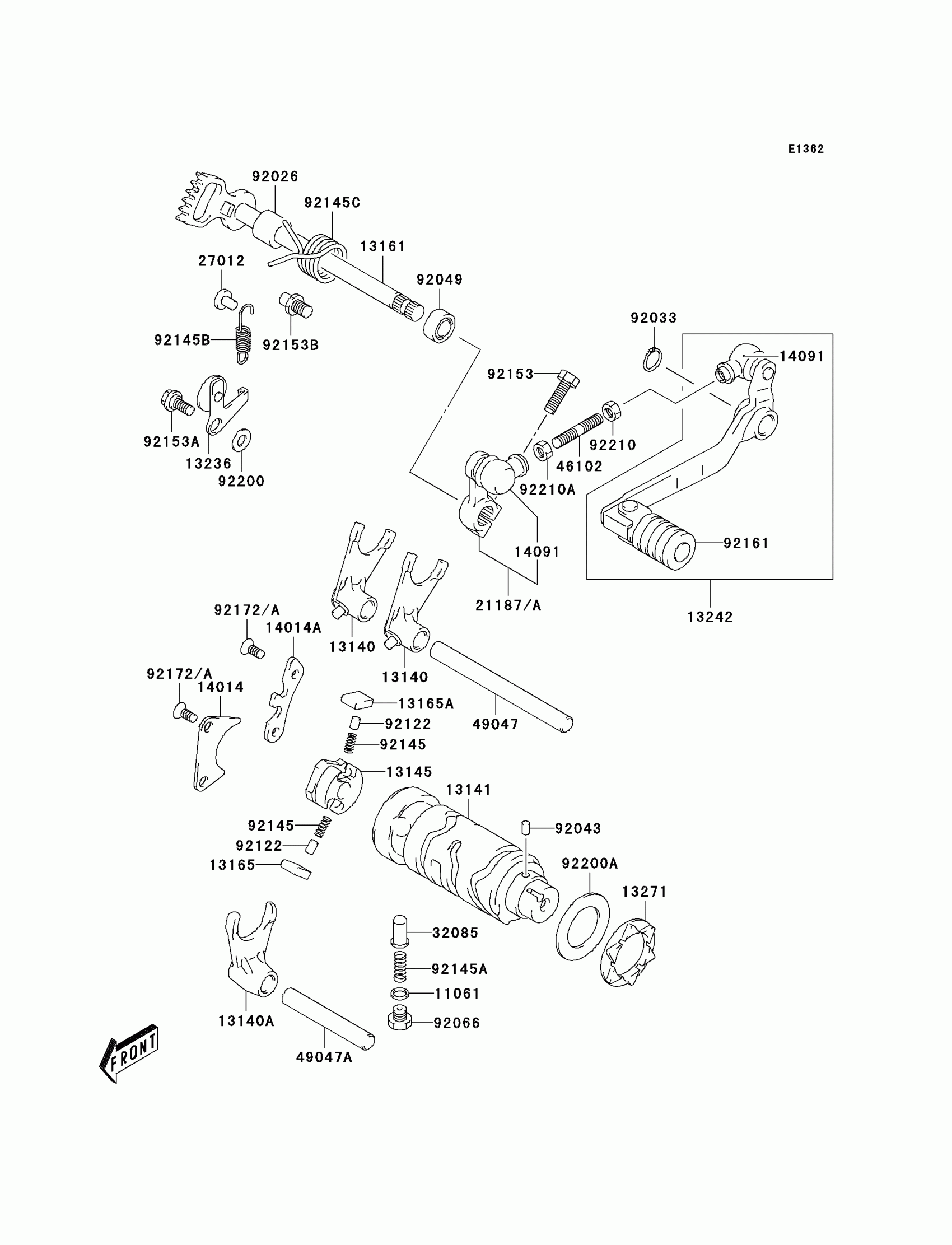

2005 Kawasaki KLX125L Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,13.8X18.8X0.4

11061-S006

1
Out of stock

13140

FORK-SHIFT

13140-S003

1
Out of stock

13140A

FORK-SHIFT

13140-S004

1
Out of stock

13141

DRUM-CHANGE

13141-S003

1
Out of stock

13145

CAM-CHANGE DRUM

13145-S002

1
Out of stock

13161

LEVER-COMP-CHANGE SHAFT

13161-S002

1
Out of stock

13165

PAWL

13165-S003

1
Out of stock

13165A

PAWL

13165-S004

1
Out of stock

13236

LEVER-COMP

13236-S002

1
Out of stock

13242

LEVER-ASSY-CHANGE

13242-S001

1
Out of stock

13271

PLATE,GEAR SHIFT CAM

13271-S021

1
Out of stock

14014

PLATE-POSITION

14014-S002

1
Out of stock

14014A

PLATE-POSITION

14014-S003

1
Out of stock

14091

COVER

14091-S064

1
Out of stock

21187A

ARM-ASSY

21187-S005

1
Out of stock

27012

HOOK

27012-S002

1
Out of stock

32085

STOPPER,SHIFT CAM

32085-S004

1
Out of stock

46102

ROD,GEAR SHIFT LINK

46102-S003

1
Out of stock

49047

ROD-SHIFT,L=109

49047-S001

1
Out of stock

49047A

ROD-SHIFT

49047-S002

1
Out of stock

92026

SPACER,12X20X15.3

92026-S037

1
Out of stock

92033

RING-SNAP

92033-S023

1
Out of stock

92043

PIN

92043-S020

1
Out of stock

92049

SEAL-OIL,12X22X9

92049-S020

1
Out of stock

92066

PLUG

92066-S016

1
Out of stock

92122

ROLLER,5X8

92122-S005

1
Out of stock

92145

SPRING

92145-S037

1
Out of stock

92145A

SPRING

92145-S039

1
Out of stock

92145B

SPRING

92145-S043

1
Out of stock

92145C

SPRING

92145-S044

1
Out of stock

92153

BOLT

92153-S127

1
Out of stock

92153A

BOLT,6X14.6

92153-S136

1
Out of stock

92153B

BOLT

92153-S139

1
Out of stock

92161

DAMPER,GEAR SHIFT PEDAL

92161-S057

1
Out of stock

92172A

SCREW

92172-S112

1
Out of stock

92200

WASHER

92200-S051

1
Out of stock

92200A

WASHER,25X40X1.0

92200-S064

1
Out of stock

92210

NUT

92210-S093

1
Out of stock

92210A

NUT

92210-S095

1
Out of stock
