2003 Kawasaki KLX125L Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2003 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

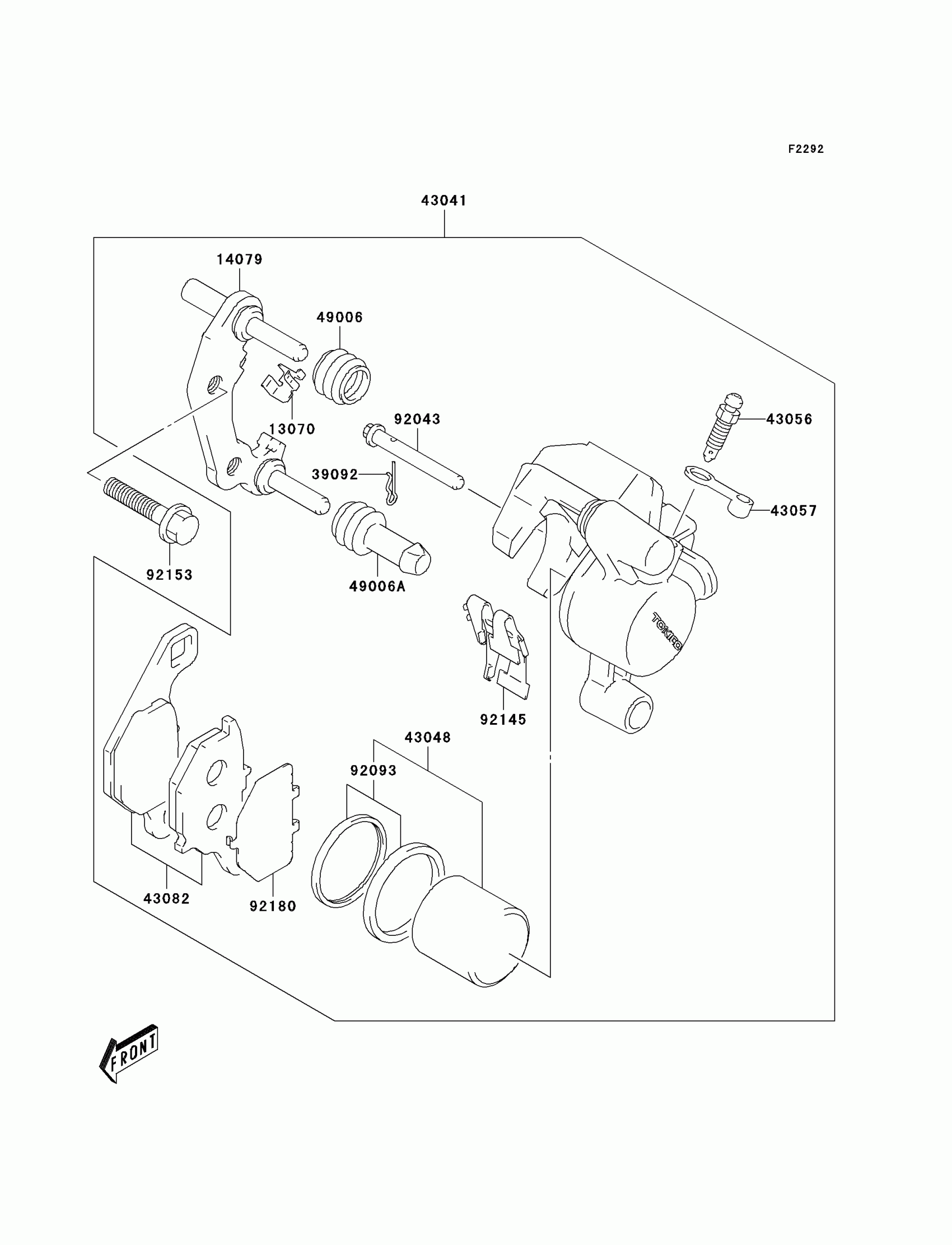

2003 Kawasaki KLX125L Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,PAD

13070-S003

1

$7.68

In stock

14079

HOLDER-ASSY

14079-S001

1

$70.95

In stock

39092

PIN-HAIR,PAD PIN

39092-S001

1

$4.42

In stock

43041

CALIPER-ASSY

43041-S006

1

$238.16

In stock

43048

PISTON-CALIPER

43048-S001

1
Out of stock

43056

BREATHER-BRAKE

43056-S001

1

$9.05

In stock

43057

CAP-BREATHER

43057-S003

1

$9.81

In stock

43082

PAD-ASSY-BRAKE

43082-S005

1

$42.00

In stock

49006

BOOT,AXLE

49006-S002

1

$5.15

In stock

49006A

BOOT,AXLE

49006-S003

1

$5.78

In stock

92043

PIN,PAD

92043-S012

1

$10.54

In stock

92093

SEAL

92093-S003

1

$17.66

In stock

92145

SPRING,PAD

92145-S017

1

$13.44

In stock

92153

BOLT

92153-S070

1

$2.20

In stock

92180

SHIM,PAD

92180-S005

1

$13.44

In stock
