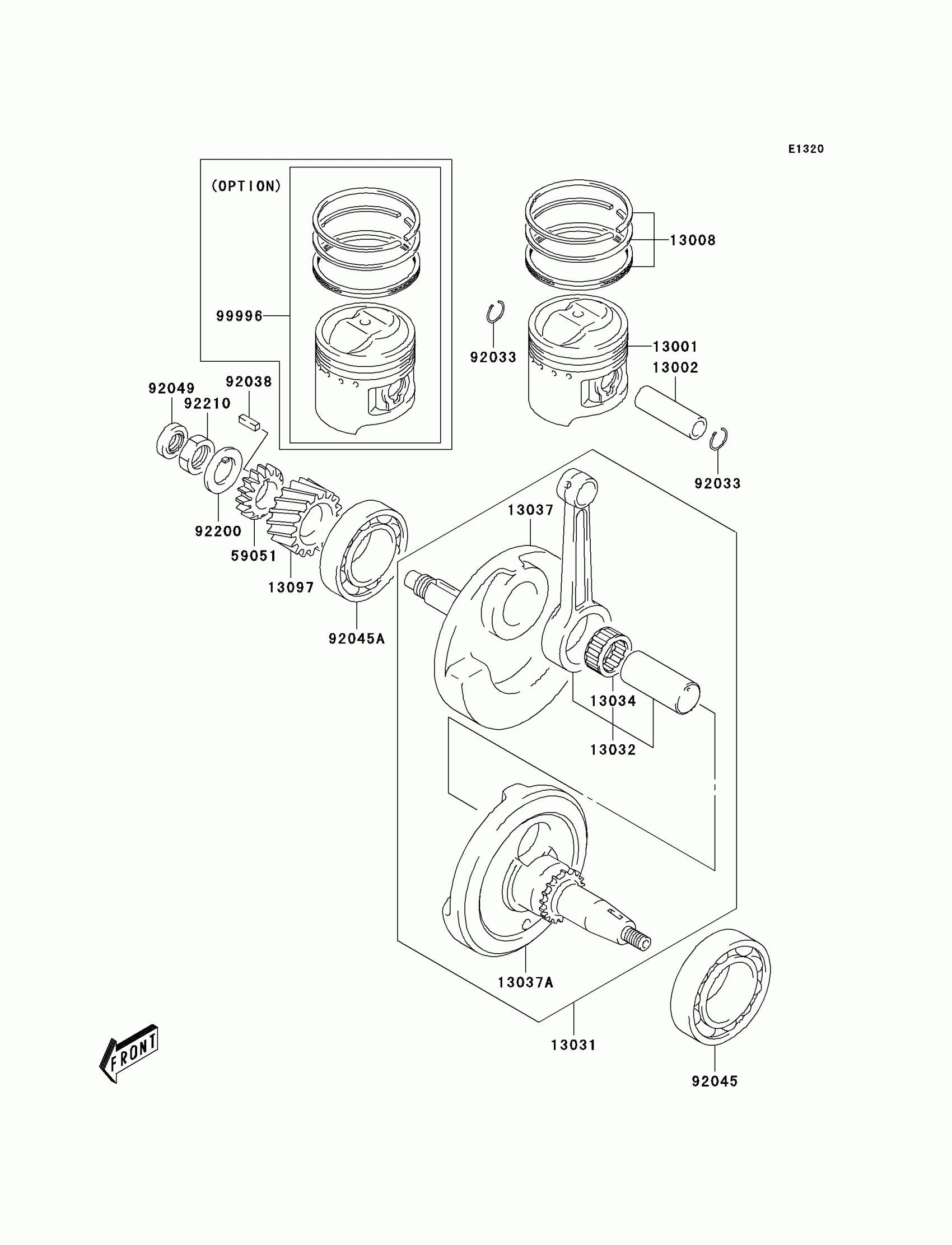

Kawasaki KLX125L Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE

13001-S003

$56.30

13002

PIN-PISTON

13002-S003

Unavailable

13008

RING-SET-PISTON

13008-S003

$43.31

13031

CRANKSHAFT-COMP

13031-S003

$438.88

13032

ROD-CONNECTING

13032-S003

$126.84

13034

BEARING-BIG END,28X36X15.8

13034-S003

$34.18

13037

CRANKSHAFT,RH

13037-S005

$165.63

13037A

CRANKSHAFT,LH

13037-S006

$170.91

13097

GEAR-PRIMARY SPUR

13097-S003

$47.18

59051

GEAR-SPUR,OIL PUMP DRIVE

59051-S001

$34.16

92033

RING-SNAP

92033-S022

$1.90

92038

KEY,PRIMARY DRIVE

92038-S003

$4.60

92045

BEARING-BALL,35X72X17

92045-S010

$48.10

92045A

BEARING-BALL,28X68X18

92045-S026

$54.28

92049

SEAL-OIL,12X21X7

92049-S001

$14.16

92200

WASHER

92200-S058

$2.79

92210

NUT

92210-S048

$4.60

99996

KIT,PISTON O/S 0.50

99996-S007

Unavailable
