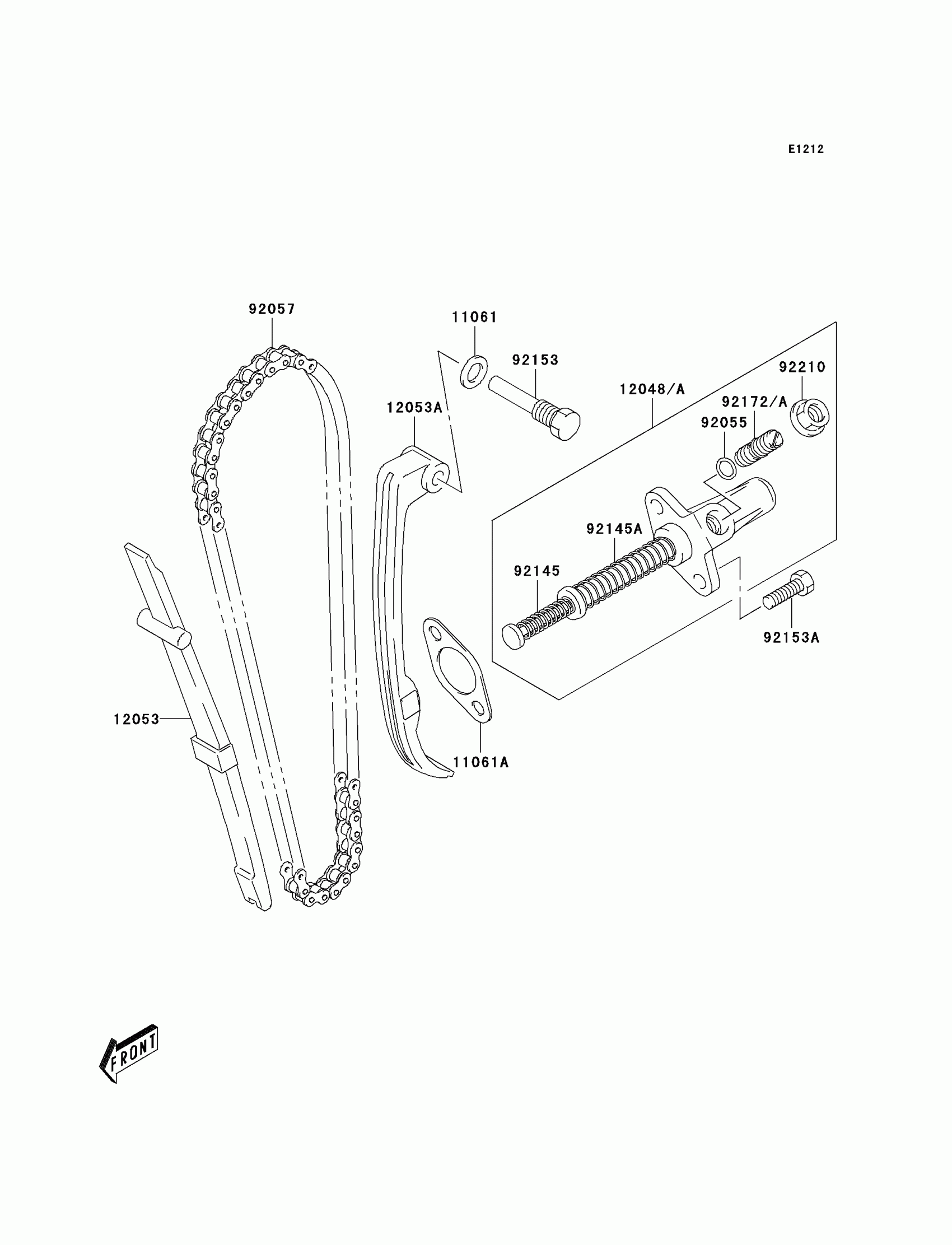

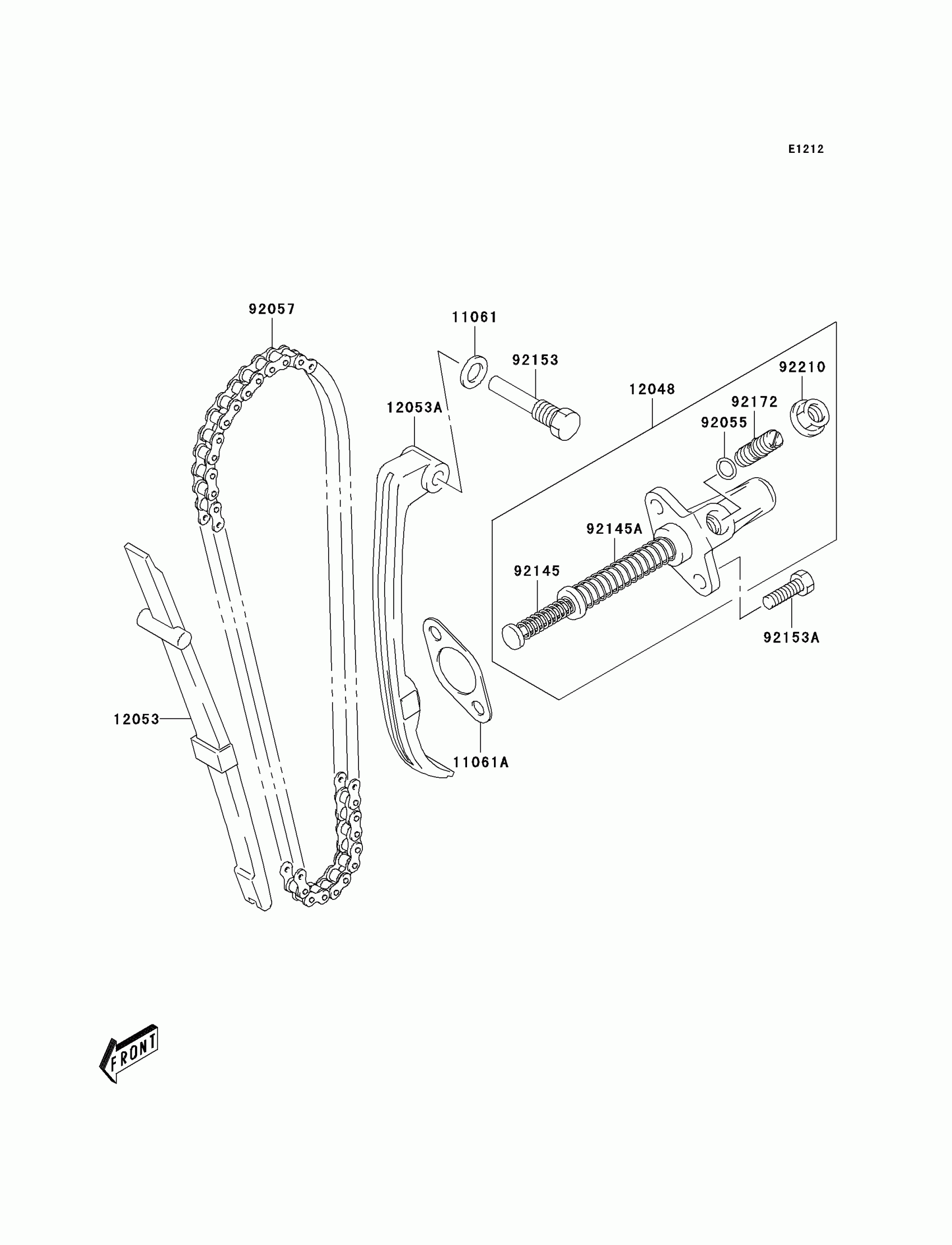

Kawasaki KLX125L Cam Chain/Tensioner Diagram

Description

Price

11061

GASKET,8.2X14X1

11061-S020

$2.04

11061A

GASKET,TENSIONER ADJUSTER

11061-S038

$3.64

12048

TENSIONER-ASSY

12048-S008

$141.41

12053

GUIDE-CHAIN

12053-S005

$38.70

12053A

GUIDE-CHAIN

12053-S006

$46.00

92055

RING-O,D=1.9

92055-S032

$1.90

92057

CHAIN

92057-S004

$65.67

92145

SPRING

92145-S038

$3.45

92145A

SPRING

92145-S040

$2.79

92153

BOLT,CAM CHAIN TENSIONER

92153-S054

$5.01

92153A

BOLT

92153-S127

$1.92

92172

SCREW

92172-S282

$8.36

92210

NUT

92210-S026

$1.92
