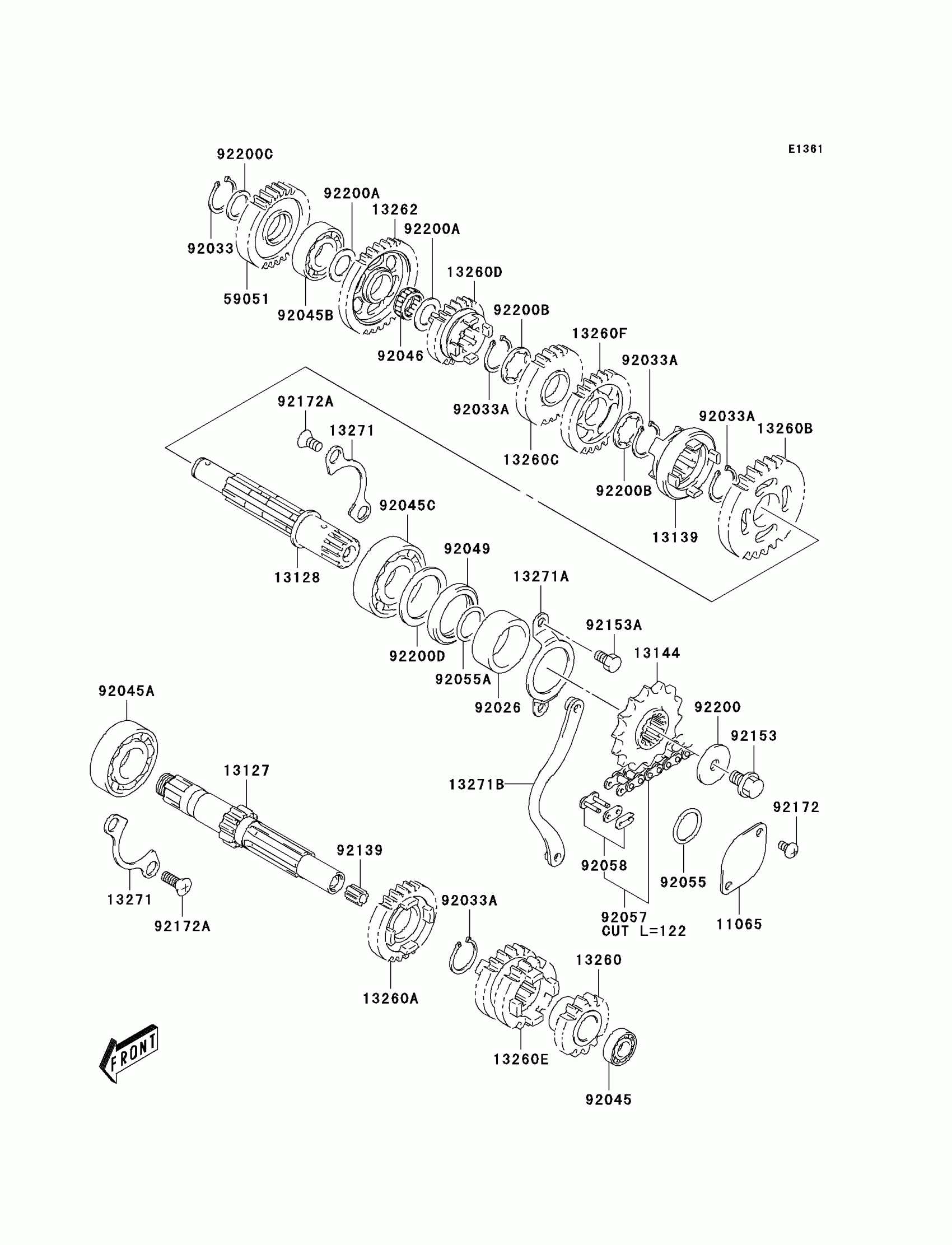

Kawasaki KLX125 Transmission Diagram
#
11065
CAP
11065-S017
$8.78
13127
SHAFT-TRANSMISSION INPUT
13127-S004
$126.84
13128
SHAFT-TRANSMISSION OUTPUT
13128-S005
$129.48
13139
SHIFTER
13139-S001
$53.90
13144
SPROCKET-OUTPUT,14T
13144-S002
$33.71
13260
GEAR,INPUT 2ND,14T
13260-S003
$49.16
13260A
GEAR,INPUT 5TH,26T
13260-S005
$71.72
13260B
GEAR,OUTPUT 2ND,26T
13260-S007
$71.72
13260C
GEAR,OUTPUT 4TH,23T
13260-S009
$71.72
13260D
GEAR,OUTPUT 5TH,24T
13260-S010
$70.24
13260E
GEAR,INPUT 3RD&4TH,19T&21T
13260-S012
$99.14
13260F
GEAR,OUTPUT 3RD,26T
13260-S013
$71.72
13262
GEAR,OUTPUT LOW,33T
13262-S004
$68.67
13271
PLATE,DRIVE SHAFT BEARING
13271-S019
$6.47
13271A
PLATE,DRIVESHAFT OIL SEAL
13271-S020
$4.60
13271B
PLATE,CHAIN GUIDE
13271-S024
$18.15
59051
GEAR-SPUR,KICK STARTER IDLE
59051-S003
$57.40
92026
SPACER,ENGINE SPROCKET
92026-S038
$21.22
92033
RING-SNAP
92033-S017
$2.64
92033A
RING-SNAP
92033-S020
$2.39
92045
BEARING-BALL
92045-S023
$20.82
92045A
BEARING-BALL,20X47X14
92045-S024
Unavailable
92045B
BEARING-BALL,15X36X12
92045-S027
$51.56
92045C
BEARING-BALL,22X50X14
92045-S034
Unavailable
92046
BEARING-NEEDLE,15X19X7.8
92046-S007
$15.77
92049
SEAL-OIL,30X40X6
92049-S019
$10.48
92055
RING-O,D=2.4
92055-S007
$2.25
92055A
RING-O,D=2.5
92055-S034
$2.64
92057
CHAIN,DRIVE
92057-S007
$56.25
92058
JOINT-CHAIN
92058-S001
$6.87
92139
BUSHING
92139-S007
$6.47
92153
BOLT
92153-S015
$2.40
92153A
BOLT
92153-S125
Unavailable
92172
SCREW
92172-S110
$1.92
92172A
SCREW
92172-S112
$2.70
92200
WASHER
92200-S052
$3.88
92200A
WASHER
92200-S053
$2.79
92200B
WASHER
92200-S059
$2.79
92200C
WASHER
92200-S062
$3.34
92200D
WASHER
92200-S065
$4.60
