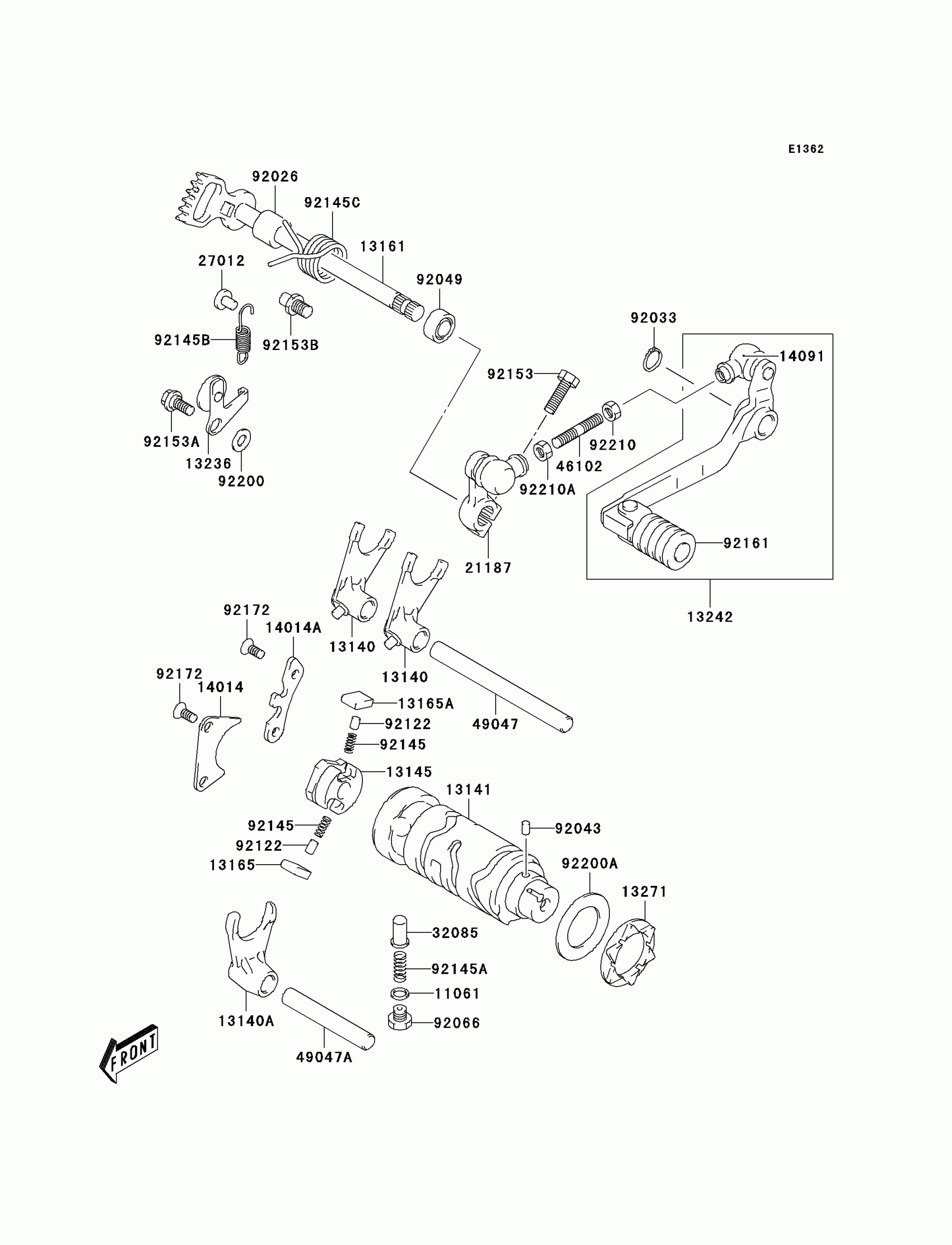

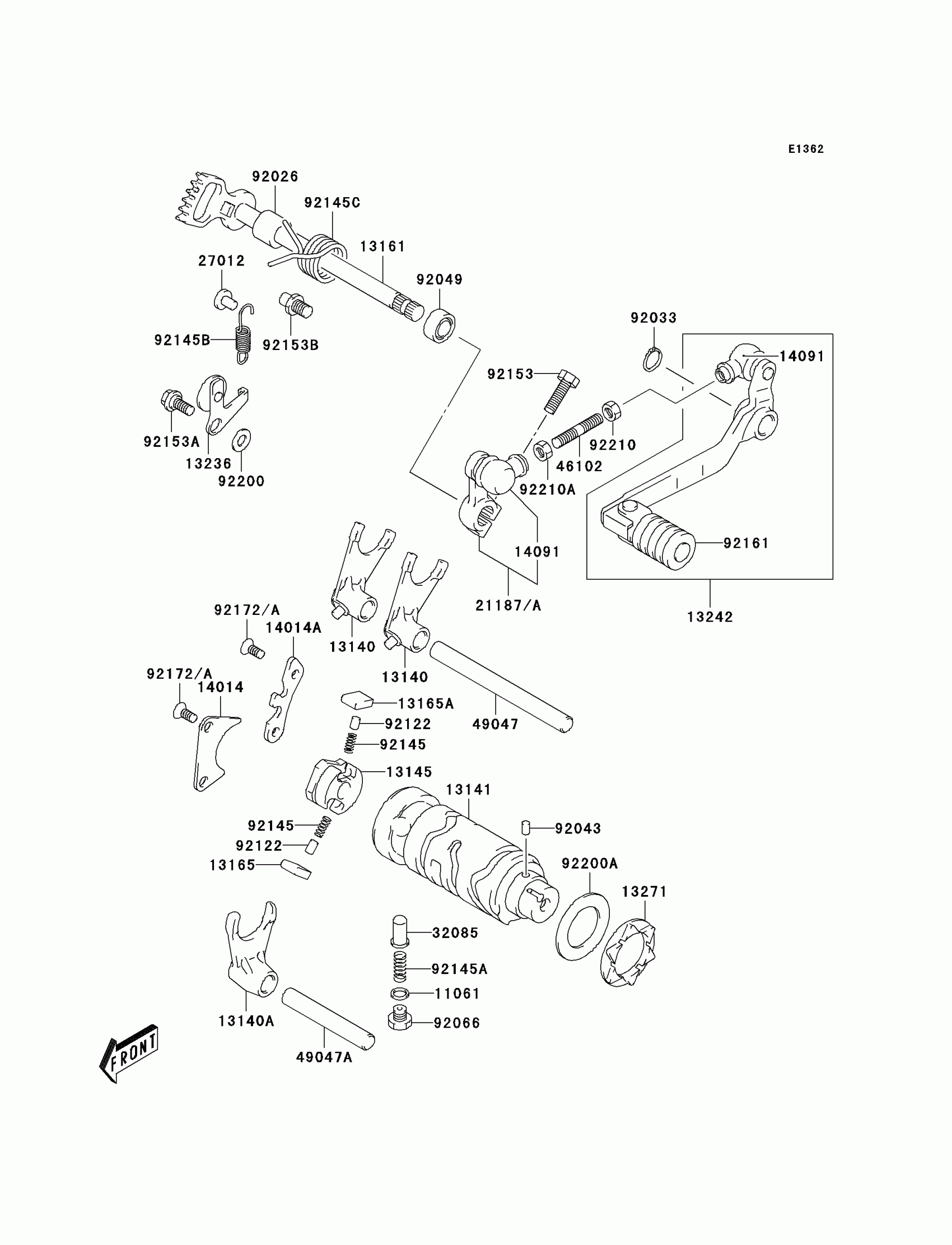

Kawasaki KLX125 Gear Change Drum/Shift Fork(s) Diagram

#

Description
Price

11061

GASKET,13.8X18.8X0.4

11061-S006

$0.87

13140

FORK-SHIFT

13140-S003

$70.37

13140A

FORK-SHIFT

13140-S004

$64.34

13141

DRUM-CHANGE

13141-S003

$102.11

13145

CAM-CHANGE DRUM

13145-S002

$24.27

13161

LEVER-COMP-CHANGE SHAFT

13161-S002

$56.10

13165

PAWL

13165-S003

$8.44

13165A

PAWL

13165-S004

Unavailable

13236

LEVER-COMP

13236-S002

$10.51

13242

LEVER-ASSY-CHANGE

13242-S001

$58.65

13271

PLATE,GEAR SHIFT CAM

13271-S021

$17.54

14014

PLATE-POSITION

14014-S002

$5.63

14014A

PLATE-POSITION

14014-S003

$10.95

14091

COVER

14091-S064

$5.16

21187A

ARM-ASSY

21187-S005

Unavailable

27012

HOOK

27012-S002

$1.58

32085

STOPPER,SHIFT CAM

32085-S004

$10.95

46102

ROD,GEAR SHIFT LINK

46102-S003

$5.95

49047

ROD-SHIFT,L=109

49047-S001

$15.66

49047A

ROD-SHIFT

49047-S002

$20.22

92026

SPACER,12X20X15.3

92026-S037

$3.68

92033

RING-SNAP

92033-S023

$1.71

92043

PIN

92043-S020

Unavailable

92049

SEAL-OIL,12X22X9

92049-S020

Unavailable

92066

PLUG

92066-S016

$4.17

92122

ROLLER,5X8

92122-S005

$1.41

92145

SPRING

92145-S037

$1.63

92145A

SPRING

92145-S039

$1.63

92145B

SPRING

92145-S043

$2.27

92145C

SPRING

92145-S044

$4.97

92153

BOLT

92153-S127

$1.64

92153A

BOLT,6X14.6

92153-S136

$3.63

92153B

BOLT

92153-S139

$4.30

92161

DAMPER,GEAR SHIFT PEDAL

92161-S057

$5.63

92172A

SCREW

92172-S112

Unavailable

92200

WASHER

92200-S051

$1.83

92200A

WASHER,25X40X1.0

92200-S064

$2.98

92210

NUT

92210-S093

$1.64

92210A

NUT

92210-S095

$2.05
