Description

Price

11061

GASKET

11061-S019

$4.60

44005

PIPE-LEFT FORK OUTER

44005-S004

$267.74

44006

PIPE-RIGHT FORK OUTER

44006-S004

$267.74

44013

PIPE-FORK INNER

44013-S003

$236.04

44018

PISTON-FORK

44018-S002

$19.80

44023

CYLINDER-SET-FORK

44023-S002

$49.68

44026

SPRING-FRONT FORK

44026-S005

$53.90

44026A

SPRING-FRONT FORK

44026-S006

$6.10

44071

DAMPER-ASSY,FRONT FORK,RH

44071-S001

$539.97

44071A

DAMPER-ASSY,FRONT FORK,LH

44071-S002

$539.97

49006

BOOT

49006-S011

$46.00

92026

SPACER

92026-S079

$6.52

92026A

SPACER

92026-S080

$15.97

92033

RING-SNAP

92033-S035

$5.47

92033A

RING-SNAP

92033-S036

$7.27

92049

SEAL-OIL

92049-S047

$13.56

92055

RING-O

92055-S051

Unavailable

92072

BAND

92072-S005

$8.87

92139

BUSHING

92139-S021

$13.58

92153

BOLT

92153-S241

$5.47

92153A

BOLT

92153-S242

Unavailable

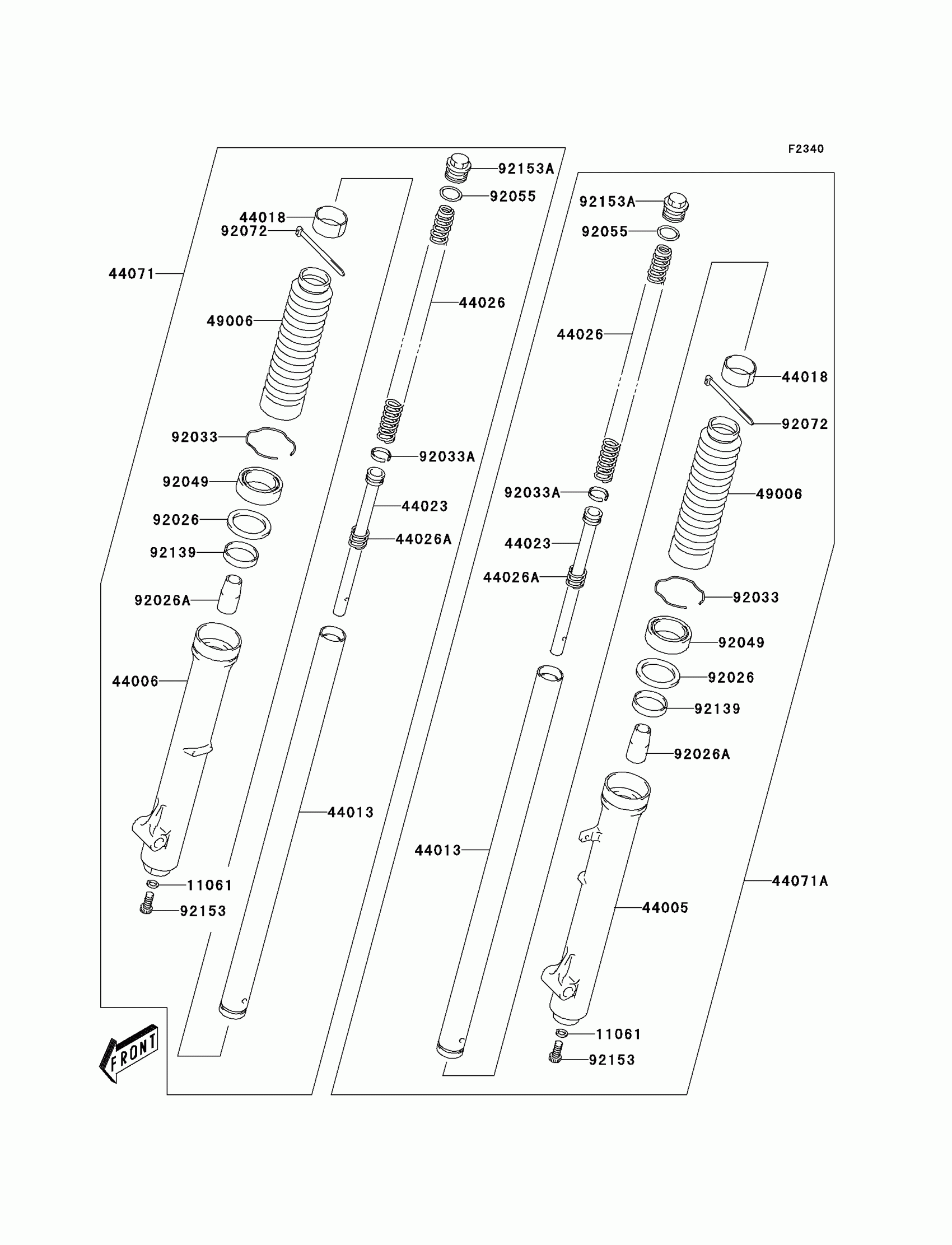

Kawasaki KLX125 Front Fork Diagram

GASKET

PIPE-LEFT FORK OUTER

PIPE-RIGHT FORK OUTER

PIPE-FORK INNER

PISTON-FORK

CYLINDER-SET-FORK

SPRING-FRONT FORK

SPRING-FRONT FORK

DAMPER-ASSY,FRONT FORK,RH

DAMPER-ASSY,FRONT FORK,LH

BOOT

SPACER

SPACER

RING-SNAP

RING-SNAP

SEAL-OIL

RING-O

BAND

BUSHING

BOLT

BOLT
