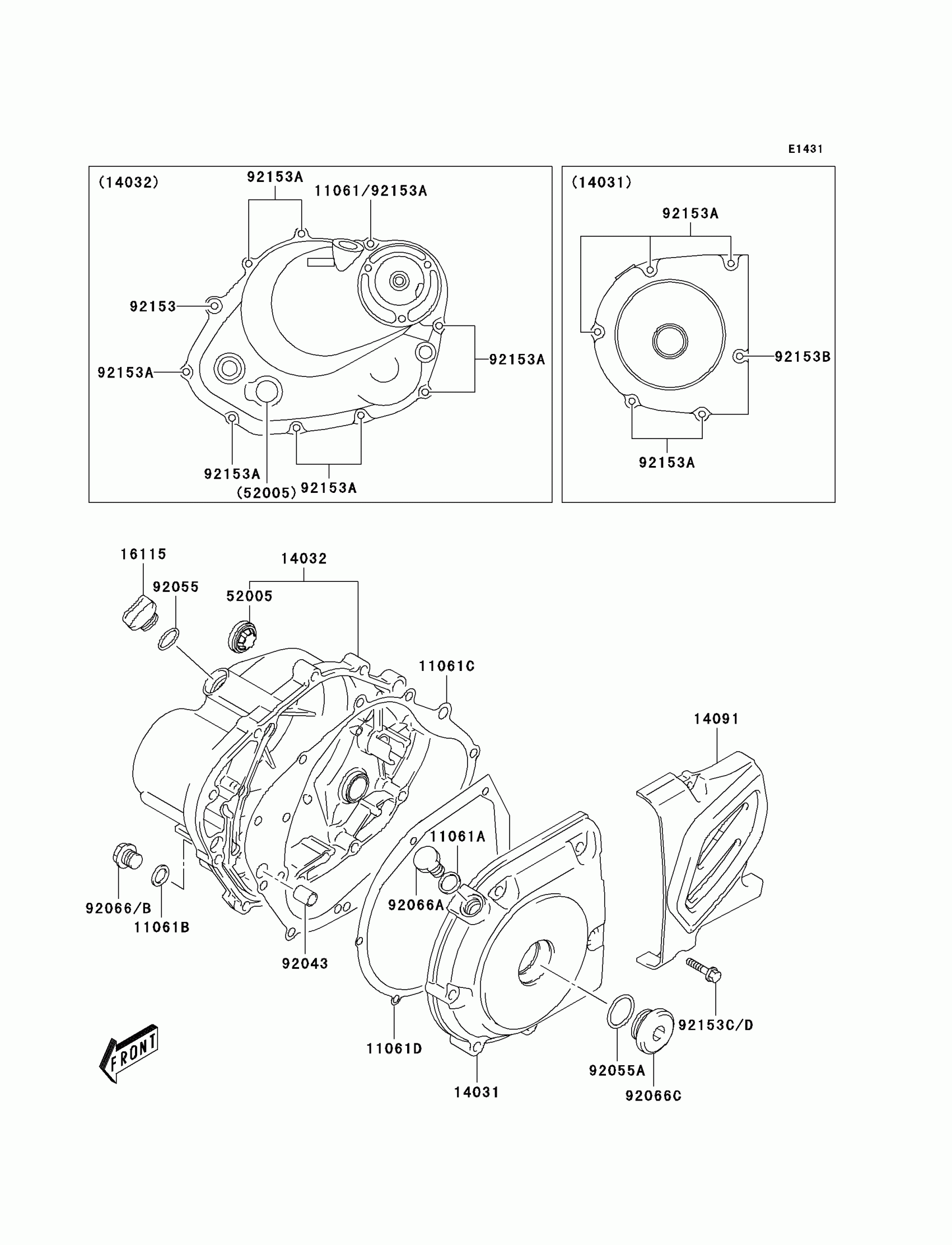

Kawasaki KLX125 Engine Cover(s) Diagram

Description

Price

11061

GASKET,5.8X13X1.2

11061-S001

$2.53

11061A

GASKET,12X16X2

11061-S005

$2.09

11061B

GASKET,13.8X18.8X0.4

11061-S006

$1.09

11061C

GASKET,CLUTCH COVER

11061-S036

$15.14

11061D

GASKET,MAGNETO COVER

11061-S037

$9.16

14031

COVER-GENERATOR

14031-S004

$128.39

14032

COVER-CLUTCH

14032-S005

$171.82

14091

COVER,ENGINE SPROCKET

14091-S059

$56.71

16115

CAP-OIL FILLER

16115-S002

$6.55

52005

GAUGE,OIL LEVEL

52005-S004

$18.77

92043

92043-S003

$2.64

92055

RING-O,D=3.1

92055-S006

$2.51

92055A

RING-O,D=3.1

92055-S035

$2.70

92066

PLUG

92066-S002

$4.69

92066A

PLUG

92066-S015

$3.64

92066B

PLUG,20X10

92066-S018

$12.11

92153

BOLT

92153-S005

$3.12

92153A

BOLT

92153-S062

$2.40

92153B

BOLT

92153-S128

$2.40

92153C

BOLT

92153-S173

$2.40

Kawasaki KLX125 Engine Cover(s) Diagram

GASKET,5.8X13X1.2

GASKET,12X16X2

GASKET,13.8X18.8X0.4

GASKET,CLUTCH COVER

GASKET,MAGNETO COVER

COVER-GENERATOR

COVER-CLUTCH

COVER,ENGINE SPROCKET

CAP-OIL FILLER

GAUGE,OIL LEVEL

PIN

RING-O,D=3.1

RING-O,D=3.1

PLUG

PLUG

PLUG,20X10

BOLT

BOLT

BOLT

BOLT
