Description

Price

11004

GASKET-HEAD

11004-S003

$14.16

11008

HEAD-COMP-CYLINDER

11008-S003

$515.65

11061

GASKET,5.8X13X1.2

11061-S001

$2.53

11065

CAP,INSPECTION

11065-S014

$11.39

16065

HOLDER-CARBURETOR

16065-S005

$29.84

49002

GUIDE-VALVE

49002-S002

$21.22

92033

RING-SNAP

92033-S021

$1.76

92043

PIN

92043-S002

$2.15

92043A

PIN,6.2X8X11

92043-S004

$2.15

92055

RING-O,D=3

92055-S036

$2.09

92066

PLUG

92066-S014

$6.47

92070

PLUG-SPARK,X24ESR-U(DN)

92070-S013

Unavailable

92070A

PLUG-SPARK,DR8EA(NGK)

92070-S014

$3.62

92153

BOLT

92153-S130

Unavailable

92153A

BOLT

92153-S131

$2.40

92153B

BOLT

92153-S176

$4.20

92161

DAMPER,CYLINDER HEAD

92161-S056

$4.60

92171

CLAMP,INTAKE PIPE

92171-S049

$5.66

92172

SCREW

92172-S008

$1.92

92210

NUT

92210-S094

$4.29

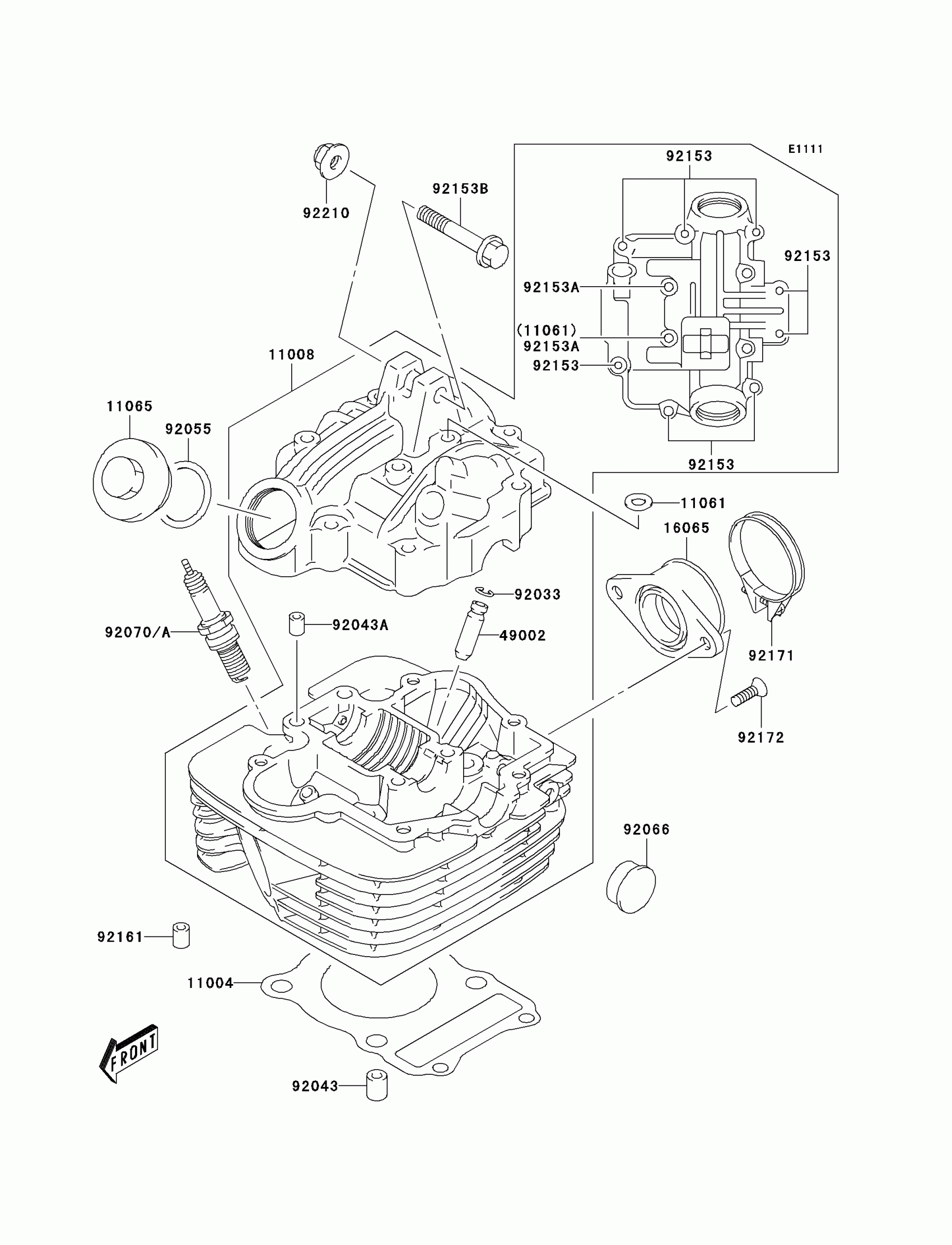

Kawasaki KLX125 Cylinder Head Diagram

GASKET-HEAD

HEAD-COMP-CYLINDER

GASKET,5.8X13X1.2

CAP,INSPECTION

HOLDER-CARBURETOR

GUIDE-VALVE

RING-SNAP

PIN

PIN,6.2X8X11

RING-O,D=3

PLUG

PLUG-SPARK,X24ESR-U(DN)

PLUG-SPARK,DR8EA(NGK)

BOLT

BOLT

BOLT

DAMPER,CYLINDER HEAD

CLAMP,INTAKE PIPE

SCREW

NUT
