2022 Kawasaki KLX110L Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2022 Kawasaki KLX110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

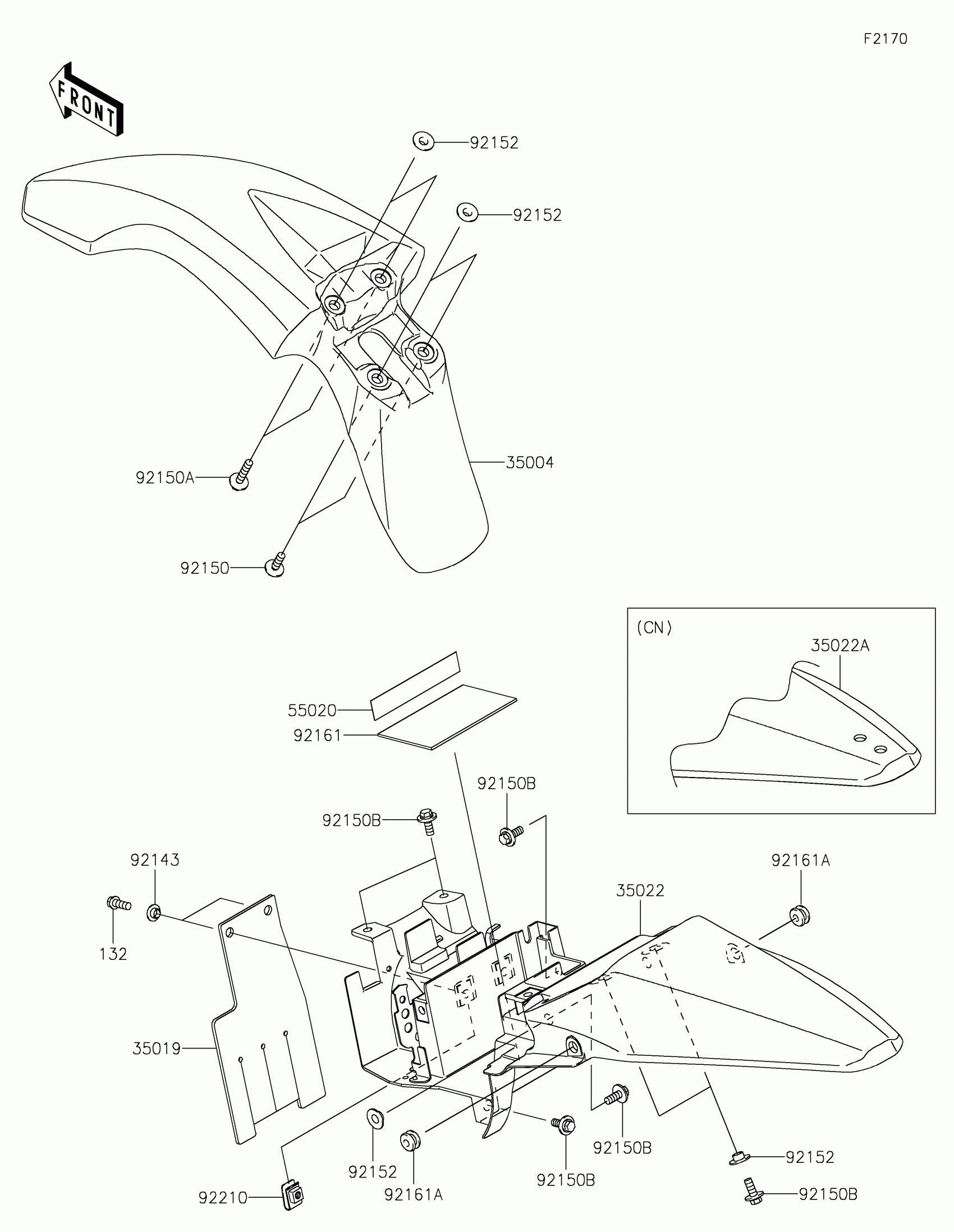

2022 Kawasaki KLX110L Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,L.GREEN

35004-0148-290

1
Out of stock

35019

FLAP

35019-0091

1
Out of stock

35022

FENDER-COMP-REAR,L.GREEN

35022-0079-290

1
Out of stock

35022A

FENDER-COMP-REAR,L.GREEN

35022-0080-290

1
Out of stock

55020

GUARD

55020-0552

1

$4.63

In stock

92143

COLLAR

92143-1331

1
Out of stock

92150

BOLT,6X20

92150-1339

1
Out of stock

92150A

BOLT,FLANGED,6X30

92150-1486

1
Out of stock

92150B

BOLT,FLANGED,6X16

92150-1506

1
Out of stock

92152

COLLAR

92152-0427

1
Out of stock

92161

DAMPER

92161-0845

1
Out of stock

92161A

DAMPER

92161-0864

1
Out of stock

92210

NUT,6MM

92210-0218

1
Out of stock

132

1

$1.21

In stock
