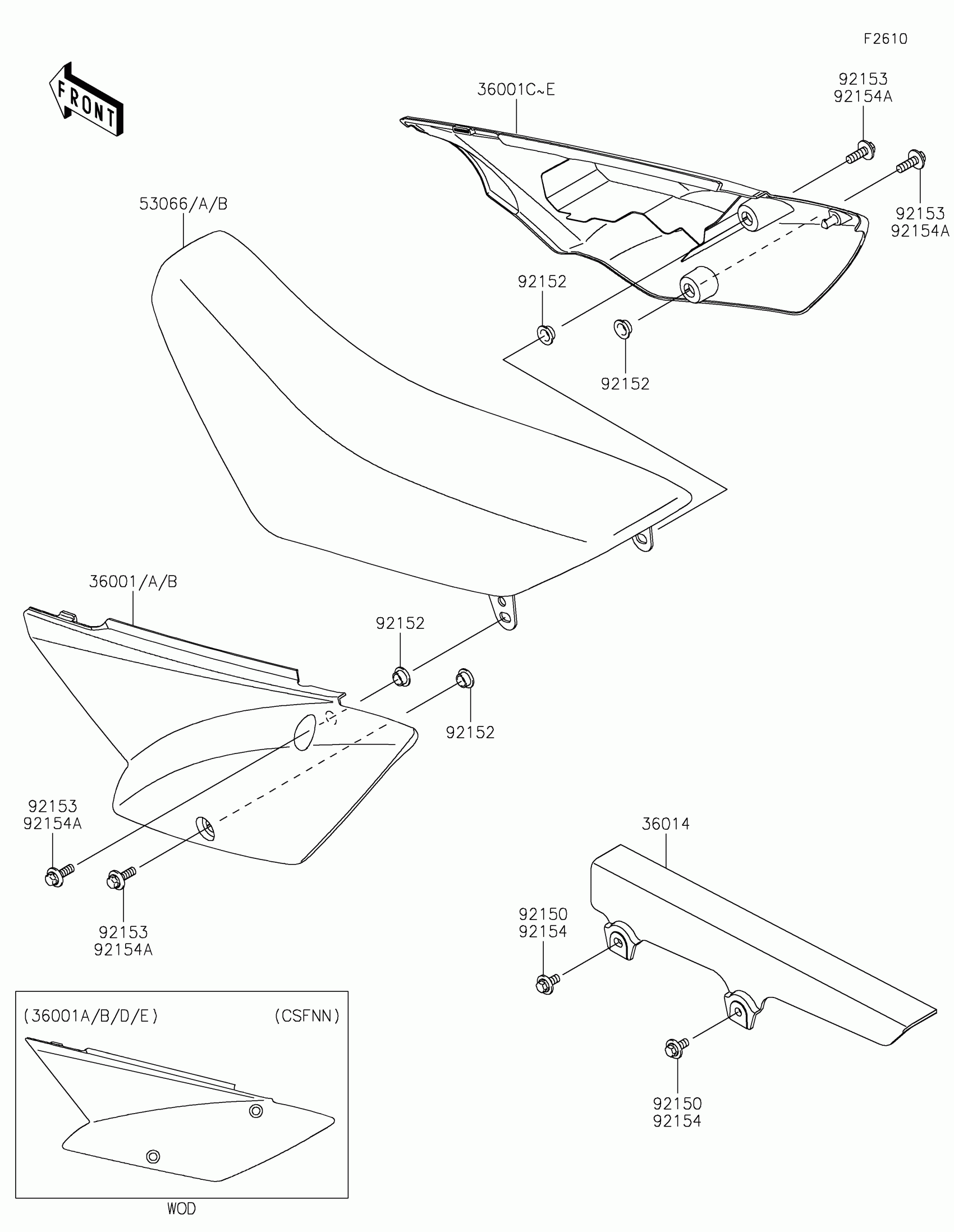

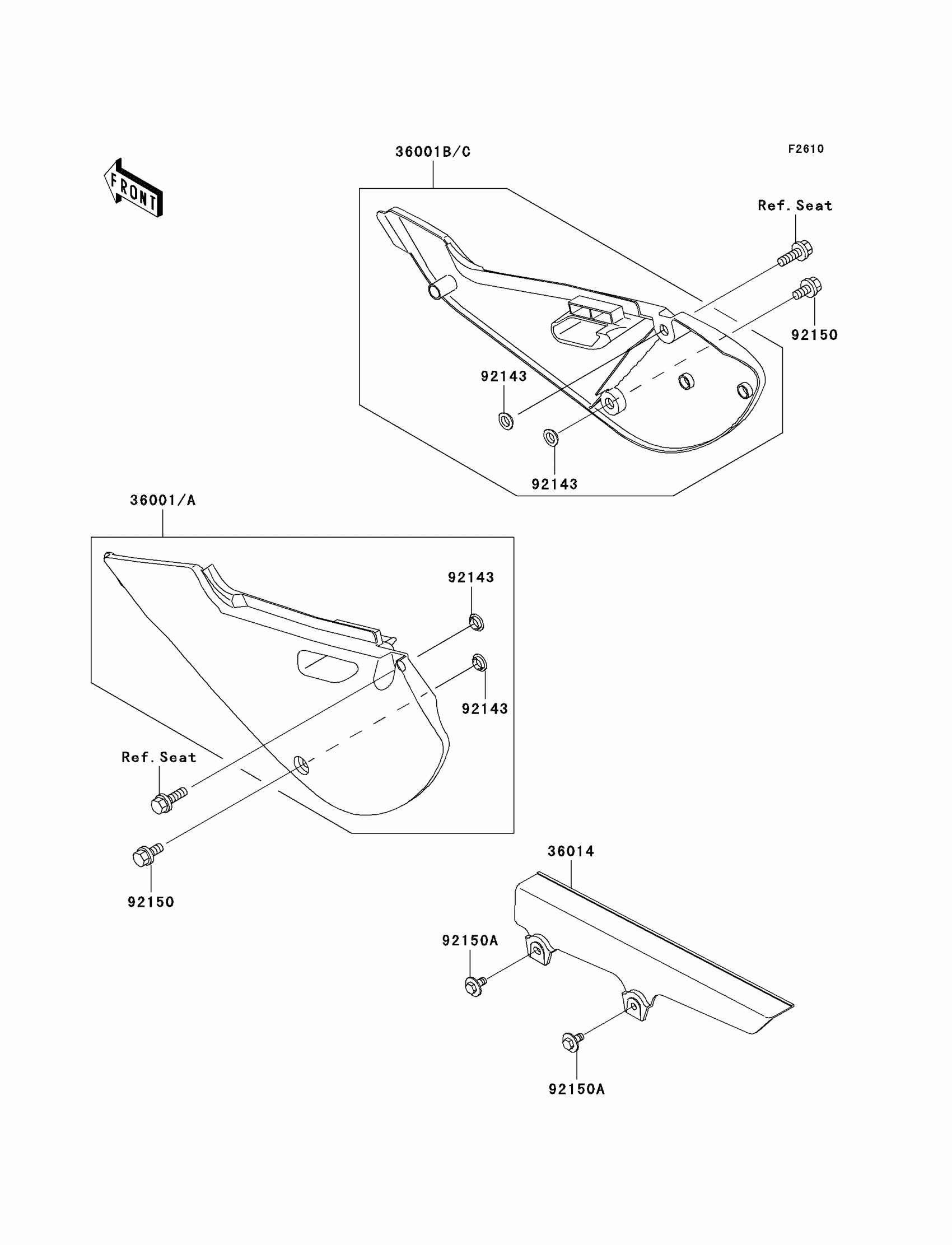

Kawasaki KLX110 Side Covers/Chain Cover Diagram

Description

Price

36001A

COVER-SIDE,LH,L.GREEN

36001-0204-290

$44.77

36001B

COVER-SIDE,LH,B.GRAY

36001-0204-67A

$44.77

36001D

COVER-SIDE,RH,L.GREEN

36001-0205-290

$44.77

36001E

COVER-SIDE,RH,B.GRAY

36001-0205-67A

$44.77

36014

CASE-CHAIN

36014-1258

$65.72

53066

SEAT-ASSY,BLACK+GRN+BLK

53066-0719-49D

$270.03

53066B

SEAT-ASSY,BLACK+GRY

53066-0719-73E

$270.03

92150

BOLT,FLANGED,6X14

92150-1689

$3.94

92152

COLLAR

92152-0789

$4.25

92153

BOLT,6X20

92153-0502

$2.80

92154

BOLT,FLANGED,6X14

92154-2867

$3.94

92154A

BOLT,6X20

92154-7217

$2.80
