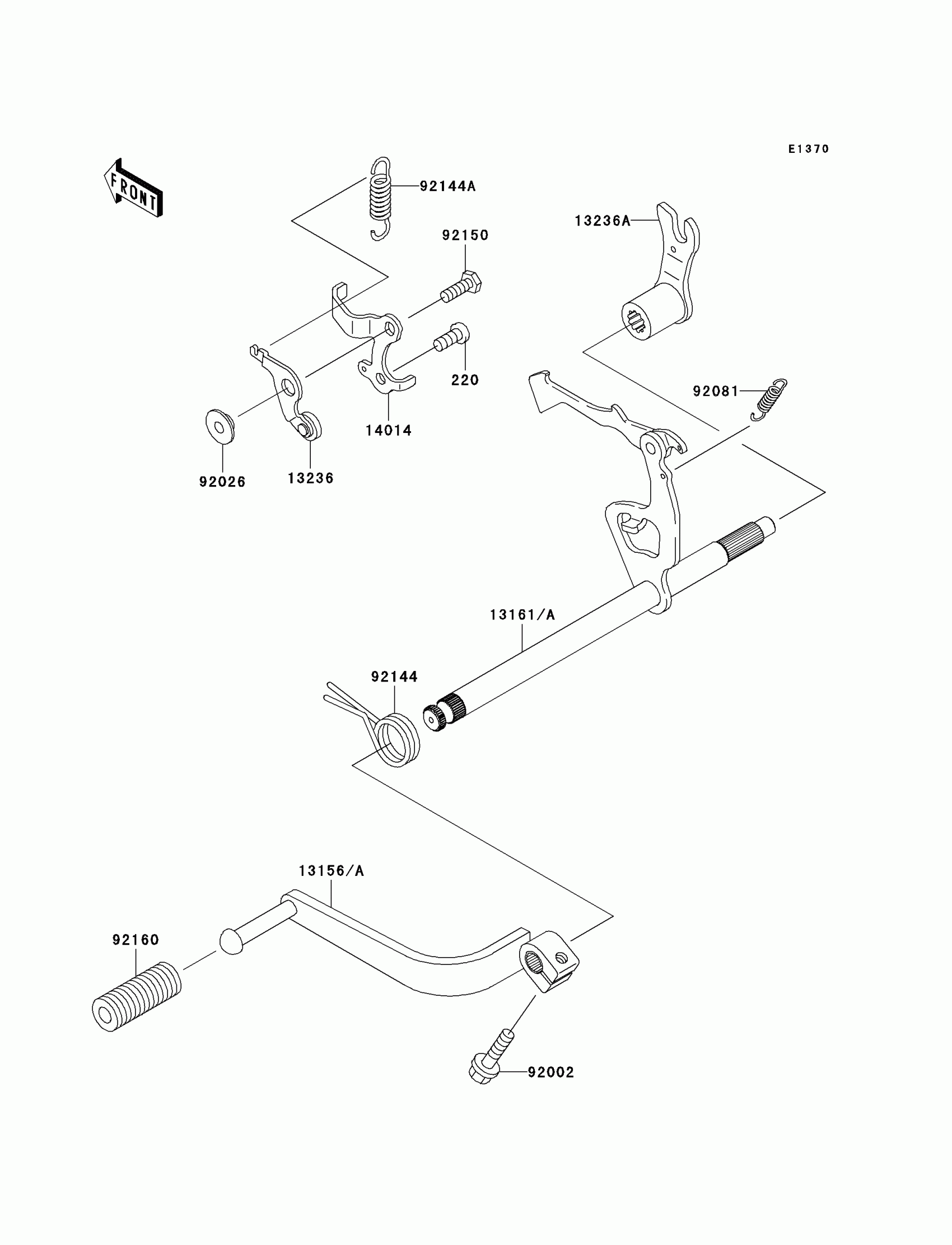

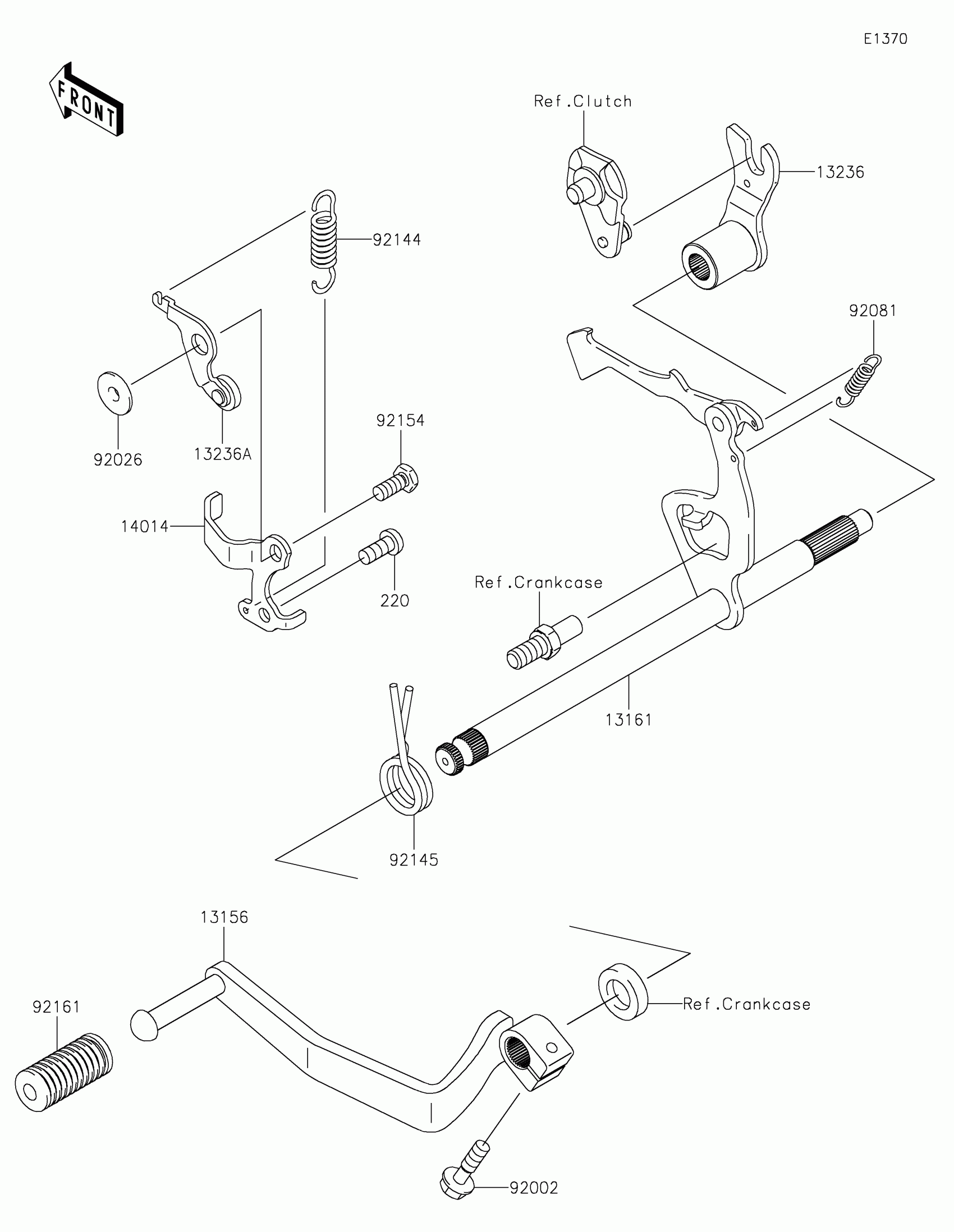

Kawasaki KLX110 Gear Change Mechanism Diagram

Description

Price

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

13156

LEVER-CHANGE,PEDAL

13156-0039

$57.74

13161A

LEVER-COMP-CHANGE SHAFT

13161-0019

$78.21

13236

LEVER-COMP,POSITION

13236-1256

$9.21

13236A

LEVER-COMP

13236-1288

$8.55

14014

PLATE-POSITION

14014-1118

Unavailable

92002

BOLT,6X20

92002-1237

$4.31

92026

SPACER

92026-1217

$5.52

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92144

SPRING,CHANGE SHAFT RETURN

92144-1107

$8.79

92144A

SPRING

92144-1590

$4.82

92150

BOLT,6X14

92150-1626

$5.88

92160

DAMPER,CHANGE PEDAL

92160-1036

$5.05
