2005 Kawasaki KLX110 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

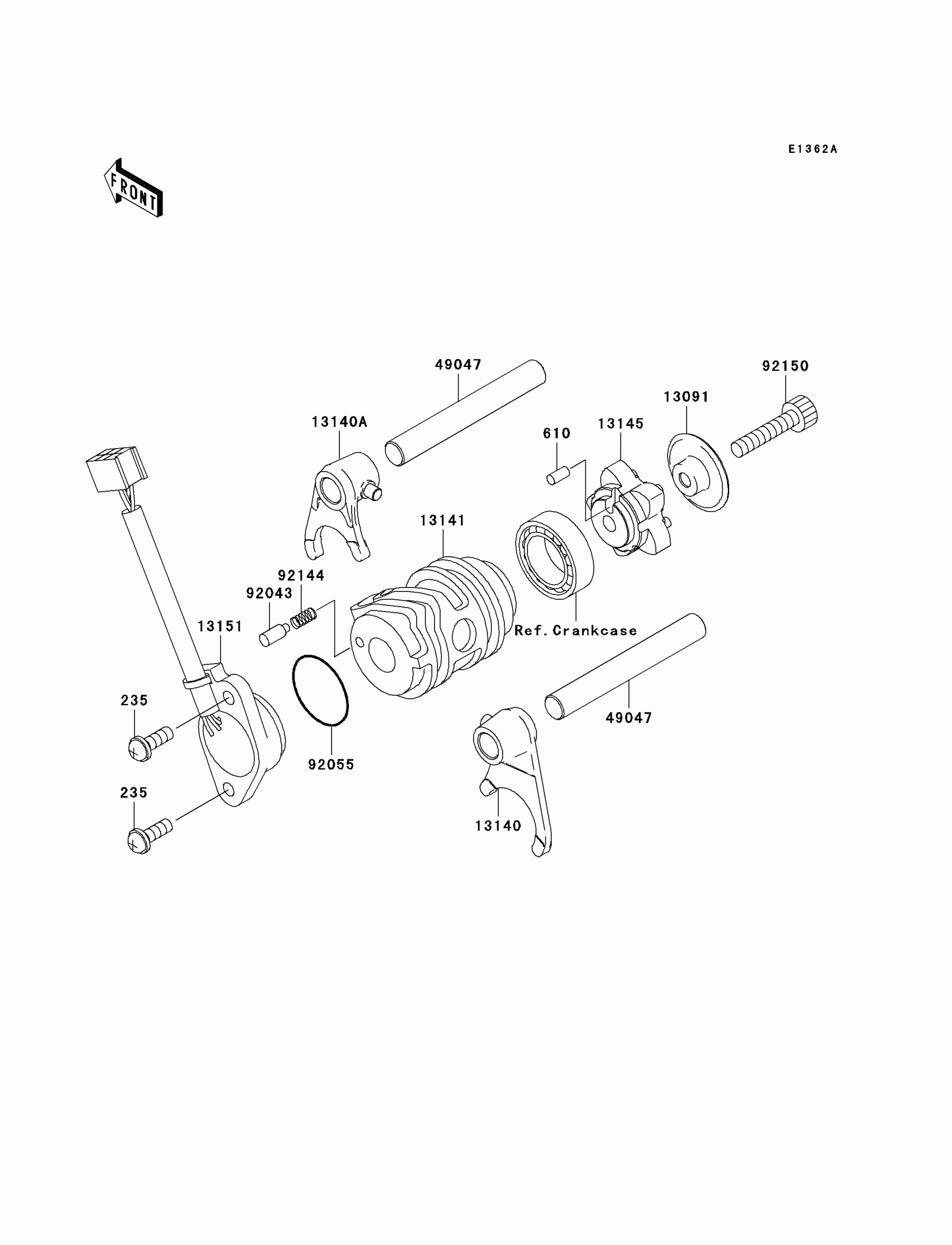

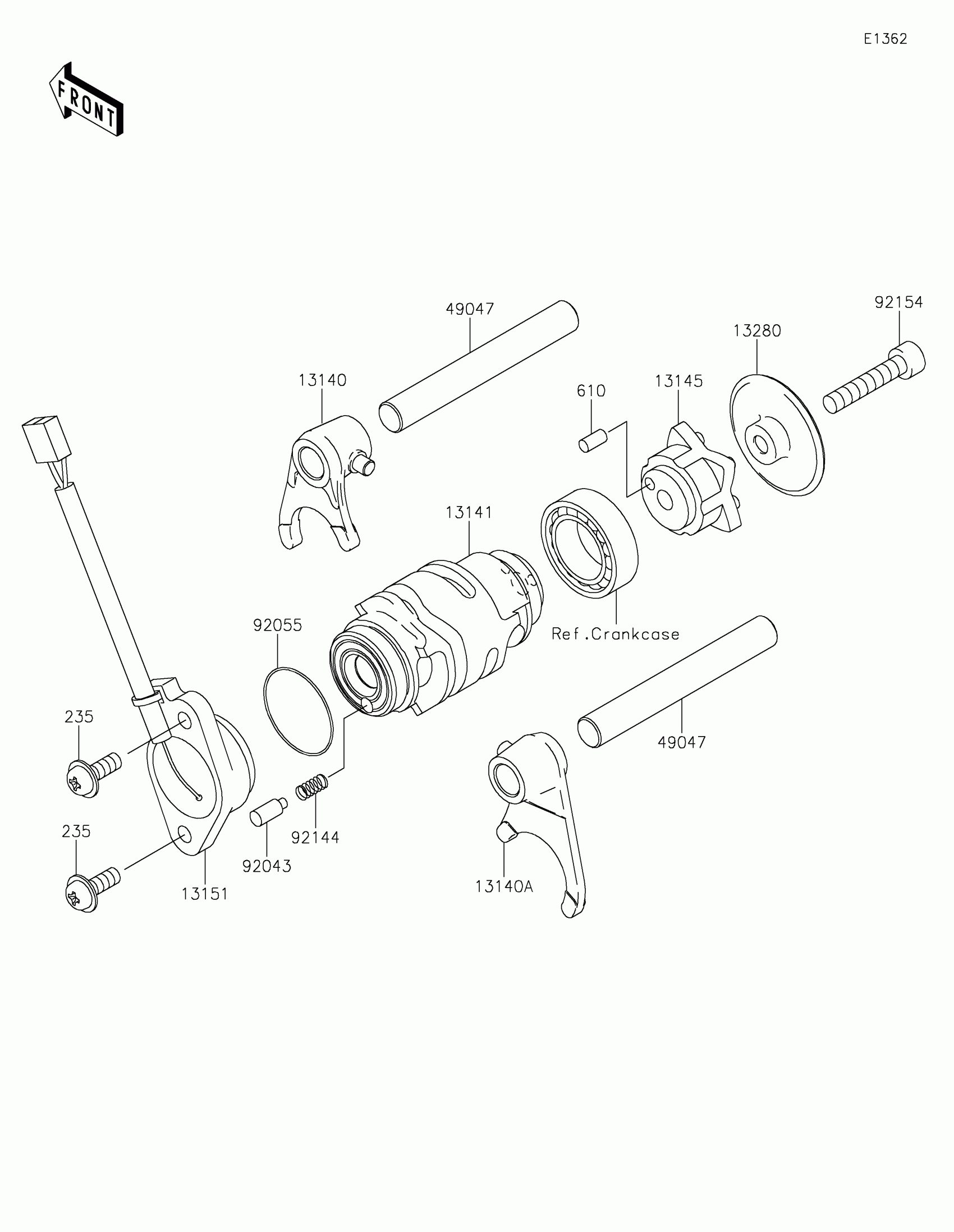

2005 Kawasaki KLX110 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

235

SCREW-PAN-WP-CROS

235B0514

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock

13091

HOLDER

13091-1086

1
Out of stock

13140

FORK-SHIFT

13140-1263

1
Out of stock

13140A

FORK-SHIFT

13140-1289

1
Out of stock

13141

DRUM-CHANGE

13141-1226

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1093

1
Out of stock

13151

SWITCH-COMP

13151-1082

1
Out of stock

49047

ROD-SHIFT

49047-1058

1
Out of stock

92043

PIN

92043-1385

1
Out of stock

92055

RING-O,27.7X2.4

92055-091

1
Out of stock

92144

SPRING

92144-1245

1
Out of stock

92150

BOLT,SOCKET,6X30

92150-1433

1
Out of stock
